3-Axis Vibration Test Systems

Applications:

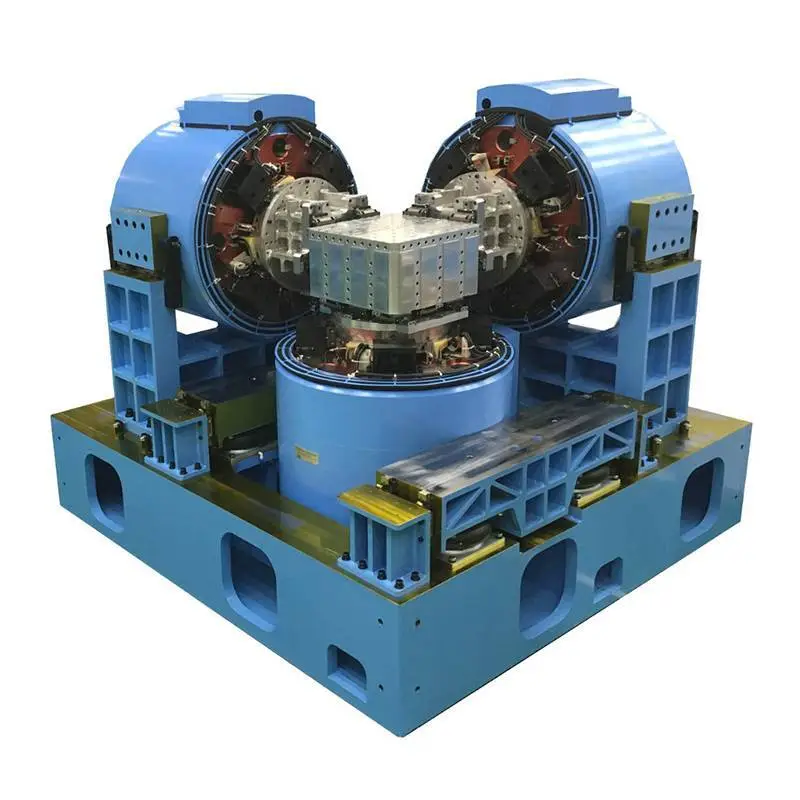

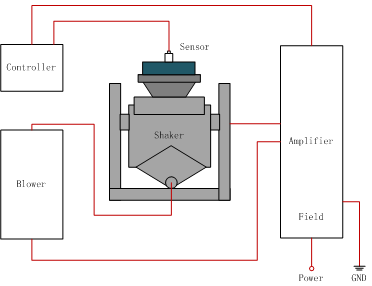

Haida's uniquely-designed Hydrostatic Bearing System minimizes cross-talks among all the axes and also makes the 3-axis Vibration Generators compact.The Systems are capable of 3-axis simultaneous excitation; horizontal 2-axis (X&Y) and vertical 1-axis (Z), simulating 'More Real-world Vibration'. In addition to simultaneous excitation, 3-axis Vibration Test Systems have been used for sequential tests of 3 axes thus contributing to time saving and troublesome labor elimination as no vertical & horizontal tables handling and also no specimen unloading & loading are needed.

3-Axis Vibration Test Systems 5

Test standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIB, BS, etc.

Test standard:

RTCA-DO-160G - Environmental Conditions and Test Procedures for Airborne Equipment section
SAE J1211-Handbook For Robustness Validation Of Automotive Electrical/Electronic Modules
IEC62660-2 (Secondary lithium-ion cells for the propulsion of electric road vehicles -
UN 38.3.4.3 Recommendations on the transport of the dangerous goods /Manual of Tests and Criteria
IEC 62281 Safety of primary and secondary lithium cells and batteries during transport
IEC60068-2-64 Environmental testing - Test Fh: Vibration, broadband random and guidance
IEC60068-2-6 Environmental testing - Part 2-6: Tests - Test Fc: Vibration,(sinusoidal)
IEC60086-4 Primary batteries –Part 4: Safety of lithium batteries
UL-1642 Standard for safety lithium batteries
ISO16750-2 Road vehicles —Environmental conditions and testing for electrical and electronic equipment
ISTA6-AMAZON.COM- SIOC Ships in Own container (SIOC) for Amazon.com Distribution Shipment
ISTA6-AMAZON.COM- Over Boxing e-commercial Fulfillment for partial delivery shipment
MIL-STD-810 Environment engineering considerations and laboratory tests

Specifications:

System Model	Max. Force Output		Max. Accele- ration	Max. Velo- city	Max. Displace- ment	Fre- quency Range		Table Size	Mov- able Mass	Max. Pay- load	Power Re- quired	Cooling System
System Model	Sine kN (kgf)	Sine kNrms (kgfrms)	m/s²(G)	m/s	mmp-p	Hz	Hz	mm	kg	kg	kVA	[m³ / min] [L/min]
HD-G826	2.9(300)	1.8 (180）	72（7.3）	1	26	1500	2000	320×320	41	50	23	Air(24)
HD-G826	4.9 （500）	3.5 （360）	117（12）	1	26	1500	2000	320×320	41	50	33	Air(24)
HD-G826		3.5 （360）	49（5）		51	1000	1500	400×400	91	100
HD-G826		3 （310）	35（3.6）			800	1000	600×600	140	100
HD-G826		2.5 (260)	24（2.4）			500	700	800×800	210	200
HD-G826		2.5 (260)	19.6(2）			350	500	1000×1000	260	200
HD-G826	9.8 （1000）	6.8 （700）	239（24）	1.2	26	1350	2000	320×320	41	100	50	Air(24)
HD-G826		6.8 （700）	108（11）		51	1000	1500	400×400	91	100
HD-G826		5.8 (600)	70（7.1）			800	1200	600×600	140	100
HD-G826		5.8 (600)	47(4.8)			700	1000	800×800	210	200
HD-G826		4.9 (500)	37（3.8）			350	500	1000×1000	260	200
HD-G826		4.9 (500)	30（3.1）			300	500	1200×1200	320	300
HD-G826	19 （2000）	13.7	280（28）	1	26	1200	2000	320×320	100	200	106	Air(66)
HD-G826		11.4 (1160)	127(13)		51	800	1200	500×500	150	200
HD-G826		9.5 (970)	83(8.5)			500	1000	800×800	235	300
HD-G826			54(5.5)			350	500	1000×1000	365	500
HD-G826			40 (4.1)	0.9		300	350	1200×1200	485	500
HD-G826			32 (3.3)	0.9		250	350	1500×1500	615	500
HD-G826	29 （3000）	20.3	420 (42)	1.1	26	1200	2000	320×320	70	200	144	Air(75)
HD-G826		（2070） 17.4 (1780)	196 (20)		51	800	1200	500×500	150	200
HD-G826		14.5 (1480)	127 (13)			500	1000	800×800	235	300
HD-G826			80 (8.2)			350	500	1000×1000	365	500
HD-G826			61 (6.2)	0.9		300	350	1200×1200	485	500
HD-G826			48 (4.9)	0.9		250	350	1500×1500	615	500
HD-G826	49 (5000)	29.4 (3000)	337 (34)	1.3	51	800	1000	500×500	145	300	250	Water(695)
HD-G826		24.5 (2500)	204 (21)	1.3		700	900	800×800	240	300
HD-G826			171 (17)	0.9		350	500	1000×1000	285	500
HD-G826			75 (7.7)			250	350	1500×1500	650	700
HD-G826			70 (7.1)			200	350	1800×1800	850	1000
HD-G826	63.7 (6500)	37.8 (3860)	386 (39)	1.4	51	800	1000	500×500	165	300	300	Water(830)
HD-G826		37.8 (3860)	289 (29)	1.4		700	800	800×800	220	300
HD-G826		31.5 (3220)	223 (22)	1		350	500	1000×1000	285	500
HD-G826			100 (9.8)			250	350	1500×1500	660	700
HD-G826			71 (7.2)			200	350	1800×1800	900	1000

Dimensions for reference only

OVER-THE-ROAD TRAILER SIMULATION

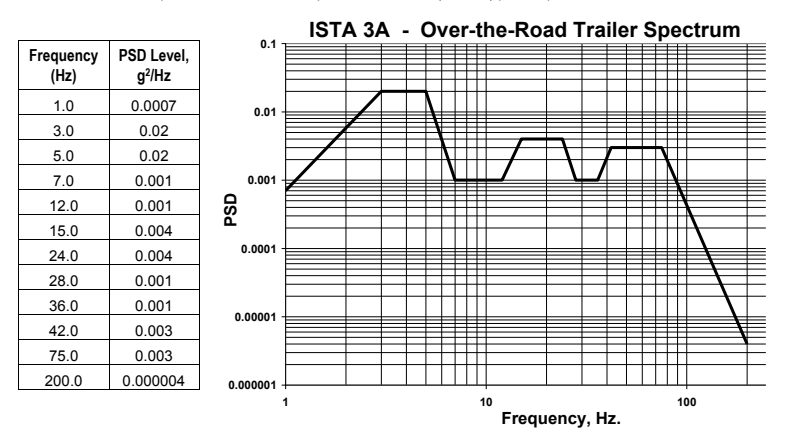

The following breakpoints are for an Over-the-Road trailer typical for parcel delivery movement and shall be programmed into the vibration controller to produce the acceleration yersus frequency profile (spectrum) with an overall Grms level of 0.53 (see below). The theorefical stroke required to run this vibrafiun profile is 47.12 mm (1.855 in) peak to peak:
