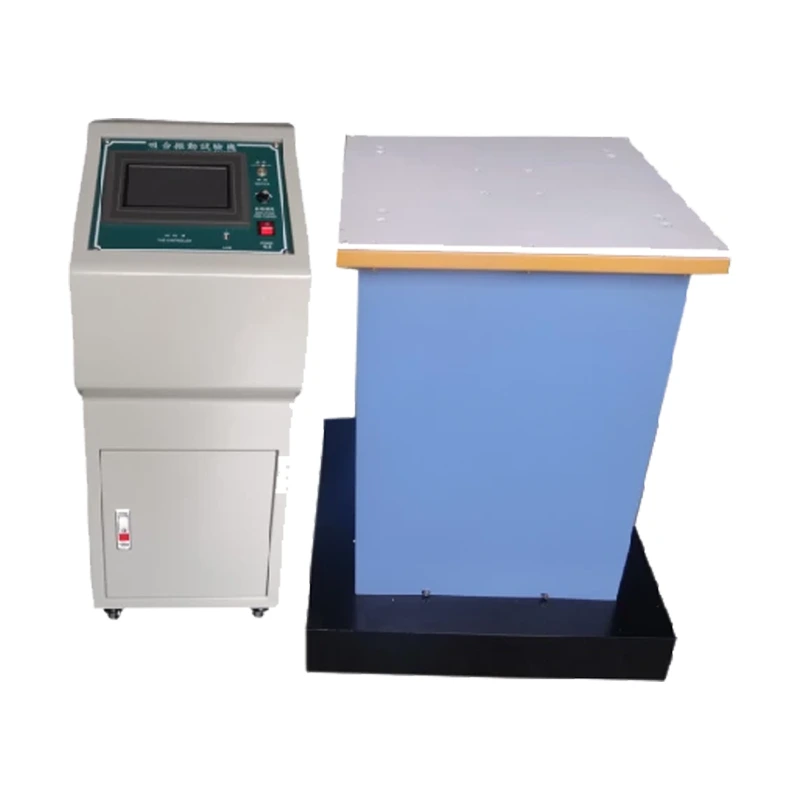

Electromagnetic Vibration Table HD-G809-500
ELECTROMAGNETIC VIBRATION TABLE
EQUIPMENT DETAILS
A. Up & Low Amplitude Adjustor
B. Right & Left Amplitude Adjustor
C. Front & Back Amplitude Adjustor
D. Power: machine power switch
E. USB: for input test data; please refer USB download instruction
F. Touch screen controller
Item | Specification |
Machine dimension | 500*500mm |
Max. Loading | 0~10kg |
Vibration direction | Up and down; right and left; front and back (switch automatically) |
Amplitude | 0~5mm (random) |
Sweep frequency | 1—600Hz (adjustable; can be customized to 3000Hz) |
Maximum acceleration | 10G |
Function | frequency adjustable; programmable; time control |
Accuracy | 0.1Hz |
Programmable function | 1~600Hz Group 1 – 8 can set different frequency and time, cyclic |
Vibration waveform | Sine wave (half wave / full wave) |
Time control | Adjustable, unit: seconds |
Output | To connect U Flash Dish for output curve graph |
Power | 220V; 50Hz; 0.75KW |
Test Method | the frequency of 10-55Hz, the amplitude of 0.35mm, each direction of the frequency sweep cycle for 10 times. After testing the electrical performance OK |
