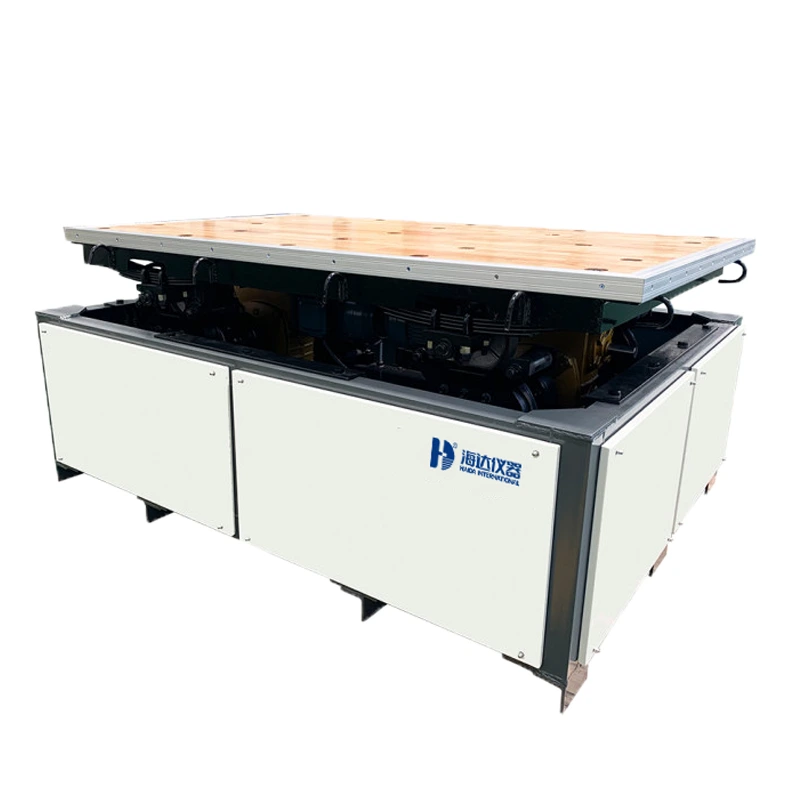

Transportation Simulation Vibration Testing Machine

The simulated level three highway bump test bed is suitable for highway transportation acceleration simulation tests of products transported by trucks to determine whether the products can adapt to the expected transportation vibration environment.

Model:

HD-A521-5

Inquiry

Write a Review

Product Description

Transportation Simulation Vibration Testing Machine is suitable for level three highway transportation acceleration simulation tests of products transported by trucks to determine whether the products can adapt to the expected transportation vibration environment. Highway transportation acceleration simulation test refers to using the simulation platform to increase the test value of simulated transportation vibration to shorten the transportation simulation test time and conduct tests that are consistent with the statistical characteristics of cumulative fatigue damage in the automobile transportation environment. It can meet QJ815.2 test standard.

Product Specifications

Item	HD-A521-5
Maximum test weight range (including fastening fixtures, etc.)	0-600kg
Maximum test product size	1500*1500mm (length and width)
Test table size	1700*1700mm
Test frequency range	10-30HZ
Vibration form	Broadband random vibration, sine wave (can simulate transportation highway conditions)
Acceleration instantaneous value probability density function	Approximately normal distribution
Simulated road surface	Intermediate pavement of third-class highways and medium and low-grade pavements of fourth-class highways
Amplitude range	≥0.35mm
Height of center of gravity of specimen	≤700mm
Equipment continuous operation time	6 hours
Strengthening level	1:1
Control method	PLC touch screen interface control
Dimensions	Based on the actual size of the equipment
Equipment weight	About 2000kg
Voltage	Three-phase five-wire system 380V±10% 50Hz
Use power	6KW
Environmental conditions	Environmental conditions: temperature 0-40℃, humidity ≤90% (25℃)

Product Characteristics

The simulated level 3 road bump test bed is to reproduce the vibration environment in the test when a simulated car is driving on the road. The method of frequency band approximation is used to simulate broadband random vibration. Each sub-band contains a main natural frequency and satisfies the power spectrum of the sub-band. The vibration parameters of the transportation platform are consistent with the actual road spectrum, and the rotation time of the test bench is equal to the actual time.

Products Advantages

Substantive yet chic, we create magnificent designs that exudes grandeur without compromising on comfort and reliability. Our thoroughly engineered products combine convenience with sophistication.

Transportation Simulation Vibration Testing Machine 4

Best Quality

We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.

Transportation Simulation Vibration Testing Machine 5

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

Transportation Simulation Vibration Testing Machine 6

QC Team

We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.

High-End Look

When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

Road Transportation Simulation Vibration Testing Machine

This vibration tester mechanically simulates the vibration environment of a car driving on the road and reproduces it in the laboratory. The design idea is based on statistics and using the principles of probability theory and stochastic control theory to design. At the same time, since the vibration in the up and down direction of the car compartment is broadband random vibration, it is difficult to reproduce the power spectrum mechanically. The idea of sub-band proximity is used to simulate broadband random vibration. Each sub-band contains a natural frequency (the natural frequency of the car). principle, and the power of each frequency band satisfies:

δi table = δi car

δi table is the root mean square value of the i-th frequency band of a point acceleration on the transport table;

δi car is the root mean square value of the i-th frequency band of a point acceleration on the car compartment.

The transportation simulation vibration test table mainly includes a Sandbox, Hanging spring, Frame, Working table, -Leaf spring, Drum wheel, Rubber wheel, Chain drive mechanism, Letterpress etc.

1. Sandbox; 2. Hanging spring; 3. Frame; 4. Working table; 5. Leaf spring; 6. Drum wheel; 7. Rubber wheel; 8. Chain drive mechanism; 9. Letterpress

Structural diagram of ROAD TRANSPORT SIMULATION TE
