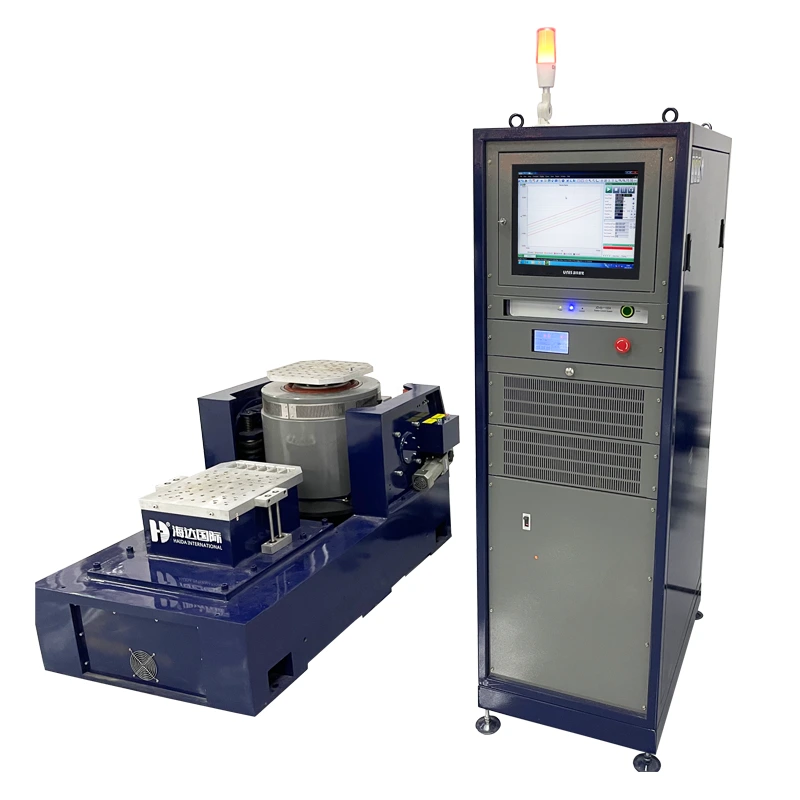

Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.
Test standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIB, BS, etc.
Shaker (Model# EDM-2000) | ||
Sine force (peak) | 50kN | |
Shock force (peak) | 100kN | |
Frequency range | 1~4000 Hz | |
Displacement (continuous) | 100 mm | |
Max. Velocity | 2 m/s | |
Max. Acceleration | 100 G ( 980 m/s² ) | |
Armature Diameter | 445 mm | |
1st order resonant frequency | 2,400 Hz | |
Allowable eccentric moment | >500 Nxm | |
Armature weight | 40 kg | |
HE/ST screw dimension | M10 (metric) | |
Axial vibration isolation frequency | <3 Hz | |
Max. Payload | 300 kg | |
Magnetic flux leakage | ≤1 mT | |
Dimensions (L×W×H, unpacked) | 1,330x860x1,250 mm | |
Weight (unpacked) | 2,500 kg | |
Installation | Rubber mat (anchor bolts required) | |
Power Amplifier (Model# VSA-H323A) | ||
Amplifier output | 30 kVA | |
SNR | >65 dB | |
Rated output voltage | 120 Vrms | |
Amplifier efficiency | > 90% | |
Dimensions (L×W×H, unpacked) | 800x900x2,100 mm | |
Weight (unpacked) | 500 kg | |
Blower (Model# PBL-W30) | ||
Air volume | 0.46 m3/s | |
Power | 7.5 kW | |
Air duct diameter | 200 mm | |
Air pressure | 8.8kPa | |
Installation | Able to connect to ceiling (up to two 90 degree bends), max 20’ run | |
Horizontal Slip Table (Model# 30ST-600M) | ||
Dimensions | 600x600 mm | |
Thickness | 45 mm | |
Frequency limit | 2,000 Hz | |
Effective mass | 54 kg | |
Note: 1. High pressure oil-film bearing is used for better uniformity. | ||
Vibration Controller and Accelerometer | ||
Vibration Controller VT-9008-4 | 4 Channel Vibration Controller with Sine and Self Calibration. | |
Accelerometer EA-YD-181 | 100mV/g, Range: 50g, Working Freq.: 1-10kHz, Weight: 11gram, with 10ft low noise cable | |
Other supported functions/accessories | ||
Environmental chambers | Supported | |
Mobile devices | Customizable | |
Insulation boards | Customizable | |
Fixture | Customizable | |
Working environment of the system | ||
Temperature range | 0-40℃ | |
Humidity range | 0~90% , no condensation | |
Power requirements | 380V/3ph/50Hz, 40kVA | |
Compressed air pressure | 0.6 Mpa | |
