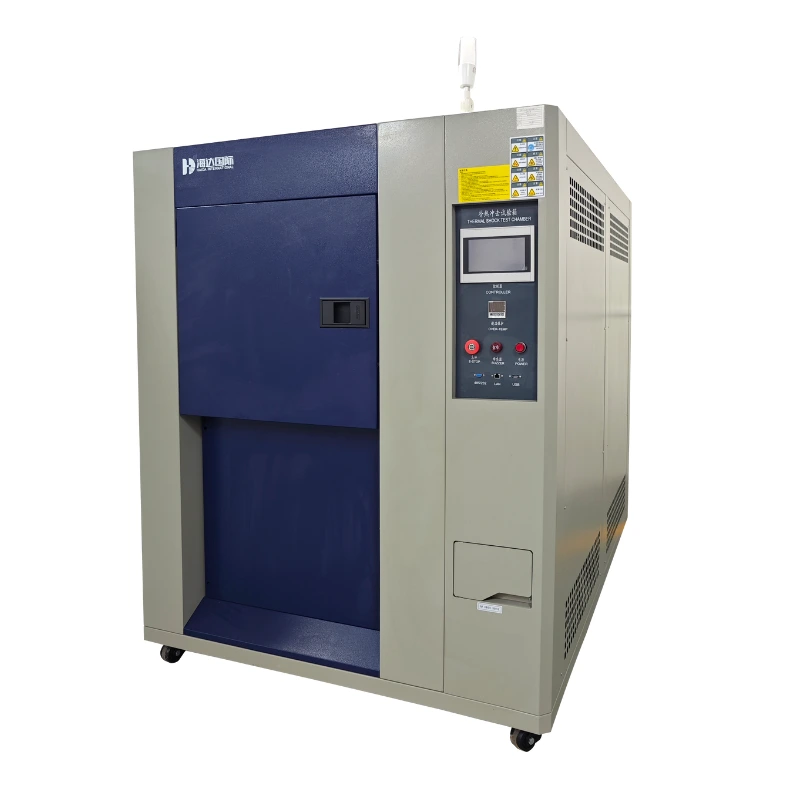

HD-E703 Thermal Shock Chamber Three-Box 1

HD-E703 Thermal Shock Chamber Three-Box 2

HD-E703 Thermal Shock Chamber Three-Box 3

HD-E703 Thermal Shock Chamber Three-Box 4

HD-E703 Thermal Shock Chamber Three-Box 5

HD-E703 Thermal Shock Chamber Three-Box

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-E703

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

Product Description

Thermal shock chamber is divided into high temperature area, low temperature area and test area three parts, each area is a unique insulation structure, so doing hot and cold impact test.

High-temperature impact test or low-temperature impact test, the maximum time is up to 9999 minutes, the most cycle time is up to 9999 times. The machine can be automatically or manually cycle the impact or selectively set the two areas or three areas to impact of hot and cold. It used binary cooling system that is very effectiveness for cooling, the cooling system is divided into the air-cooled and water-cooled. It also can be connected with a computer, but the record instrument is only for optional purchase. Color LCD touch-control operation interface with Chinese and English, easy to operate.

Product Specifications

Our specialists can help you find the perfect thermal shock chamber.

Model	HD-E703-50	HD-E703-100	HD-E703-150
Basket internal dimension	350W400D350Hmm (50L)	500W450D450Hmm (100L)	550W450D550Hmm (150L)
External chamber dimension	1230Wx1830Dx1270Hmm	1380Wx1980Dx1370Hmm	1420Wx2000Dx1400Hmm
High temperature chamber preheating range	Ambient to +160℃,<35min
Low temperature chamber precooling range	Ambient to -50℃,<70min
Test temperature	-40 to +150℃
Temperature deviation	3~5℃
Lifting switch time	≤10 seconds
Test duration	>30mins in high temperature chamber / low temperature chamber
Test hole for cable routing	Diameter 50mm on the left of chamber attach a silicone plug
External chamber material	High quality electrolytic steel plate spray with powder, antirust
Internal material	SUS#304 stainless steel
Thermal insulation material	High quality superfine glass fiber
Refrigerant	R404A / R23
Cooling method	Water cooling
Power supply	Three phase, 380V, 50Hz

Products Advantages

Substantive yet chic, we create magnificent designs that exudes grandeur without compromising on comfort and reliability. Our thoroughly engineered products combine convenience with sophistication.

HD-E703 Thermal Shock Chamber Three-Box 7

Rapid Temperature Cycling

The chamber quickly alternates between extreme temperatures, simulating harsh environmental conditions.

HD-E703 Thermal Shock Chamber Three-Box 8

Precision Control

Equipped with advanced control systems for highly accurate temperature and humidity settings, ensuring reliable and repeatable test results.

HD-E703 Thermal Shock Chamber Three-Box 9

Accelerated Testing Efficiency

Significantly reduces testing time by quickly exposing products to thermal shock, allowing faster identification of potential material weaknesses.

High Capacity & Flexibility

Designed to accommodate various product sizes and testing volumes, offering flexibility for different testing scenarios and batch sizes.

WHY CHOOSE US?

Product Characteristics

Our Thermal Shock Test Chamber offers precise and reliable temperature cycling, designed to simulate extreme environmental conditions. Built with durable stainless steel and advanced insulation, it ensures high performance and longevity, providing valuable insights for product reliability and quality assurance.

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.

Protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…

HD-E703 Thermal Shock Chamber Three-Box 14

Control interface will display alarm reason and provide check methods, machine has emergency stop button.

HD-E703 Thermal Shock Chamber Three-Box 15

Cold and hot shock temperature recover within 5 minutes.

Product Details

The Thermal Shock Test Chamber includes essential components like high-precision temperature sensors, powerful compressors, efficient heat exchangers, and advanced thermal insulation.

Programmable Controller

Inner Chamber

Cooling System (Brand: German Bock)

Product Application

The is test chamber offers rapid, precise temperature shifts to rigorously test product durability under extreme conditions. Essential for industries demanding high reliability, it enhances quality control, reduces failure rates, and ensures your products meet the highest standards in performance and resilience.
