High Temperature And Humidity Vibration Test Bench

Description:

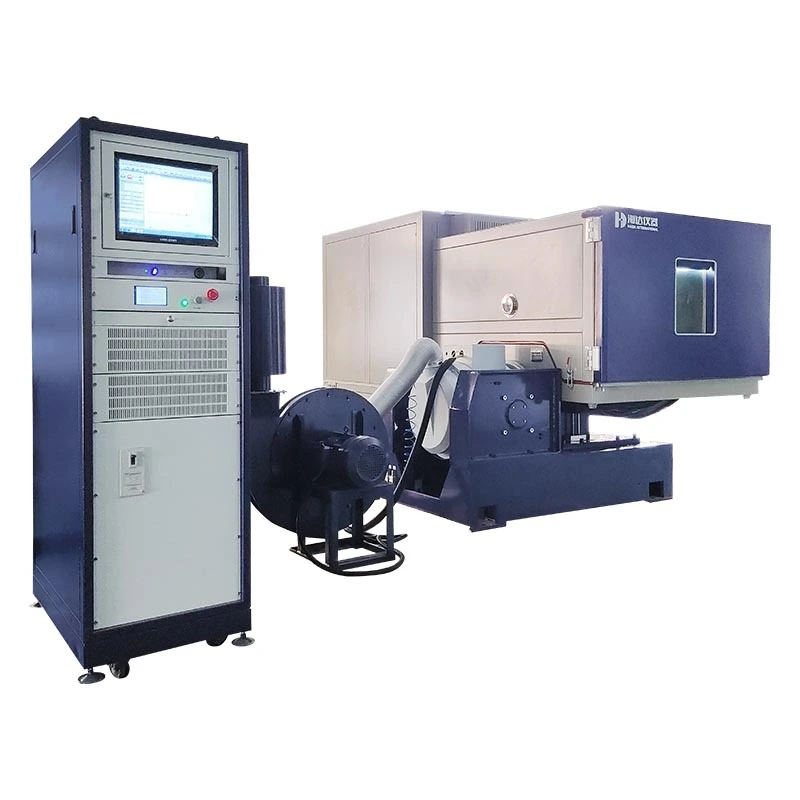

Temperature Humidity Vibration Test Chamber is suitable for comprehensive environmental reliability test and test of aerospace products, information electronic instruments, materials, electrical, electronic products, and various electronic components under the comprehensive environmental conditions of temperature and humidity, Reliability Qualification Test (RQC), Product Reliability Acceptance (PRAT), Routine Test, Stress Screening Test (ESS), etc.

It is suitable for high temperature, low temperature, high and low temperature cycle tests, as well as constant damp heat and alternating damp heat tests on new energy auto parts products, and can realize comprehensive tests of temperature-humidity factors.

Features:

1.The up and down movement of the equipment is realized through the lifting mechanism

2.The sealing of the connection between the chamber base and the vibration table surface, the interface connection between the test box and the vibration table surface is processed into a square bellows shape with high and low temperature resistant organic composite materials

3.Equipment configuration sealing plate, quick connection

4.It has high strength, high flexibility, high sealing, high thermal insulation performance, and can withstand high and low temperature and humidity for a long time. It adopts double-layer sealing and has good sealing effect.

5.When the test chamber is connected to the vibration table, the test chamber will automatically move horizontally to the connection position of the vibration table, and then lift to the interface connection position according to the required height, and then the temperature and humidity vibration test can be carried out with the test chamber.

Product Parameters:

Item	Specification
Internal chamber dimension (WDH)	100010001000mm
External chamber dimension(WDH)	120030003800mm approx.
Temperature range	-40 ℃~ 150℃
Temperature fluctuation	±0.5℃
Temperature uniformity	2℃
Cooling speed(temp. Range: 85C~-40C)	5℃/min in average; without loading
Heating speed(temp. Range: -40C~85C)	5℃/min in average; without loading
Humidity range	10~98%RH (please refer to the below humidity curve)
Humidity fluctuation	±3%RH
Internal chamber material	SUS#304 stainless steel, mirror finished
External chamber material	Stainless steel with paint spray
Cooling method	Water-cooled
Controller	Programmable control temperature and humidity Can set different parameter for cyclic test
Insulation material	50mm high density rigid Polyurethane foam
Heater	Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor	German Bock compressor
Refrigerant	Environmental friendly refrigerant R449A/R23
Temperature sensor	PT-100 dry and wet bulb sensor
Observation window	Tempered glass
Testing hole	2 units with diameter 100mm, for cable routing
Sample tray	SUS#304 stainless steel, 2pcs
Safety protection device	Protection for leakage Over-temperature Compressor over-voltage and overload Heater short circuit

Vibration System:

Vibration Shaker
Max. Sine Force	3200Kg.f peak
Max. Random Force	3200Kg.f r.ms
Max. Shock Force	6400Kg.f peak
Frequency Range	2~3000Hz
Displacement (p-p)	51 mm
Max. Velocity	2m/s
Max. Table Acceleration	100g (without loading)
Armature Diameter	335mm
Effective Armature Mass	30kg
HE/ST screw dimension	17×M10
Max. Load Capacity	300kg
Magnetic Leakage	＜10gauss
Axial Vibration Isolation Frequency	<2.5Hz
Power	Three-phase, 380V, 50Hz
Machine dimension	845mm790mm840mm; without expander table
Vibration controller system
Controller Hardware	No of input channels: 02 analogue channels ADC: 24-bit Resolution No of output channels: 01 DAC: 24-bit Resolution USB 2.0 communication port
Controller Software Modules	Random Vibration (1-5000Hz), Sweep Sine Vibration (1-5000Hz), Classical Shock, Resonance Search, Track and Dwell and Self Calibration
Other accessory	Test Computer: LENOVO M4500 Printer: HP 1020plus
Customer Responsibilities	Installing all utilities where required, including connecting utilities to the equipment Installation/rigging of equipment Completing any necessary building alterations including roof penetrations Customers responsible for any permits required by - local/state government

Horizontal Slip Table & Vertical Head Expander

Expander
Expander Size	600*600mm
Material	Aluminum alloy with hard anodized surface
Max. Work Frequency	Sine: 1000Hz Random: 2000Hz
Weigh	32kg
Slip Table
Table Size	600*600mm
Material	Aluminum alloy with hard anodized surface
Max. Work Frequency	Sine: 1000Hz Random: 2000Hz
Weight	35kg
Note: 1. High pressure oil-film bearing is used for better uniformity.

Power Amplifier & Blower

Power Amplifier
Max. Output Power	32kVA
Frequency response	＞65 dB
Output Voltage	120V
Conversion Efficiency	＞90%
Blower
Power	15
Air volume	0.66
Wind pressure	0.075kgf/cm2
Air horse diameter	200
