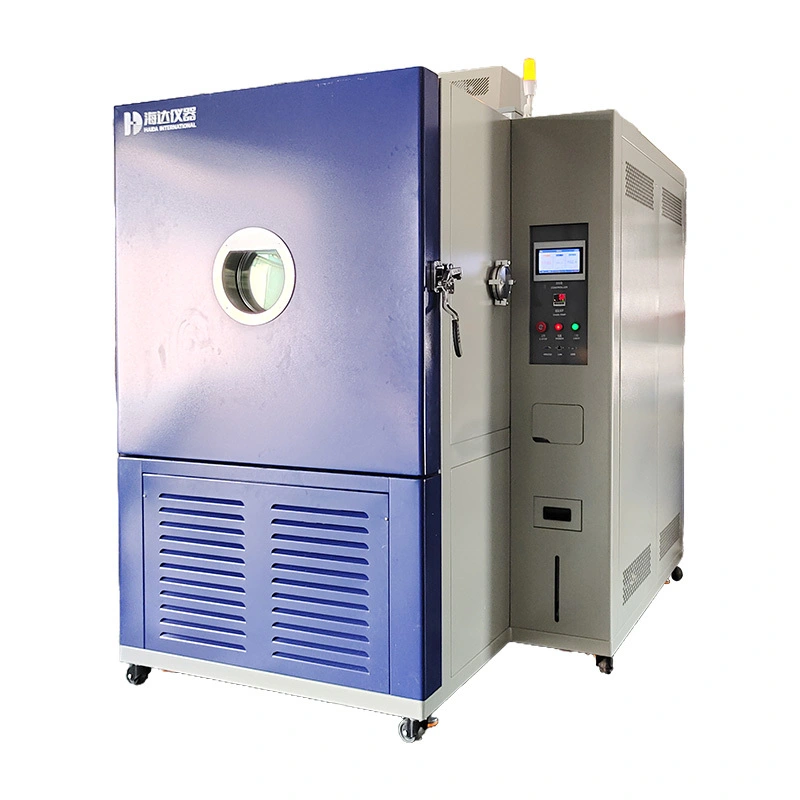

Altitude Test Chambers
Applications:
Altitude Test Chambers are suitable for the defense industry, aerospace industry automation components, auto parts, electronics, electrical components, plastics, chemical industry, food industry, pharmaceutical industry and related products simulate high altitude, high altitude (plateau areas) under the single or simultaneous action of high, low, low temperature and low pressure. ) climate to carry out storage, operation and transportation reliability tests, and the test piece can be energized at the same time to test electrical performance parameters.
![Altitude Test Chambers 4]()
Defense Industry
![Altitude Test Chambers 5]()
Electrical Components
![Altitude Test Chambers 6]()
Auto Parts
1. High performance and quiet operation
2. Space-saving designed for flush installation to wall
3. External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system
4. Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safety device to easy maintenance.
Low pressure altitude test chamber meet following standards:
GB2423.25-1992
GB2423.26-1992
GJB150.3A-2009
GJB150.4A-2009
GJB150.2A-2009
GJB5170.10-200
Internal dimension (W*D*H) | 1000*1000*1000mm |
Temperature range | -70~+100℃(no load);-55~+100℃(with load) |
Temperature fluctuation | ±0.5℃ |
Temperature uniformity | ±2℃ |
Ambient Humidity | ≤85%RH |
Cooling speed | ≥1℃/min in average (with loading 15kg,+85℃~-55℃ ) |
Heating speed | 1℃/min in average (with loading,-55℃~+85℃) |
Pressure Range | 101Kpa~1Kpa |
Pressure Accuracy | ±5% |
Pressure Control Method | Adjust temperature first, then pump vacuum |
Internal chamber material | Steel plate with plastic spray |
External chamber material | Stainless steel |
Cooling method | Water Cooler |
Controller | LCD touch screen, programmable control temperature and Pressure Can set different parameter for cyclic test |
Insulation material | Compound material without sweating, special for low pressure |
Heating Method | Electrical |
Compressor | Imported new generation with low noise |
Safety protection device | Protection for leakage Over-temperature Compressor over voltage and overload Heater short circuit |
