Walk In Environmental Test Chamber
Applications:
walk-in environmental test chamber ,as a climatic test chamber that may be configured to almost any large components . this walk in chamber can do Temperature/Humidity Cycling,Constant Temperature/Humidity,Extreme Temp / Humidity Testing, Fast Ramp Rate,Storage Testing,Altitude Testing,Vibration Integration,Solar Simulation etc.
walk-in environmental test chamber main for the industry of large parts, semi-finished and finished products of the temperature and humidity testing, such as computer terminals, auto parts. Room temperature and humidity is mainly composed of a control panel, distribution plate, base plate, wet blower, heater, humidifier, refrigerator and.
![Walk In Environmental Test Chamber 8]()
Automotive
![Walk In Environmental Test Chamber 9]()
Electronics
![Walk In Environmental Test Chamber 10]()
Electrical Appliances
![Walk In Environmental Test Chamber 11]()
Rubber & Plastic
1.Walk-in chamber has a big temperature / humidity range and can meet user’s entire requirement. It adapts to unique balance thermoregulation & humidifying way and can get a safety, precise temperature humidity environment. It has stability, balance heating, humidifying function and also can proceed in high precision, high stability temperature humidity control.
2.Walk-in test room is equipped with high precision intelligentized thermoregulator, temperature and humidity adapt LCD display control 7551 program instrument ( it also can use OYO-5461 according to user requirement), can choose the temperature humidity recode instrument.
3.Walk-in test room can choose computer for remote control according to the function
4.Automatic select the refrigerating circuit, the automatic control instrument can automatic choose operate refrigerating circuit’s function according to the temperature set value, and direct-on line starting refrigerating machine in high temperature condition which can cooling directly.
5.The interior door is equipped with big observation window which convenient for viewing the test status of specimen.
6.Walk-in room is equipped with advanced safety protection device --- residual current device; overheat protector, phase failure protector, water-break protector.
Meet the standard:
GB10592-89 Technical condition of high and low temperature test chamber
GB10586-89 Technical condition of damping test box
GB2423.1-2001 Test A High temperature test method
GB2423.2-2001 Test B Low temperature test method
Test method for constant hot and humid test of GB2423.3-93 test
GB2423.4-93 Test Db
Model | HD-705 |
System | Balanced Temperature & Humidity Control System |
Temp. range | -70°C~150°C |
Humid. range | 20 ~ 98 percent R.H. |
Temp. & Humid. accuracy | ± 0.3°C; ± 2 percent R.H |
Temp. & Humid. regularity | ± 1°C; ± 3 percent RH |
Resolution | 0.1°C, 1 percent, P.I.D control |
Heating up | -40°C ~ +100°C within 45 min |
Heating down | 20°C~ -20°Cwithin 40min |
Interior dimension(W×D×H) | 60×80×85cm |
Exterior dimension(W×D×H) | 120×135×175cm |
Interior material | Stainless steel plate(SUS304) |
Exterior material | Stainless steel plate(SUS304) |
Insulation | Rigid foam |

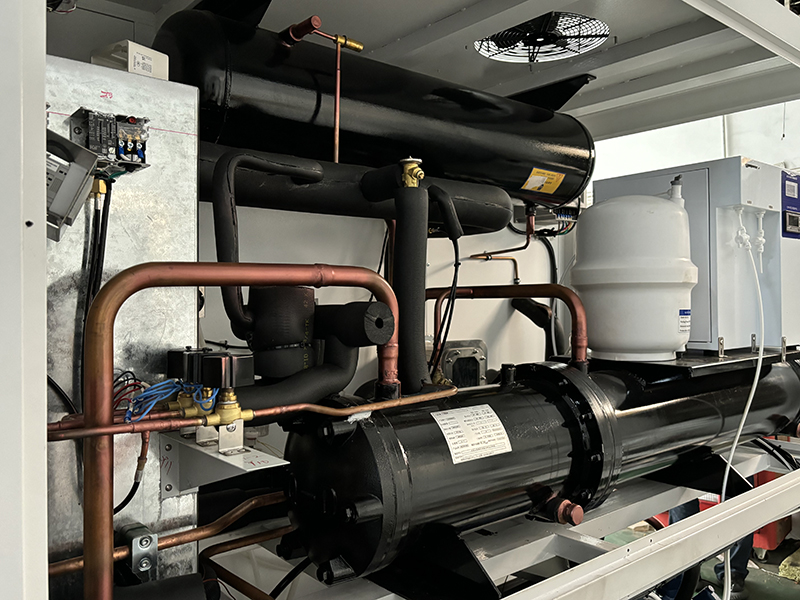

Refrigeration system | Air cooled, Hermetic compressor, single stage refrigeration system. |
Display | LCD |
Safety devices | No fuse breaker refrigerator over load relay, Refrigeration High pressure Switch, Over Temp, Protector, Protection relay, Protection fuse, Water Lever protector, Overheat protector, Alarm |
Accessories | Viewing window, Shelves (freely adjustable 2 pcs.), Cable port(Ø50mm)Chamber lamp. |
Weight | Approx. 400kg |
Power | AC220V±10 percent 50/60Hz |
![Walk In Environmental Test Chamber 12]()

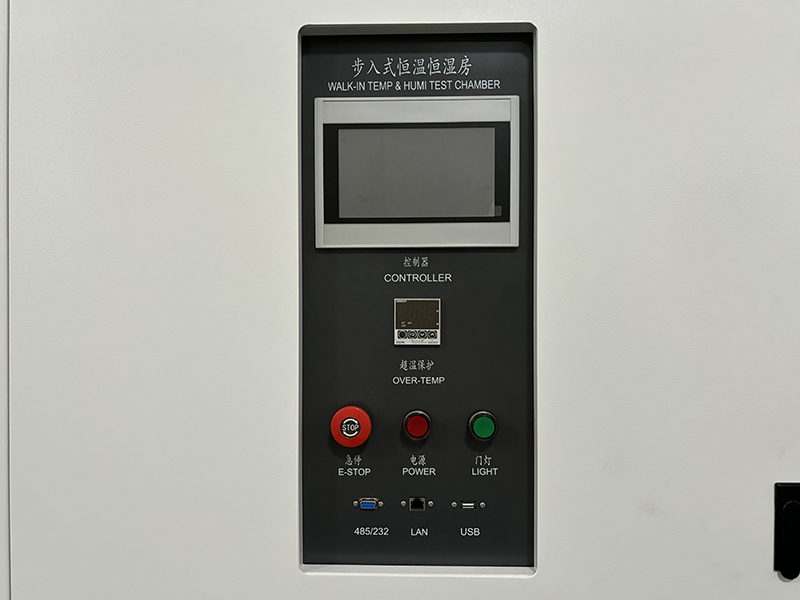

Control Panel
User Friendly Touch Screen Control (English Version)
![Walk In Environmental Test Chamber 13]()
Transformer
Increase DC voltage output to fit voltage of chamber usage
![Walk In Environmental Test Chamber 14]()
Long Axis Motor
Stable power output, energy saving, fast heat dissipation, copper coil has strong electrical conductivity
