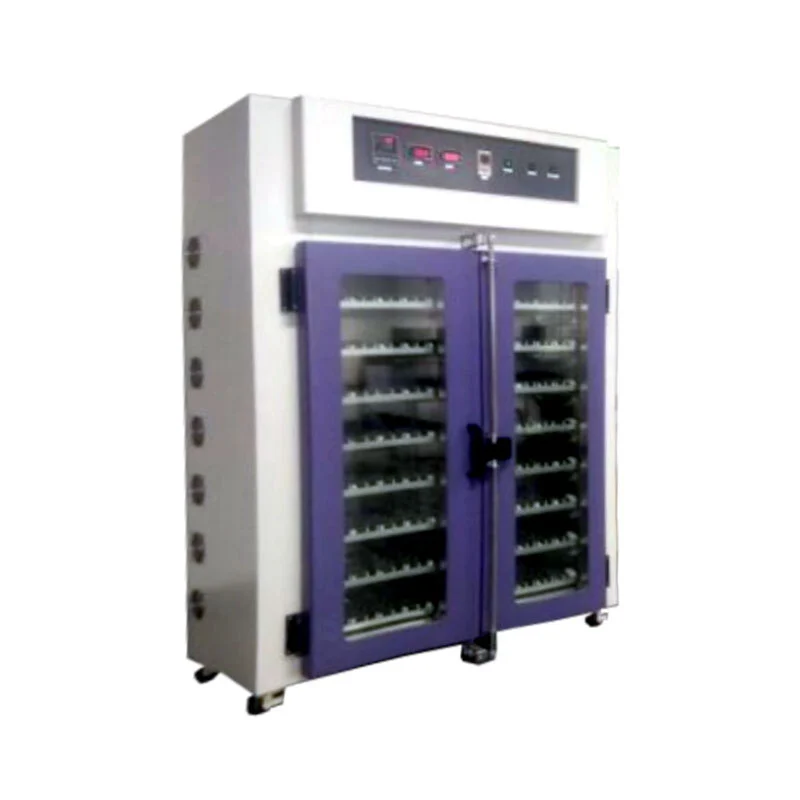

SATA High Temperature RDT Chip Test Aging Chamber

SATA High Temperature RDT Chip Test Aging Chamber

Control methods and features:

1、Performance： Balanced temperature control system (BTC), PID control SSR, so that the system of

The heat addition is equal to the heat loss, so it can be used stably for a long time.

2、Temperature range: RT+15℃～100℃

3、Temperature fluctuation：±0.5℃

4、Temperature uniformity：±2℃

5、Rate of temperature rise: 5℃/min (Room temperature ~ 100℃±2℃)

6、Time setting: 0~999H can be set arbitrarily

Machine sheet metal construction:

1、Material of the inner box: SUS # 304 stainless steel plate

2、Outer box material: cold-rolled steel plate, galvanized and anti-rust treatment, with high-grade resin baking paint coating

3、Insulation material: hard imported rock wool (Cecil 120K rock wool)

4. Heater: finned heat sink tubular stainless steel heater (Taiwan Taizhan nickel-chromium alloy wire)

Air supply circulation system:

1、Circulating motor 2 sets (Taiwan high-temperature motor)

2、Diameter Ø19 extended stainless steel shaft length 180mm

3、 10.5-inch multi-wing type high-temperature resistant wind wheel (special customized by the famous factory)

4、Adjustable side blowing air outlet and return air outlet with a protection net

Circuit control systems:

1、Temperature controller: original Taiwan LCD temperature controller

2、Screen display function: temperature setting (SV) and actual (PV) value directly displayed

3、Sensor: high precision Taiwan Songqi PT100 type temperature sensor

4、Temperature control: The output power is calculated by a microcomputer to achieve a high precision control effect

5、Timing function: 0-999H/M/S. With long time timing, constant temperature timing, the untimed selection switch and automatic stop function when time is up

Safety protection devices:

1、Temperature over temperature protection function

2、Motor over-current protection

3、Machine leakage protection

4、Machine phase failure protection

5、Fault not removed machine alarm
