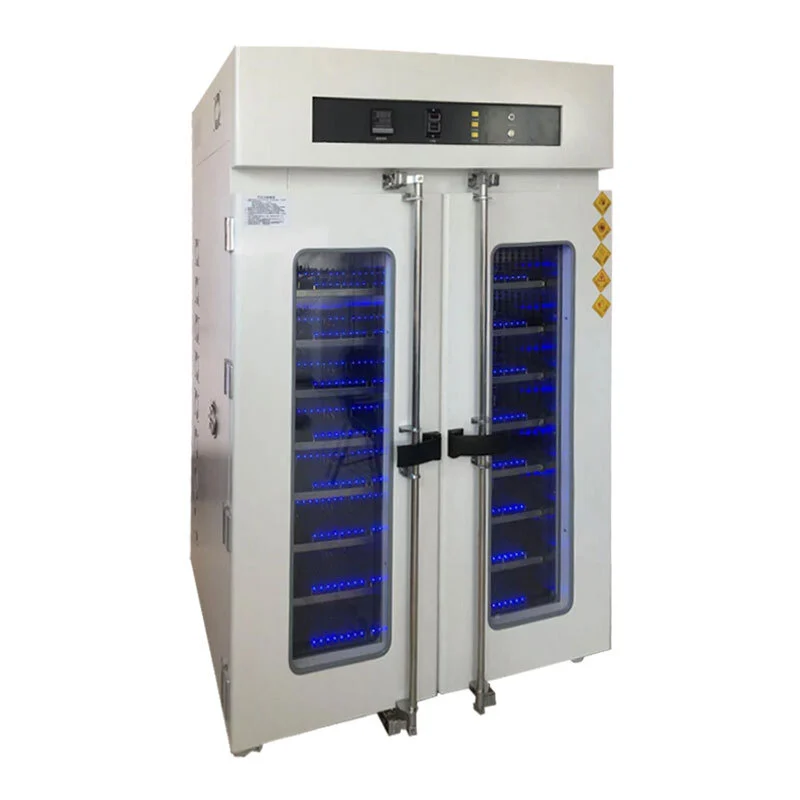

1664 Pcs BGA132RDT Test Aging Chamber

1664 Pcs BGA132RDT Test Aging Chamber

Aging cabinet control methods and features:

1、Performance： Balanced temperature control system (BTC), PID mode control SSR, so that the heating of the system is equal to the heat loss, so it can be used stably for a long time.

2、Temperature range: RT+15℃～100℃

3、Temperature fluctuation：±1℃

4、Temperature uniformity: no load ±2℃, with load ±5℃

5、Rate of temperature rise: 5℃/min (room temperature +5℃ and 100℃±2℃)

6、Time setting: 0~9999H can be set arbitrarily

Air supply circulation system:

1、Circulation motor 2 sets (Taiwan high-temperature motor)

2, diameter Ø19 extended stainless steel shaft length 180mm

3、 10.5-inch multi-wing type high-temperature resistant wind wheel (special customized by the famous factory)

4、Adjustable side blowing air outlet and return air outlet with the protection net

5、Cold air input in the duct, automatic pneumatic valve control

6、Over-temperature forced exhaust air blower forced exhaust device

Safety protection devices:

1、Temperature over-temperature protection function

2、Motor over-current protection

3、Electricity leakage protection

4, Phase loss protection

5, Power overload protection

6, Sound and light alarm
