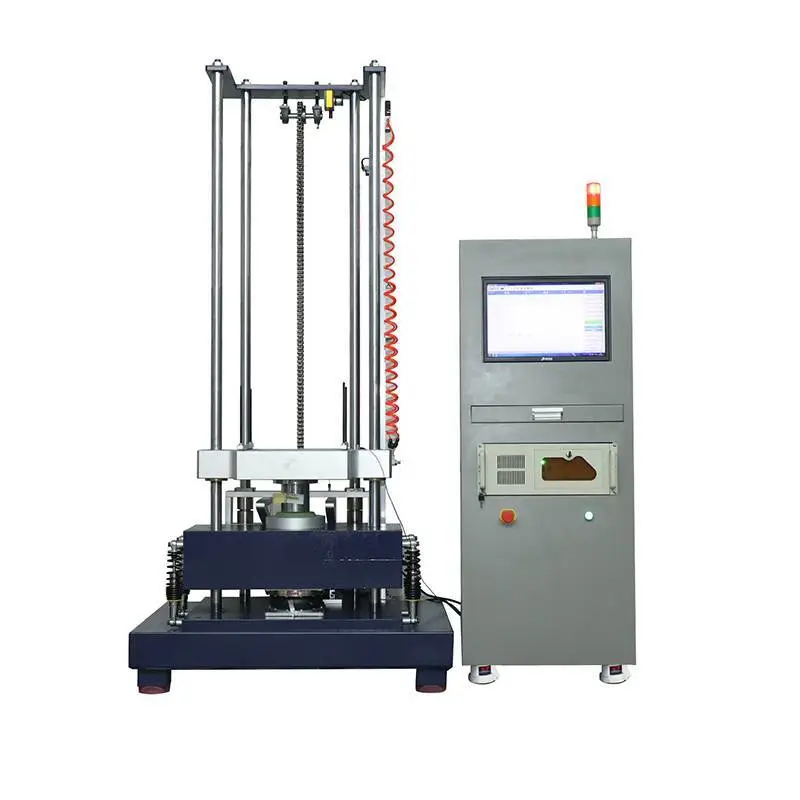

High Acceleration Shock Test System
Applications:
The impact test bench can be used for impact testing of test products, mainly for small specimens for higher impact acceleration testing. Assess the extent to which the test product withstands impact damage. Often used in environmental testing of electronic components, electronic circuit boards, etc. This test equipment complies with "Basic Environmental Test Specifications for Electrical and Electronic Products Ea: Impact Test Method" and "IEC68-2-27, Test Ea: Impact" and "MIF-STD202F “ Specification requirements for impact test.
![High Acceleration Shock Test System 5]()
Electronics
![High Acceleration Shock Test System 6]()
Aerospace
![High Acceleration Shock Test System 7]()
Vehicles
![High Acceleration Shock Test System 8]()
Defense
The size of the impact test bench is small, and the bench structure is carefully designed after finite element optimization analysis. The structure is strong and the frequency response is high. Through the high acceleration impact test, it can reach the acceleration duration of 0.3ms, and the impact half-sine wave conforms to the test specification.
Built-in anti-secondary impact device, the table body is equipped with high-efficiency damping device, and the impact height is digitally set and executed automatically.
Maximum load: | 100kg |
Table size: | 500mm×600mm |
Impact peak acceleration range: | Half sine wave: 150～6000m/s² |
Pulse duration: | Half sine wave: 0.5～30ms |
Impact waveform: | Half sine wave |
wave description difference | a) When the pulse duration is less than or equal to 3ms, the peak acceleration tolerance is ±20%; the pulse duration tolerance is ±15%; b) When the pulse duration is> 3ms, the waveform tolerance should be within the range specified by the standard. |
Speed variation tolerance | ±15% |
Standards compliant | Requirements of GJB150, GJB360, GB2423. |
Anti-secondary impact device | Adopt hydraulic braking device |
Dimensions of impact table body | (1000×750×2450)(mm) |
Weight of impact table: | 3600kg |
Power consumption: | 5.5KVA |
Working conditions: | A. Power supply voltage: 380V±10% AC50Hz |
| B. Ambient temperature: 0℃-40℃ |
| C .Relative humidity: ≤90% (25℃) |
| D. Surrounding environment: no corrosive medium, dry and ventilated, Electromagnetic field interference and strong vibration sources that affect normal operation. |
Gravity drop impact test bench body | 1 set |
Impact control measurement system | 1 set |
Acceleration sensor (including cable) | 1 piece |
Waveform generator | 1 set |
Connecting cable | 1 set |
Hydraulic system | 1 set |
FAQ:
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersales service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equipment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
