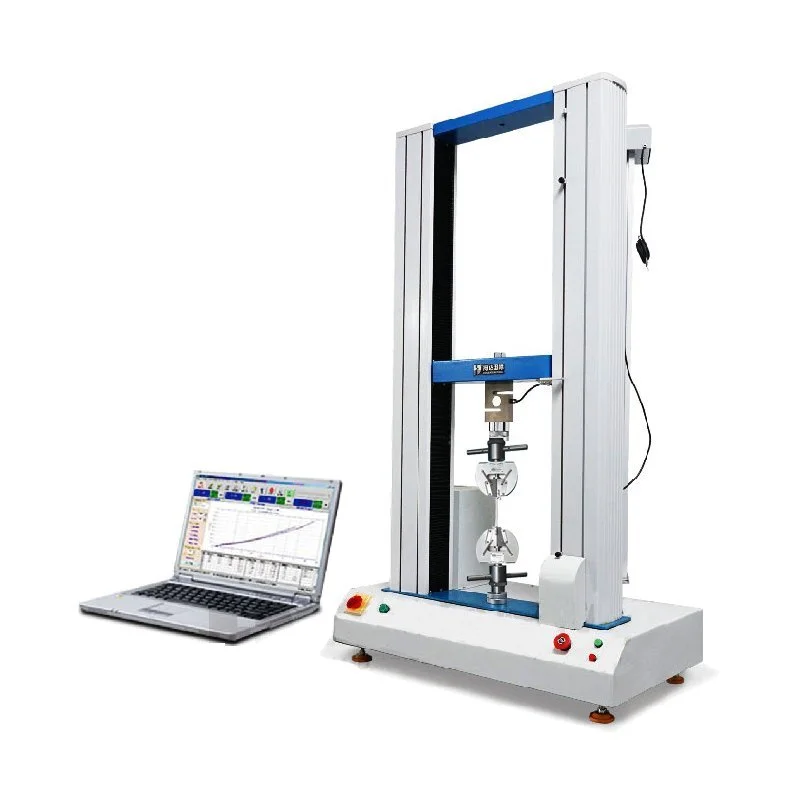

Tensile Test machine
Tensile Test machine
Product Description:
Tensile Test machine is designed to test a variety of materials tensile, compression, bending, tearing, peeling and other properties, including plastic, film, paper, non-woven fabrics, leather, felt cloth, adhesives, toys and medical products.
Tensile Test machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Features
1. universal testing machine can be applied to software platform: VC program can be run on a standalone installation software WINDOWS 98/2000 / XP system under.
2. A variety of purposes: a variety of materials tensile, compression, bending, shearing, tearing, peeling, low peripheral circulation, and creep tests.
3. Expansion force value: one device can simultaneously calibrate multiple sensors extends the test range.
4. Curve Optionally: choose the stress - strain, stress - elongation, force - time multiple curve - time, force - strain intensity.
5. curve comparison: a set of curves can test a variety of color overlay contrast.
6. Automatic storage: Test conditions and test results and other data can be automatically stored.
7. Report Format: Test report format flexible for the different requirements of different users.
8. enlarged: any period can be performed on the test curve analysis area can be enlarged.
9. Data Editor: You can test data editing, flexible application.
10. Effective selected: to be effective for a group of test data curve or not artificially selected.
11. range modes: full scale regardless of file that can support 0.2% to 100% of full load sensor.
12. Manual control: You can manually control the beam moves up and down.
13. Auto Return: move the crosshead automatically return to the initial test position.
Main Technical Parameter
Item | Description |
Max. Force | 2000 kg (20KN) |
Load cell | Germany brand load cell for high accuracy |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 1200mm including fixture |
Load cell Resolution | 1/250,000 |
Load Precision | ≤0.5% |
Test speed | 0.1~500mm/min (adjustable by PC) |
Test width | ≤400mm |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Speed tensile testing machine calibration:
1. First record the initial position of the cross arm of the machine, select the speed value on the control panel (using a straight ruler measuring standard cross arm stroke).
2. The starter while electronic stopwatch starts counting station for a minute, stopwatch arrival time while pressing the button to stop the machine, according to the stopwatch time record cross arm stroke value is the rate per minute (mm / min), observing the cross Tam stroke difference value and the ruler of the straight, and calculate the cross arm stroke error value should not exceed ± 1%.
Installation and adjustment:
1, the test machine from its packaging, check whether the crash test machine in transit, damage phenomena
2, the test machine on a sturdy platform or desktop, look for the standard instrument is making the instrument in a horizontal position.
3, check whether the supply voltage is AC220V, the voltage difference is not less than 5% of the standard voltage, the power cord must be grounded
Tensile Test machine views:
Software and Curves
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
