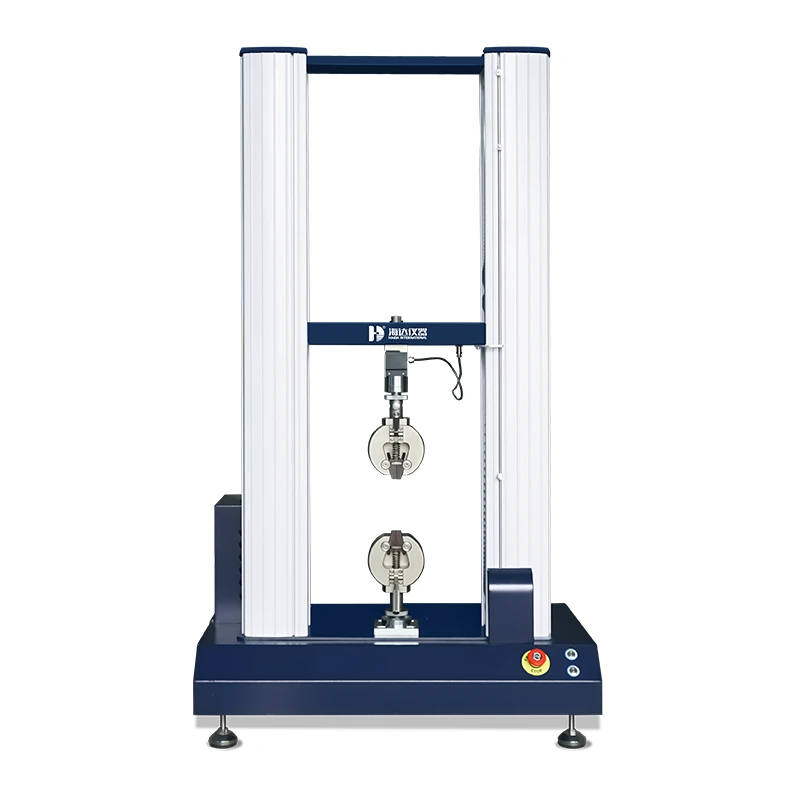

100KG-2T Tensile Test Machine HD-B604-S
100KG-2T Tensile Test Machine HD-B604-S
Product Description
This Tensile Tester is widely used in all kinds of hardware, metal,textiles, leather, clothing, insulators, wires and cables, rubber, footwear,terminals and other materials to test their tensile, tearing, peeling and compression resistance. , bending resistance, three-point bending resistance, etc.
Main feature:
1. High-precision, high-quality, cost-effective.
2. Professional application software, there are a variety of standard options, you can also compile their own test parameters. Chinese interface, easy operation.
3. The high-definition LCD screen control panel, direct input test parameters and display the force-displacement curve;
4. Can be directly connected printer, print the test results, and convenient.
5. For the tensile test, compression, bending, shear, slip properties. Trades involving metal, plastic, rubber, glass, steel, textiles, paper, yarn, wire, adhesives, films, food, composite materials.
Tensile testing machine software
These software products can be customized test parameters, data acquisition, data analysis, has a four-quadrant drive servo system or a material testing machine closed-loop control. They built various test standard data can improve test efficiency and enables users to create, access, and use of a powerful database of materials testing.
• using the latest database
• generate customized test reports
• Built-in SPC program ......
• You can call history data, and rebuild the curve
• callable data across different test modes
• user setting test parameters and test control
Main Technical Parameter
capacity | 100KG-2T； |
Motor | Panasonic 400W servo motor |
Screw | Ball screw rod |
control method | Computer control, windows mode operation |
speed | Adjustable speed（0.1-300mm/min；） |
stroke | Maximum stroke 1200mm (including fixture) |
Span | ≤400mm |
Load decomposition | 1/250,000 |
Load accuracy | ≤0.5% |
Unit switching | gf/kgf/N//kN/LBf/W/T |
Dimensions | （L*W*H）880*510*1490mm |
weight | About 150KG |
Standard | Iron plane fixture 1 set |
power | 1∮ AC 220V |
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
