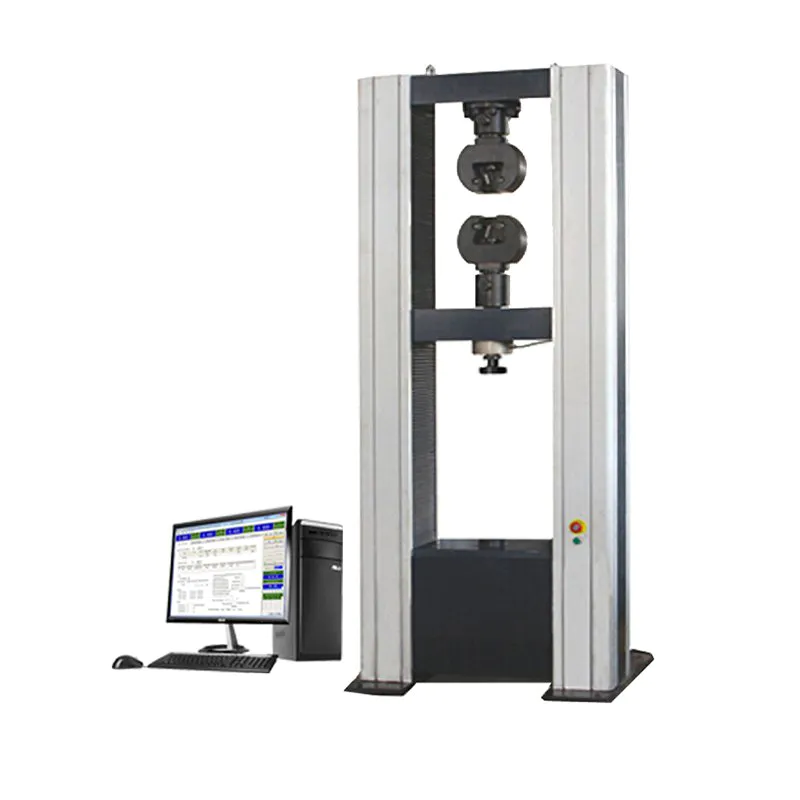

10T Universal Test Machine
This type universal testing machine have a strong power (10T max force and 2T, 5T are optional).10T test capacity universal test machine is particularly design to use for metal,steel,plastic pipe, etc with specialized sensors and fixtures. The data will be displayed on the computer so that the force values change during the test.
Application Standard:
Including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc
TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
High-tech, low noise
Humanized industrial design, easy to place and transport
The world famous brand core precision components
Security protection system
Valid test trip length (modifiable)
Item | Description |
Frame capacity | 10T |

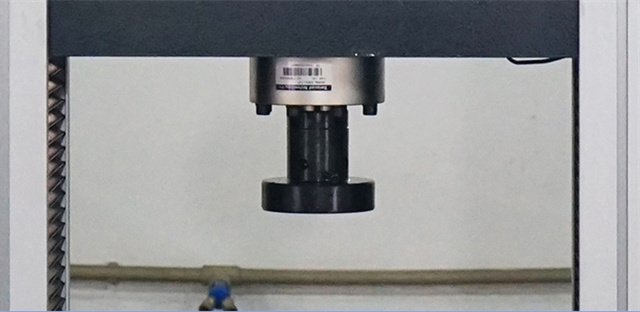

Load cell brand | USA brand transcell load cell for high accuracy 10T (2T, 5T are optional) |
Load accuracy | 0.5% F.S |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Vertical test space | 1100mm including fixture |
Horizontal test space | ≤400mm |
Test speed | 0.1~300mm/min (adjustable) |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Structure

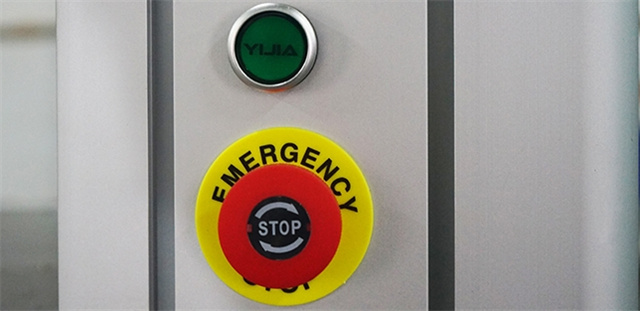

Photoelectric proximity switch and emergency stop button to avoid losses caused by operating errors
It can be equipped with various fixtures to meet the tensile, compression, bending, shearing, peeling and other tests of different materials
This machine is safe and reliable, with overload protection. overheating protection and leakage protection
