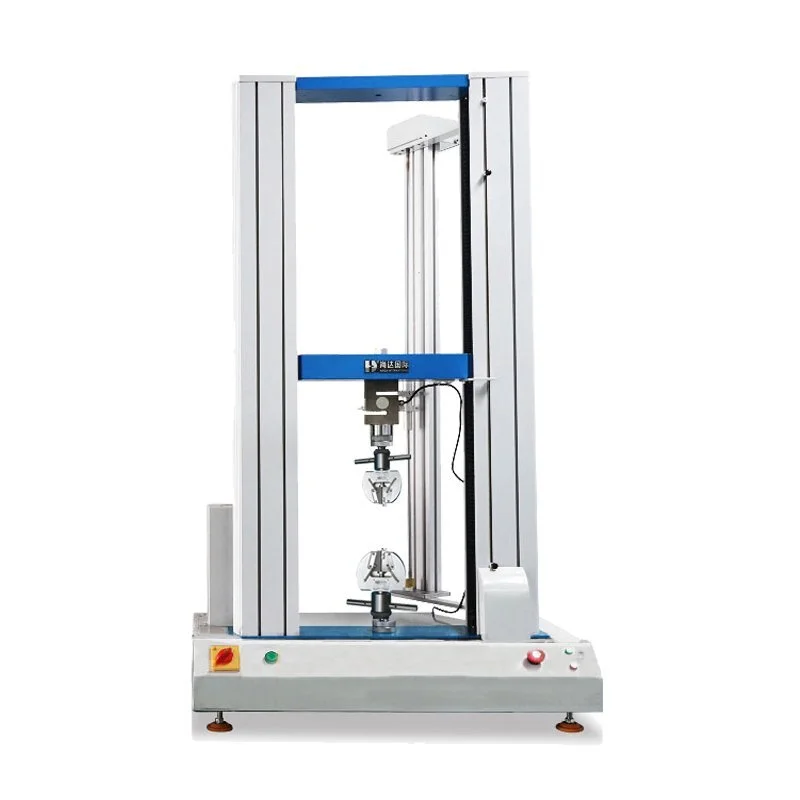

PC Control Tensile Tester
PC Control Tensile Tester
Product Description
PC Control Tensile Tester is used for a wide variety of materials for equipment static load, tensile, compression, bending, shear, tear, peel, such as mechanical performance test of mechanical strength testing machine, apply to the plastic sheet, pipe, profiles, plastic and rubber, wire and cable, steel, glass fiber and other materials of various physical and mechanical properties testing for material development，The operation is simple, the entire computer control, PC data analysis, data save and print, visual strength change in the testing process.
Standards:
inculding but not limited to ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113
Main Technical Parameter
Item | Description |
Max. Force | 2000 kg (20KN) |
Load cell | Germany brand load cell for high accuracy |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 1200mm including fixture |
Load cell Resolution | 1/250,000 |
Load Precision | ≤0.5% |
Test speed | 0.1~500mm/min (adjustable) |
Test width | ≤400mm |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Product Features:
Displacement resolution: 0.001mm
Control system: a, computer control with TM2101software;b, Back to origin automatically after the test, c, store data automatically or by manual operation
Motor system: ACMotor +Driver +High precise ball screw (Taiwan)
Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
User can set parameters of product materialsuch as length, width, thickness, radius, area and so on.
Many languages random switching: Simplified Chinese, Traditional Chinese, and English.
Applications:
1. Tensile Test
2. Compression Test
3. Peel Test
4. Bend Test
5. Tear Test
6. Shear Test
7. and customizable test properties
Installation and adjustment:
1, the test machine from its packaging, check whether the crash test machine in transit, damage phenomena
2, the test machine on a sturdy platform or desktop, look for the standard instrument is making the instrument in a horizontal position.
3, check whether the supply voltage is AC220V, the voltage difference is not less than 5% of the standard voltage, the power cord must be grounded
Software and Curves
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
