Paper Packaging Cant impact testing machine

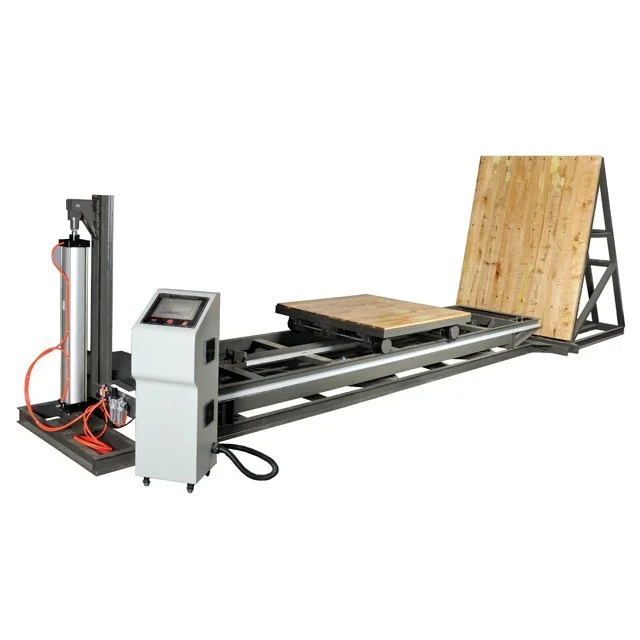

Inclined Impact Tester

Inclined impact tester is simulated the impact strength of packaging in the real circumstance of transportation, for example, the transportation of goods. This product is applied to the scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers and foreign trade or transportation departments.


1. Usage
Inclined impact tester is simulated the impact strength of packaging in the real circumstance of transportation, for example, the transportation of goods. This product is applied to the scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers and foreign trade or transportation departments.

2.Function and Characters:
1). Flexible positioning and electric pulley. It is easy to fix and achieve the changeable value of speed.
2). The height of pulley is relatively low so that is easy to fix the specimen; the strong impact resistance board can guarantee the fastness of the structure.
3). The pulley can be adjusted to be horizontal in order to fix the specimen for customer. The angle adjustment is driven by air cylinder which is flexible and convenient.
4). In order to keep the test staff completely safe, the tester is with remote control function.
5). Before testing, the customer only needs to fix the tester on the ground when stalling it, no other complicated operation.

3. The main technique parameters:
Model: 122type
Capacity (kg): 100, 200, 300, 600, 800
Overall dimension(mm): 72200×1800
Inclined board dimension (mm): 1600×2200,
Maximum slide length (mm): 2900 (can be designed accord to customer's requirement)
Impact velocity range (m/s): 1.3~2.6
Impact velocity error: ≤±5%
Pulley platform dimension (mm): 1220×1220,
Power Supply: Three phase 380V, 50/60Hz
Work environment: Temperature 0~40°C, Humidity ≤80% (no moisture condensation)
Control system: Micro-processor, single chip
Remark: Can be customized by the customers' requirements.
