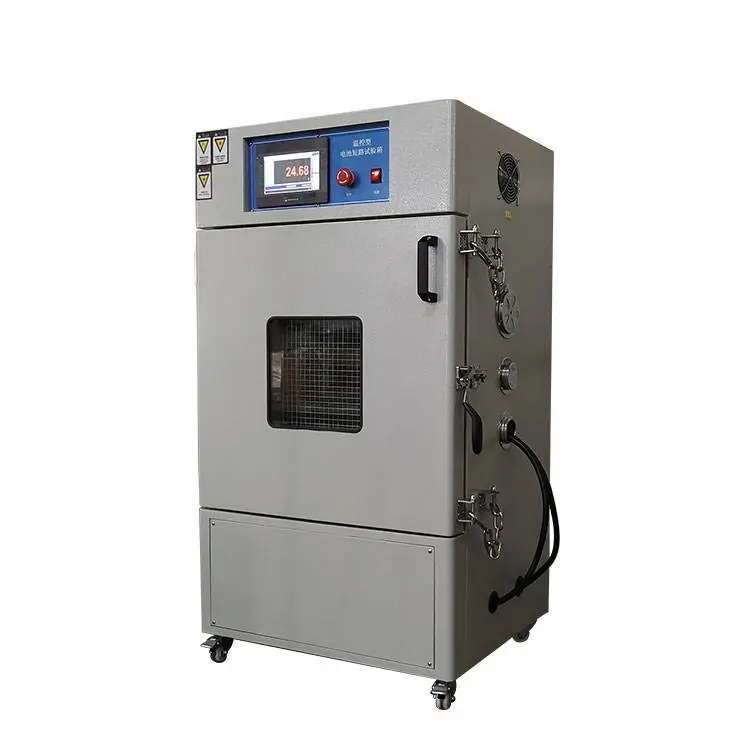

Battery Pack Short Circuit Tester
TEST PURPOSE
This machine is designed according with the requirements of various battery short-circuit test standards. According to the standard, the short-circuit device must meet the internal resistance of 80 ± 20mΩ to obtain the maximum short-circuit current required by test. In addition, the circuit design of the short-circuit device must also be able to withstand large currents impact.
We chose industrial-grade DC electromagnetic contactors, all-copper terminals, and internal copper plates to guide the flow. The wide and thick copper plates effectively improve the heat dissipation effect, make the high current short-circuit device safer, effectively reduce the loss of test equipment, and ensure the test data Accuracy.
TEST STANDARD
IEC62133; UL 1642:2012; UN38.3
STANDARD FEATURES
Item | Specification |
Internal Dimension | 500*500*500mm(W*D*H) |
External Dimension | 700*800*1530mm(W*D*H) |
Internal Material | SUS201 stainless steel plate, 1.2mm thick and affixed with Teflon; |
External Material | Paint treatment of cold-rolled steel sheet |
Observe Window
| 250*250mm |
Two layers of tempered glass | |
Transparent window with stainless steel mesh | |
Exhaust port | Diameter 100mm |
Pressure relief port | 200*200mm |
Door
| Single door design, the door is equipped with a safety limit switch The side is equipped with an explosion-proof chain Only close the door to operate the device to ensure the safety of personnel |
Testing Hole | There are two testing hole diameter 50mm, for cable connect. |
Control Mode | Key Type |
Temperature collection range | RT-1000℃ |
Temperature Acquisition Channel | Channel 1
|
Temperature Display Accuracy | ±0.5℃ |
Voltage collection range | 0-100V |
Voltage Acquisition Channel | Channel 1 |
Voltage Display Accuracy | ±0.5% |
Maximum Short-circuit Current | 1000A |
Current Acquisition Channel | Channel 1 |
Current Display Accuracy | ±0.5% |
Internal Resistance of Device Loop | 80±20mΩ |
Voltage | Single Phase 220V |
Power | 200W |
Machine Weight | 85kg |
TEST STANDARD
UL 1642:2012; UL 2054:2012; IEC 62281:2004; UN 38.3
