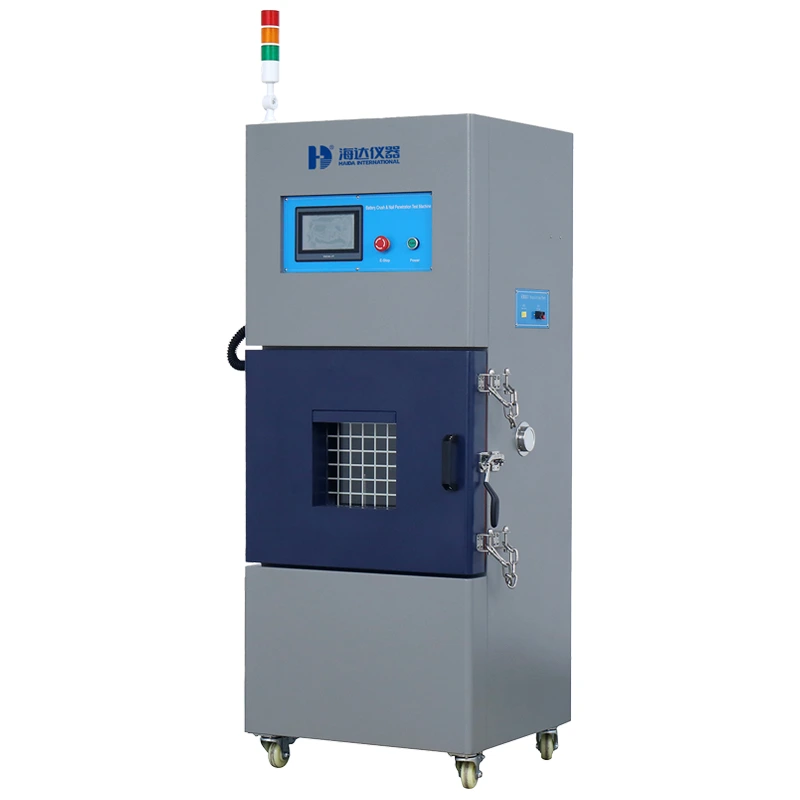

Battery Crush & Nail Penetration Test Chamber

1. Drive mode

 Servo motor drive;

2. Control method

 PLC touch screen control;

3. Force range

 1～20kN;

4. Extrusion stroke

 250mm;

5. Force value display

 touch screen display;

6. Extrusion head

 Extrusion head area ≥20cm²;

7. Extrusion degree

 Extrusion pressure reaches 13±0.2kN, keep for 1min;

8. Test space

 200x200x200mm (width x depth x height)

9. External material

 A3 steel plate and painted, thickness 1.5mm;

10. Material of inner box

 SUS#304, thickness 1.2mm;

11. Steel needle

 φ2mm～φ8mm high temperature resistant steel needle, the length is 100mm (can be specified);

12. Inner box size

 520x450x560mm (width x depth x height);

13. Dimensions

 800x700x1720mm (width x depth x height, including door lock);

14. Pressure relief door size

 200x200mm;

15. Smoke exhaust pipe

 diameter φ100mm, located at the back of the box;
