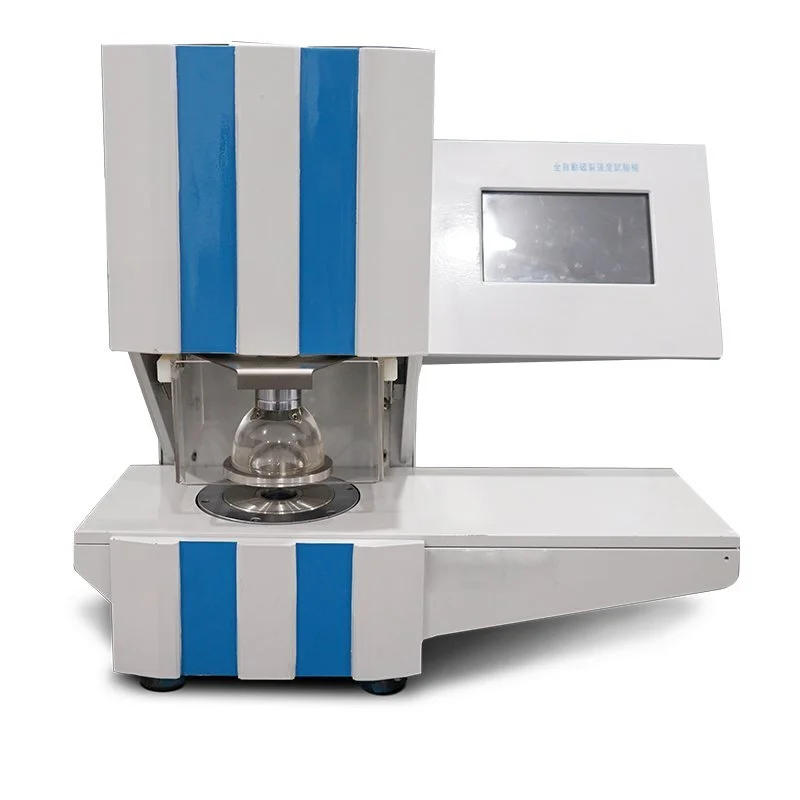

Fabric Bursting Strength Tester
1.High quality with reasonable price
2.One year free after-sale service
3.Up to TAPPI-T804,AS
The product Description:
The bursting strength tester is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.
The parameters:
Model | HD-A504 |
Capacity (Optional) | High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2) |
Unit (sitchable) | Kpa, psi, kg/cm^2 |
Accuracy | ± 0.5% |
Pressure Range | 250~5600kpa |
Speed of Compression | High Pressure 170± 10ml/min |
Specimen Clamping Force | >690kpa |
Oil | 85% Glycerin; 15% Distilled Water |
Sensing method | Pressure Transmitter |
Indicating Method | Digital |
Display | LCD |
Material of the Ring | Stainless Steel SUS304 |
Opening in Upper Clamp | 31.5 ± 0.05 mm Diameter |
Opening in Lower Clamp | 31.5 ± 0.05 mm Diameter |
Motor | Anti-vibration Motor 1/4 HP |
Operation Method | Semi-automatic |
Dimension (L×W×H) | 430×530×520 mm |
Weight | Approx. 64 kg |
Power | 1 , AC220± 10%, 50 Hz |
Power Capacity | 120W |
Standard Configuration | Rubber Membrane 1 piece, Spanner 1 set, Correction Shim 10 sheets, Glycerin 1 bottle |
Optional Configuration | Printer |
Standard | JIS-L1004, L1018, L1031, K6328, P8131, P8112 |
