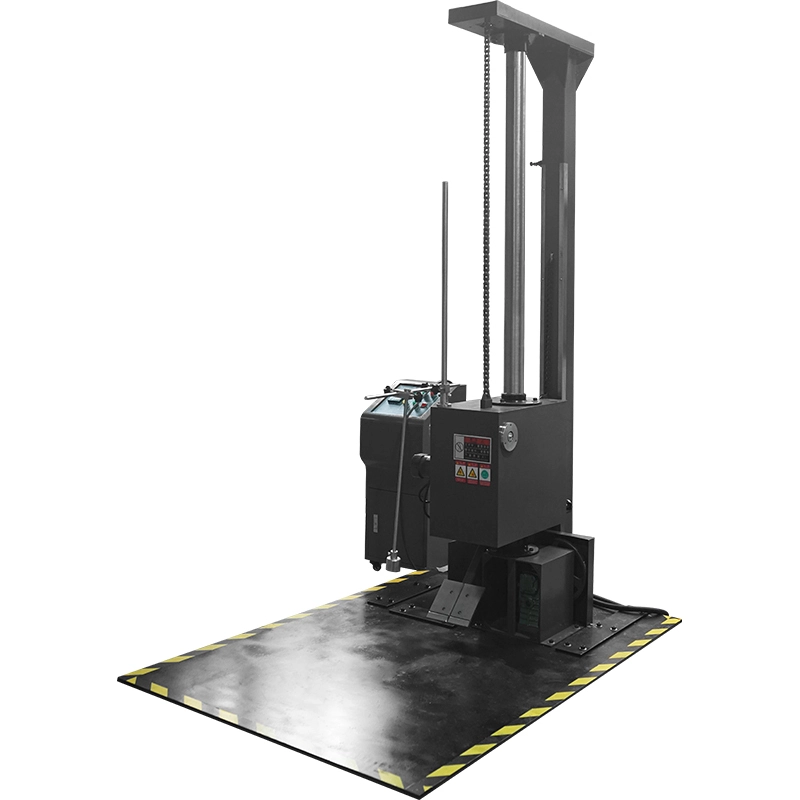

Electronic Digital Carton Drop Testing Equipment

1. Function

Electronic Digital Carton Drop Testing Equipment  is used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.

2. The comparison table of the package weight and dropping height:

3.  Operation of control chamber

A. Carton Drop Testing Equipment adopts electromagnet control system to control the dropping swing

B. It has automatic return function, electric dropping and electro-motion rising device and dropping test function

C. The testing height can be digital set up.

Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276

Dropping height

300mm-1500mm

1.     Outside material: advanced paint coat

2.     Display: LCD display

3.     Power system:drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)

4.     Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control

5.     Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs

6.     Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece
