30T Universal Test Machine

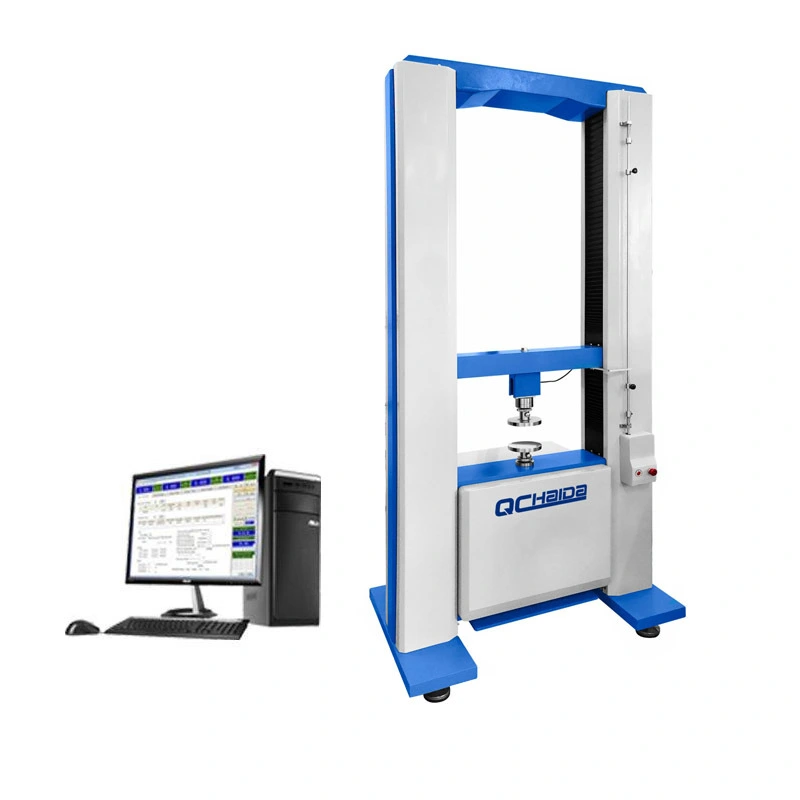

30T Electric Universal Testing Machine
Universal Testing Machine Video
Universal Testing Machine Brochure
For metal Products physical performance testing is basically according to different standards. Because of the different scenarios used in metal products, the force values are different. In particular, metal products in heavy industries are more demanding than the standard of everyday metal products. therefore,The universal test machine uses the latest precision sensor, servo motor, the test force range of up to 30T (5T, 10T is optional). Able to accurately test the large metal class. The universal test fixture uses the material and the bearing force value is better than the ordinary jig.
TM 2101 intelligent automatic detection of the operating system, (can adapt to all current PC)
High-tech, low noise
Security protection system
Valid test trip length (modifiable)
This universal test machines replaces different fixtures to perform different test functions.
tensile strength testing,bending resistance test,compression testing,shear testing ,3 point bending test...etc.
metal, steel sheet, steel rod, wire, screw ,pipe,and other metal materials.
including but not limited to ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Frame capacity | 30T |
Measure range | 2%-100%F.S |
Load cell brand | USA Brand Transcell Load Cell for high accuracy 30T (5T, 10T are optional) |
Load accuracy | 1% F.S |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
Available tensile stroke | 600mm |
Available compression stroke | 600mm |
Horizontal test space | ≤480mm |
Test speed | 0.1~200mm/min (adjustable) |
Round sample diameter | φ9-φ26mm |
Flat sample thickness | 0-14 mm |
Compression diameter | φ100mm |
Clamp control | Hydraulic |
Operation control & display | PC |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Application Details
1. Tested sample: wood, steel sheet, steel rod, wire, screw and other metal materials.
2. Different test with different grips: tensile, bend, compression, shear test.
3. Software can issue report with results for max. force, elongation, tensile strength, compression strength, bend strength, etc.
