Universal Tensile Test Machine

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-B604B-S

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

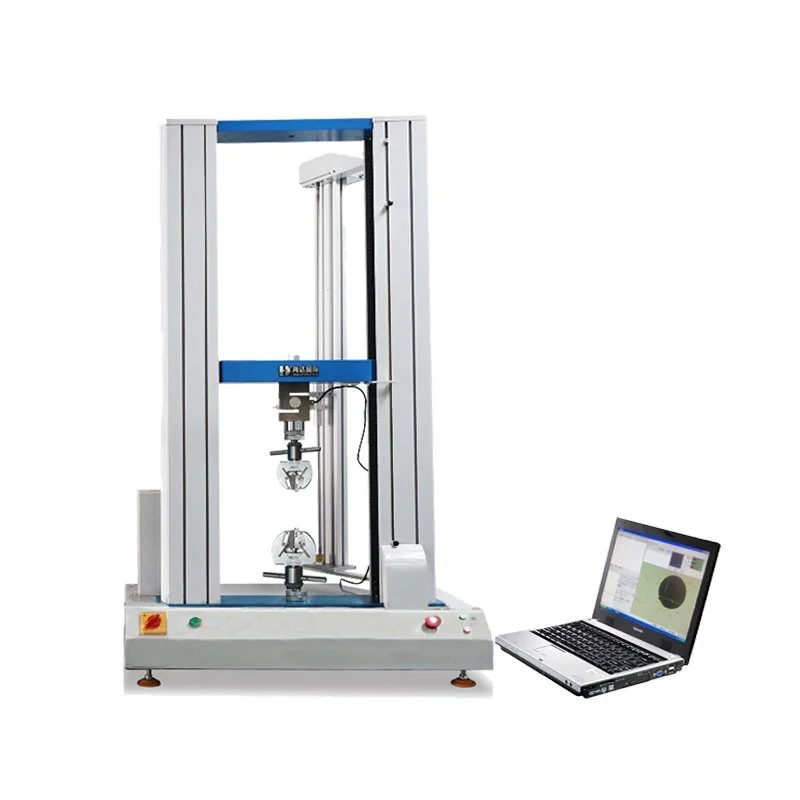

Universal Tensile Test Machine

Universal Tensile Test Machine 5 Tensile Test Machine Video Tensile Test Machine Brochure

Description:

This Universal Tensile Test Machine can do tensile test, tear test, peel test, bond test with different clamps for plastic ,rubber,leather,textile,tape,film and other kind of materials.

This universal test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the PC screen.

universal test machine . tensile tester

Applications

Deformation under defined load: Test deformation under defined load of tested sample
Load under defined deformation: Test load under defined deformation of tested sample
Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

Design Standard(inculding but not limited to... ):

Tensile Test: ASTM D882 ASTM D 638 / ISO 527-1/2
Bend Test ISO-178 / ASTM D 790
Tear Test：ASTM D 624
Peel Test : ASTM D 3330
Compression Test : ASTM D 659
others...

Specification:

Item	Description
Max. Force	2000 kg (20KN)
Load cell	Germany brand load cell for high accuracy
Control system	PC with windows 7 system
Motor	Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod
Force reading	kgf, Ibf, N, KN, T etc
Stoke	1200mm including fixture
Load cell Resolution	1/250,000
Load Precision	≤0.5%
Test speed	0.1~500mm/min (adjustable by PC)
Test width	≤400mm
Software	TM 2101
Curves display	Load- elongation, Elongation-time, Time-elongation, Stress-strain
Data display	Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…
Safety features	E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat

(universal testing machine)Related Products:
HD-609/604	2000 kg (20KN)Max. Force / for Tape, rubber, plastic, textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-611	10T (100KN) Max. Force / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-615	5000 kg (50KN) Max. Force / for textile, waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
HD-B616	20KN-1000KN (Hydraulic) load range / for waterproof material, wire and cable, net rope, wire, metal rod, fiber, metal chain, metal plate and other materials
Want to know more details,please contact us "manager@qc-test.com"

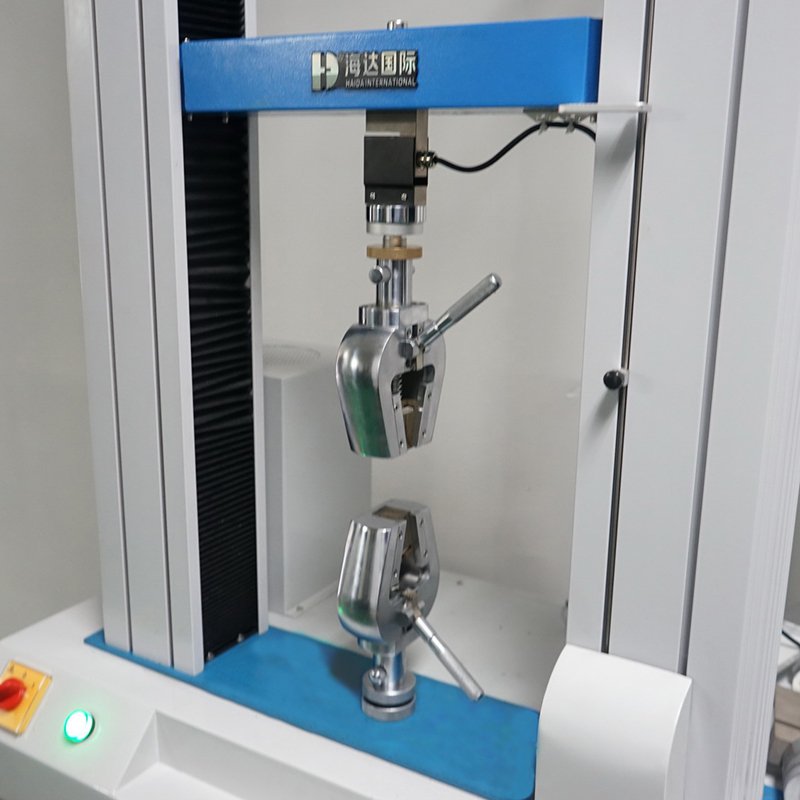

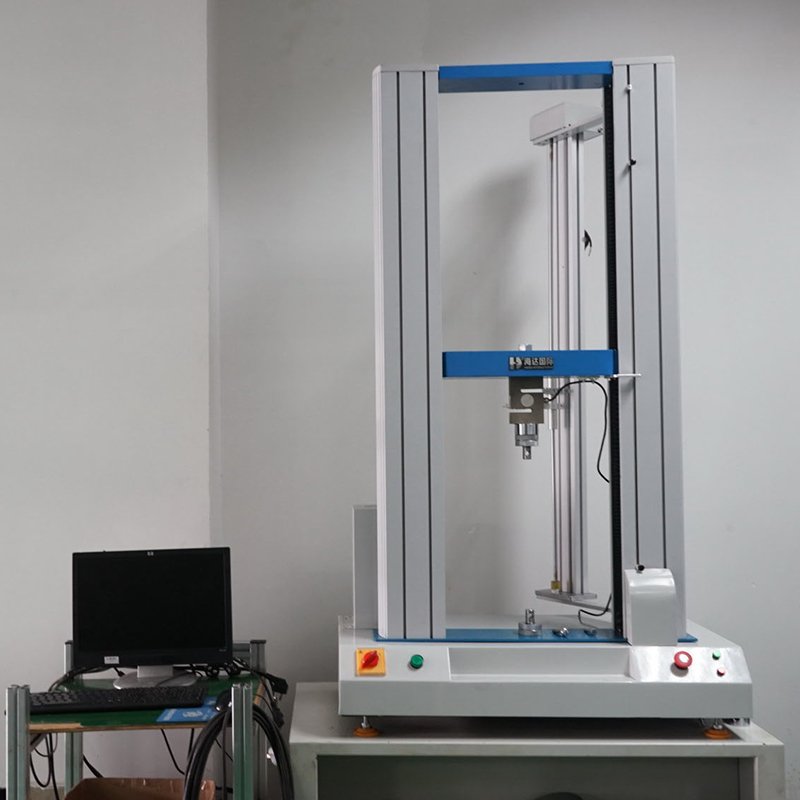

Machine Picture:
Universal Tensile Test Machine

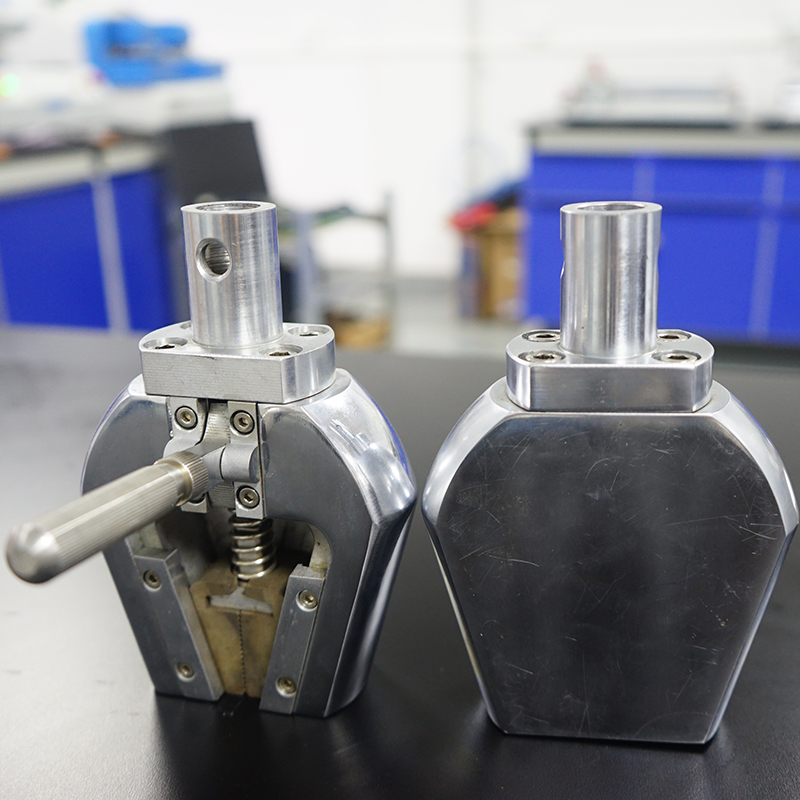

Parts Picture &Fixture:
universal test machine . tensile tester

Software

The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.

Lab Room:
Universal Tensile Test Machine 12

Customer feedback:
universal test machine . tensile tester

Part Of Our Partner Customer:

universal test machine . tensile tester

See what company you will work with?

1. Largest TESTING EQUIPMENT manufacturer in China, One of Second Largest TESTING EQUIPMENT manufacturer around the world.

2. Professional Manufacturer of various kinds of testing equipments over 10 years, defect rate is controlled under 0.02%.

3. Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.

4. ISO 9001:2008 Quality Management System Certificate.

5. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…

6. Our Marketing Investigation Department will send Marketing Research Report to you each season.

7. We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, etc.

8. We accept 100% inspection.

9. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us.
