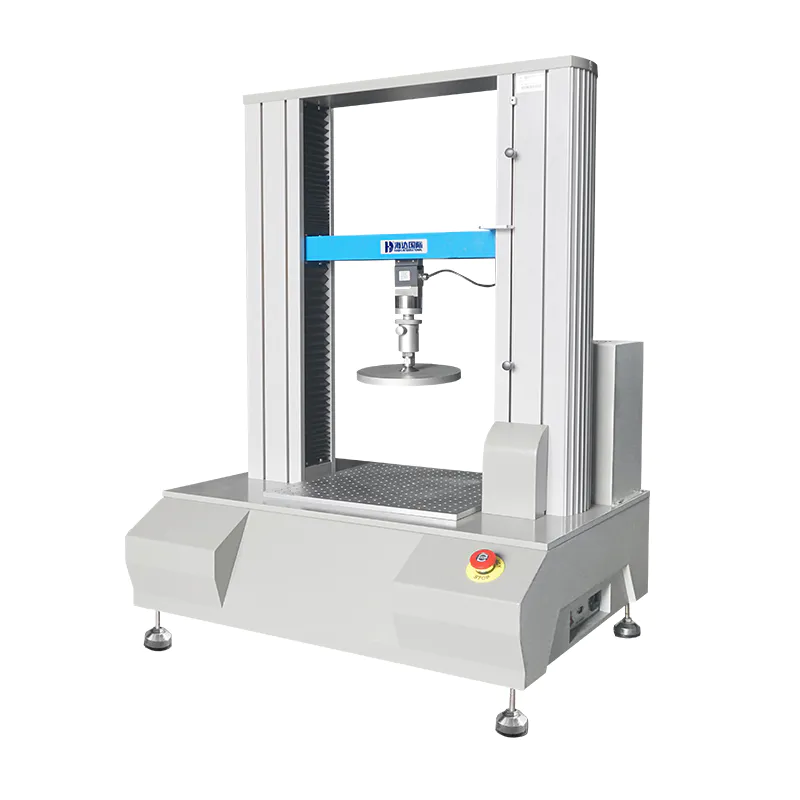

Universal Ring Crush Edge Testing Machines various tests can be appliedA variety of materials for full test, in terms of paper packaging material, for a variety of test paper quality, including ring crush Test (RCT), flat Crush Test (FCT has grown), Edge Crush Test (ECT), Pin adhesive Test (PAT) and general compressive (CMT), and other five kinds of testing, test equipment combines many functions in one.
Structural integrated design Can meet the test requirements of various occasions
A tester integrates independent test functions such as tension, compression, bending, shear, peeling, tearing, etc., providing a variety of tests0.1-500mm/minInfinitely variable speed adjustableProviding convenience for users to different test conditions.
Convenient computer controlUsers quickly perform test operations
Professional software provides group test curve superposition analysis and statistical analysis of maximum, minimum average, standard deviation, etc
Capacity (Optional) | 10, 20, 50, 100, 200 kg |
Resolution | 1/250,000 |
Precision | < 0.25% |
Operation Mode | Computer |
Display Mode | LCD |
Platen | 100×100 mm or depending on the diameter of the flat crush sample |
Compressed Space | 500 mm |
Platen Parallelism | ± 0.05 mm |
Ring Crush Sample | 152×12.7 mm |
Edge Crush Sample | 25×100 mm |
Test Speed | 12.7 mm/min |
Dimension (L×W×H) | 790×510×1060 mm |
Weight | Approx. 51 kg |
Power | AC220V, 1.5A |
Limit protection
Adjustable stroke, overload protection Automatic high-speed return
Fast data collectionintelligent judgmentSafe and reliable
Ensure accurate sampling and high-speed efficiency Guarantee test accuracy
