Tape Universal Test Equipment

Tape universal test equipment

 Tape Universal Test Equipment Video                 Tape Universal Test Equipment

This tape test equipment is mainly designed for the detection of various adhesive tape, adhesive tape series in particular.Intelligent detection system in 0.1 ~ 300 mm/min (adjustable) test speed detection tape tear strength.The equipment uses the humanized industrial design, the light weigh, easy to move, can put on the table

This is a simple use of the operating tester, with optional quality control software for automatic calculation and graphic display of breaks, elongation, yield, modulus, and other tension and compression forces of information.

This tape universal test equipment can do tensile test, tear test, peel test, bond test with different clamps main for all kind of tape and paper, film,High-temperature tape, double-sided tape, insulating tape, special tape, pressure sensitive tape, die-cutting tape.

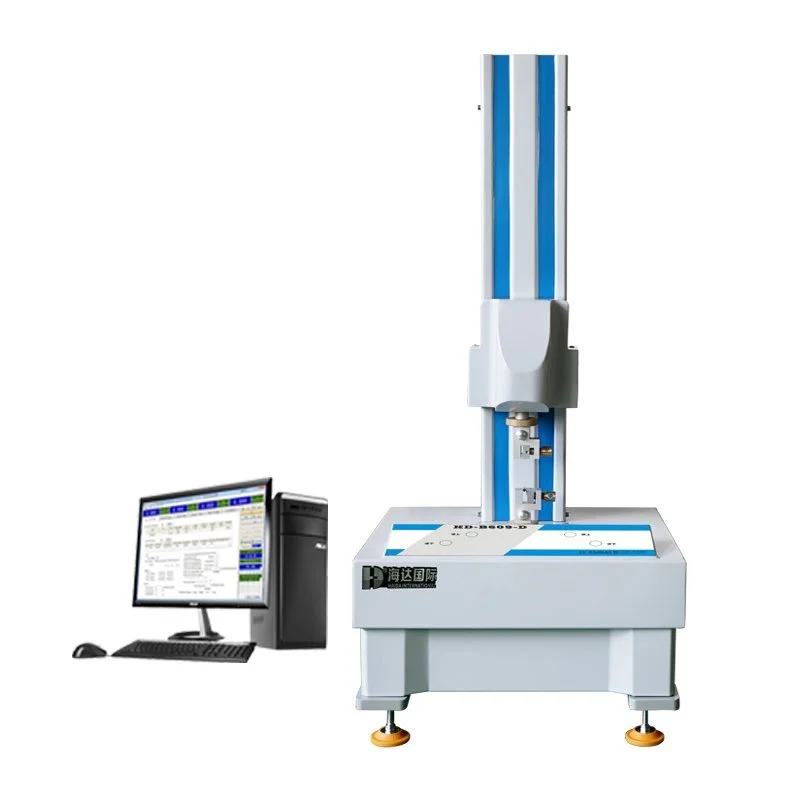

This universal test equipment uses the motor to drive screw to move fixtures. Fix sample between upper and lower fixture and pull sample by the upper fixture upward with specified speed. The load cell connecting with upper fixture will sense the force and then convert it into voltage sign to the display screen. Force value will be displayed automatically on the screen.

1. Deformation under defined load: Test deformation under defined load of tested sample

2. Load under defined deformation: Test load under defined deformation of tested sample

3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

4. This tape universal test equipment can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

GB, CE,ISO, ASTM, JIS, DIN and EN, and other multinational standards

The table parameters is for the company Standard Model parameters, we support customer customization parameters

Tape Universal Test Equipment Software

The TM2101 software is designed purposely for computer controlled electronic universal testing machine,  used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.



In order to provide our customers with the best service, our company set up its own lab room. On the one hand can be easy to do sample testing (recording test process to the customer). Another aspect of equipment teaching training. For example, equipment commissioning, calibration, test software use, live video maintenance, replacement fixture and so on.

If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.



Packaging & Shipping

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.

FAQ:
 Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
 Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional aftersales service team will provide perfect technical support and help guests solve  problems encountered while using our product, handles guest problems and complaints in a professional and timely.
 Q:What about the  product' services and quality?
A:Each equipment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.  We can arrange engineer to train the operation of equipment to customer’s company when you need. products are widely recognized and trusted by users.
 A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
