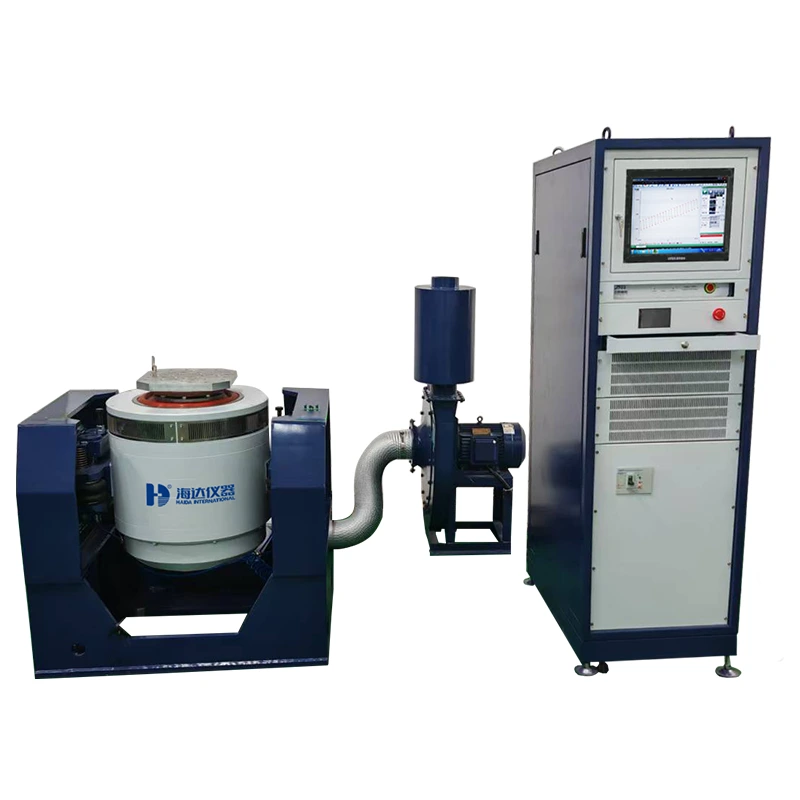

Electro-dynamic Vertical Shaker

Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation.

Model:

HD-Snake-V

Inquiry

Write a Review

Product Description

Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.

Product Specifications

Model		HD-Snake-A6V	HD-Snake-A10V	HD-Snake-A20V	HD-Snake-A30V	HD-Snake-A40V	HD-Snake-A50V
System Specifications	Rated sine force	6KN	10KN	20KN	30KN	40KN	50KN
	Rated random force	6KN	10KN	20KN	30KN	40KN	50KN
	Rated Shock force	12KN	20KN	40KN	60KN	80KN	100KN
	Dimensions (L×W×H)	2200x1300x7600mm	2200x1300x760mm	2600x1400x1060mm	2900x1500x1260mm	2900x1500x1360mm	3100x1600x1560
	Frequency Range	2-3000HZ	2-3000HZ	2-3000HZ	2-2800HZ	2-2800HZ	2-2800HZ
	Max displacement	51mm	51mm	51mm	51mm	76mm	76mm
	Max. Acceleration	100G (980 m/s2)
	Max. Velocity	1.8m/s-2m/s or customized
	Vibration Direction	Vertical
	Armature Diameter	Φ240mm	Φ240mm	Φ320mm	Φ340mm	Φ370mm	Φ445mm
	Effective Armature Mass	10kg	10kg	20kg	30kg	40kg	50kg
	Table Screw	17×M10
	Max. Load Capacity	200kg	300kg	300kg	500kg	500kg	800kg
	Magnetic Leakage	<10gauss
	Axial Vibration Isolation Frequency	2.5HZ
	Power Supply	AC 3-phase 380V, 50/60Hz
Power Amplifier	Maximum Output	10 kVA	10 kVA	20 kVA	30 kVA	40 kVA	50 kVA
	Conversion Efficiency	≥90%
	On-off Frequency	116KHz
	Approx. Dimension	720×550×1700mm (LWH)
	Approx. Weight	480kg
Vertical Head Expander Platform	Expander Size	400X400mm	500X500mm	600X600mm	800X800mm	1000X1000mm	1200X1200mm
	Material	Aluminum Alloy
	Max. Work Frequency	Random up to 2000Hz
	Fixed Connect Hole	M10 stainless steel screw sleeve
	Approx. Weight	25kg	32kg	39kg	90kg	120kg	200kg

Product Application

Automotive parts

Car audio, Navigation system, Door mirror, Inverter, Motor, Light associated part, ECU associated part, Solenoid, Car-mounted meter, Electric power station motor, Combination meter, Fuel pump, Inlet system part, Hybrid associated part, Battery, Electric pump, Muffler, Catalyst, Fuel battery, ABS coil, Seat belt, Breaking system

Aerospace

Personal monitor TV, Communications equipment, Resin product, Seal material, Dish, Chair, Aircraftengine compo, Airborne equipment

Electronic parts

LCD TV, Connector component, Car mounted electric component, General purpose motor, In-rack equipment, PC, Printed circuit board, Impact from transportation.

Information and telecommunication equipment

Navigation system, Car mounted telecommunication equipment, Vending machine on the expressway, Industrial motor, Antenna associated component, Large antenna.

Precision equipment

Industrial robot, Digital camera, Lens, Optical equipment, Surface mounter associated component, Mobile phone, Copy machine, Video camera.

Electrical equipment

Withstanding voltage transformer, Fuel battery, Inverter associated component, Space battery, Large lithium battery.

Transportation environment

Rail vehicle component, Construction equipment, Shipping on a rough road.

Usage environment

Combination meter, Instrumental panel associated component, Solar system, Other car-mounted component, PC.

Product Characteristics

By developing a power amplifier that uses a new next generation Silicon Carbide power module, HAIDA has achieved low noise and high efficiency. This new power module is standard-issue for all Single axis vertical-series models.
