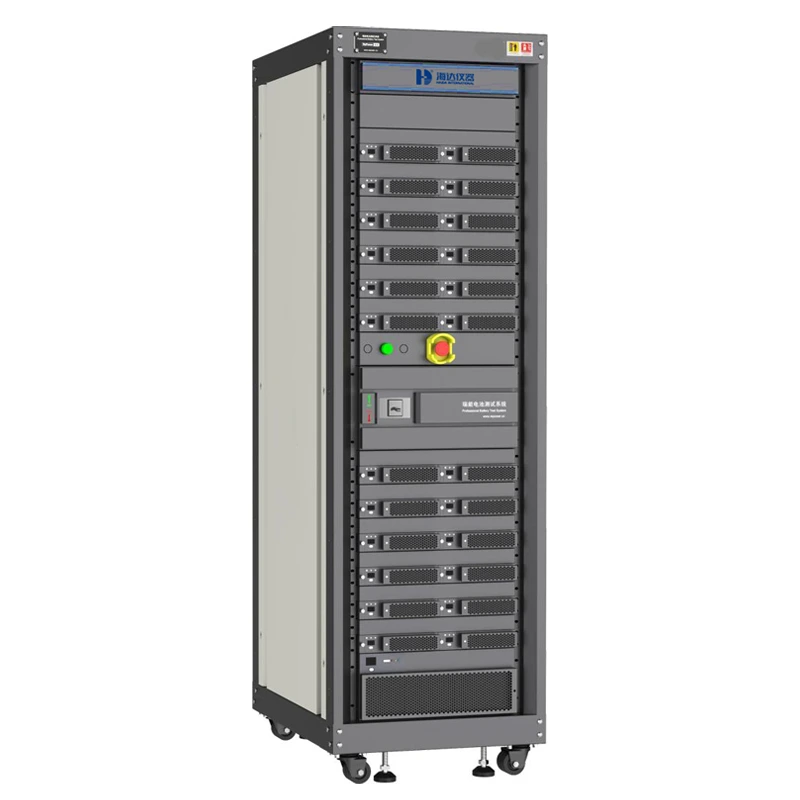

Power battery module/pack testing system 60V/100V

Applied in the testing and quality control of smart lithium batteries or battery packs such as e-bike, drones, medical equipment, balance-robot, and vacuum cleaner, and can realize the integration of charging and discharging data monitoring.

Model:

HD-H213-60~100V

Inquiry

Write a Review

Product Description

Power battery module/pack testing system applied in the testing and quality control of smart lithium batteries or battery packs such as e-bike, drones, medical equipment, balance-robot, and vacuum cleaner, and can realize the integration of charging and discharging data monitoring.

Power battery modulepack testing system 60V100V

Product Specifications

Models	HD-H213-60~100V
AC parameters	Wiring method	Three-phase ﬁve-wire system
	Power supply voltage	380±10% VAC
	Power supply frequency	50±5% Hz
	Power factor	> 0.99
	Max. power feedback efficiency	≥ 90%
	THD	＜5%
DC parameters	Output current	20A, 30A, 40A, 60A
	Total output power	15KW-60KW
	Single channel voltage range	60V~100V
	Voltage accuracy	± 0.05% F.S
	Voltage resolution	1mV
	Current accuracy	± 0.05% F.S
	Current resolution	1mA
	Current response time	10ms（10%~90% F.S）
	Current switching time	20ms（-90%~90% F.S）
Upper computer software function	Charging mode	CC, CV, CCCV, CP, Slope etc.
	Discharge mode	CC, CV, CP, CR, Slope etc.
	Other working mode	Still,Pause
	Test cut-of condition	Battey voltage, current, time, capacity, temperature
	Data export Format	Excel, TXT etc.
	Data recording interval	10ms
	Editable step	Max.10000
	Programmable step	Max.10000
	Nested loop	Max.10 layers
	Software protection	OCP/OVP/UVP/Reverse or wrong connection protection/ Protection for abnormal communication
	Third-party Device Integration	Support linkage of temp. chamber, MTV/MTS, and pressure sensor
Other parameters	IP grade	IP20
	Working temperature	0℃~40℃
	Cooling method	Forced Fan-cooled
	Noise	＜75dB
	Cabinet size（WDH mm）	6008501030 / 6008001980

Products Function Test

Power battery module/pack testing system 60V/100V 3

Cycle life test

Power battery module/pack testing system 60V/100V 4

Charging/discharging test

Power battery module/pack testing system 60V/100V 5

Battery capacity test

Temperature characteristic test

Charge retention test

High-speed working condition pulse test

Static/dynamic SOC test

DCIR test

Products Advantages

Support single battery voltage consistence test;

Support multi-channel charge-discharge curve comparison;

Support multi-channel parallel;

Power factor value up to 0.99;

Anti-reverse connection and data protection;

Battery discharge and energy feedback efficiency ≥90%;

Modular design, easy for maintenance;

Support RS485/CAN communication, baud rate is changeable;

Support DBC import at one-click;

Support user-defined BMS values as control/protection parameters;

BMS voltage and current following test;

User-defined login management rights are supported.
