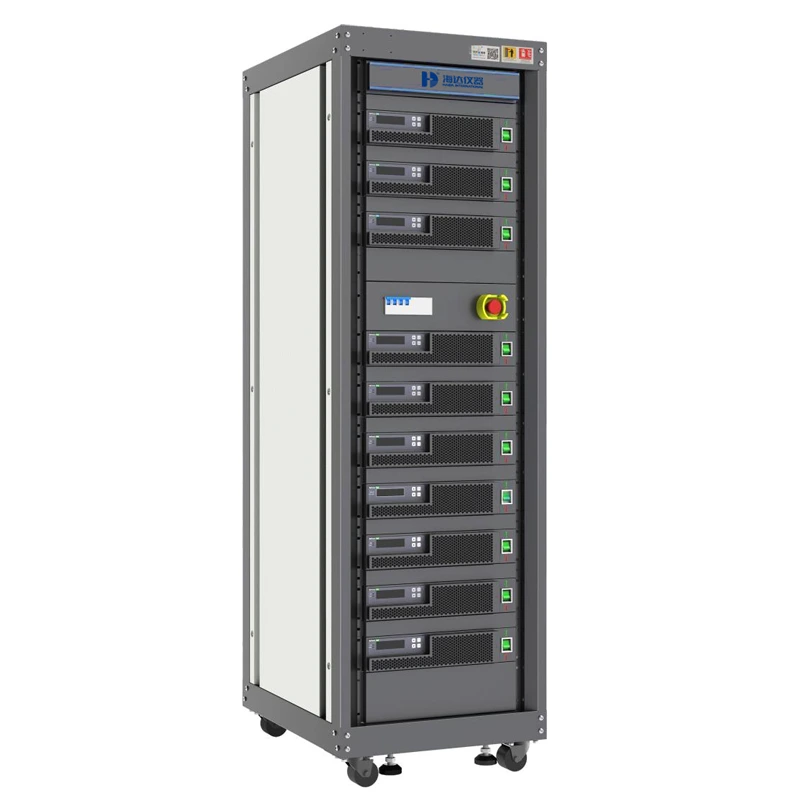

Power Battery Cell Testing System

Applied in Li-ion battery, lead acid battery, nickel-cadmium battery testing and quality control, can realize the integration of charge and discharge data monitoring.

Model:

HD-H213-5V

Inquiry

Write a Review

Product Description

Power battery cell testing system applied in Li-ion battery, lead acid battery, nickel-cadmium battery testing and quality control, can realize the integration of charge and discharge data monitoring.

Product Specifications

Models	HD-H213-5V
AC parameters	Wiring method	Three-phase ﬁve-wire system
	Power supply voltage	380±10% VAC
	Power supply frequency	50±5% Hz
	Power factor	> 0.99
	Max. power feedback efficiency	≥ 75%
	THD	＜5%
DC parameters	Output current	30A, 60A, 100A, 150, 300A
	Single channel voltage range	0.8V~5V
	Voltage accuracy	± 0.02% F.S
	Voltage resolution	0.1mV
	Current accuracy	± 0.02% F.S
	Current resolution	0.1mA
	Current sta比 response time	5ms（10%~90% F.S）
	Current switching time	10ms（-90%~90% F.S）
	Min. Working Condition Simulation InteⅣal	10ms
Upper computer software function	Charging mode	CC, CV, CCCV, CP etc.
	Discharge mode	CC, CV, CP, CR etc.
	Other working mode	Still,Pause,Working condition test,Pulse test,DCIR
	Test cut-of condition	Battey voltage, current, time, capacity, temperature
	Data export Format	Excel, TXT etc.
	Data recording inteⅣal	10ms
	Editable step	Max.10000
	Programmable step	Max.10000
	Nested loop	Max.10 layers
	Software protection	OCP/OVP/UVP/Reverse or wrong connection protection/ Protection for abnormal communication
	Third-party Device Integration	Support linkage of temp. chamber, MTV/MTS, and pressure sensor
Other parameters	IP grade	IP20
	Working temperature	0℃~40℃
	Cooling method	Forced Fan-cooled
	Noise	＜75dB
	Cabinet size（WDH mm）	6008501030 / 6008001980

Products Function Test

Cycle life test

Charging/discharging test

Battery capacity test

Temperature characteristic test

Charge retention test

High-speed working condition pulse test

Static/dynamic SOC test

DCIR test

Products Advantages

Support single battery voltage consistence test;

Support multi-channel charge-discharge curve comparison;

Support multi-channel parallel;

Power factor value up to 0.99;

Anti-reverse connection and data protection;

Battery discharge and energy feedback efficiency ≥90%;

Modular design, easy for maintenance;

Support RS485/CAN communication, baud rate is changeable;

Support DBC import at one-click;

Support user-defined BMS values as control/protection parameters;

BMS voltage and current following test;

User-defined login management rights are supported.
