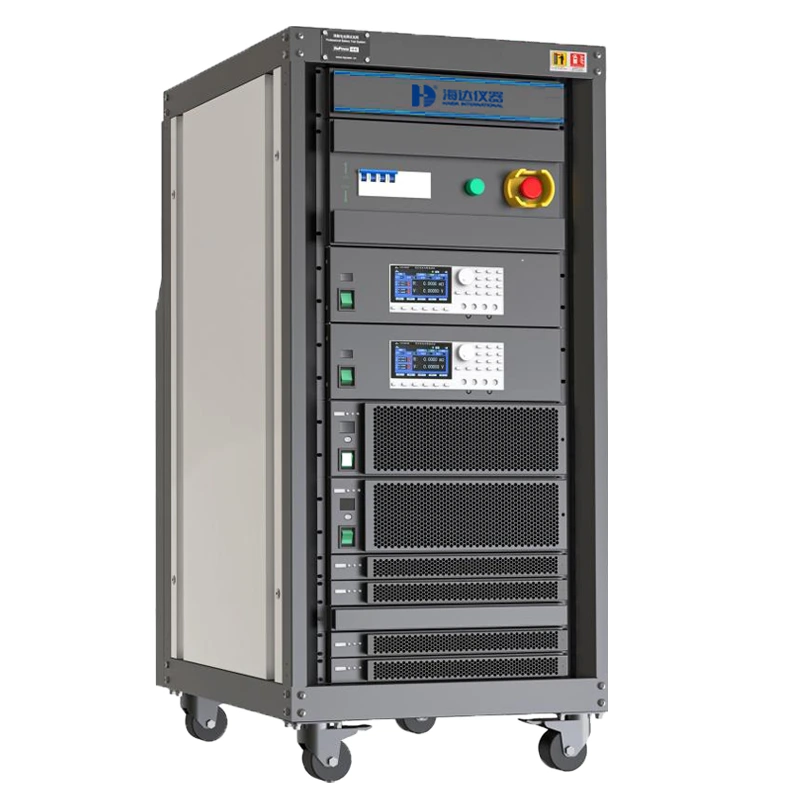

Finished/semi-finished power battery testing system

Applied in performance testing and quality control of power battery pack of e-tool, e-bike, e-motorcycle, e-vehicle, and battery module of energy storage base.

Model:

HD-H220

Inquiry

Write a Review

Product Description

Finished/semi-finished power battery testing system applied in performance testing and quality control of power battery pack of e-tool, e-bike, e-motorcycle, e-vehicle, and battery module of energy storage base.

Product Specifications

Models	HD-H220-60V~200V 60A~300A
Simulated battery’s output	Output Voltage	6-60V	12-200V	±0.05% F.S	1mV
	Voltage	6-60V	12-200V	±0.05% F.S	1mV
Discharge Voltage	Voltage Measurement	6-60V	12-200V	±0.05% F.S	1mV
Charge Current	Output Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
	Current Reading	0.1-60A	0.1-300A	±0.05% F.S	1mA
Discharge Current	Output Current	0.1-60A	0.1-300A	±0.05% F.S	1mA
	Current Reading	0.1-60A	0.1-300A	±0.05% F.S	1mA
Charge/discharge Over-current Protection testing	Time Range	0-60000mS	0-60000mS	0.1%	1mS
ACR	Voltage	0-60V	0-300V	±（0.01%rdg+10dgt）	1mV
	Impedance	0.001mΩ~3mΩ	3mΩ~3KΩ	±（0.5%rdg+10dgt）	0.001mΩ
Resistance Measurement	IDR	0.01KΩ~1MΩ		0.1%	1Ω
	NTC	0.01KΩ~1MΩ		0.1%	1Ω
Basic function test	OCV test
	Comparison test of OCV difference
	Charge Pedormance Test
	Discharge Pedormance Test
	Wake Up
	Comparison test of charging current accuracy
	Comparison test of discharge current accuracy
	ACR impedance test
	Load impedance test
	Charge Over current protection and recoveQ test (OCP)
	Discharge Over current protection and recoveQ test (OCP)
	Charge and discharge DCR test
	Cell voltage sampling test
	Cell temperature sampling test
	SOC test
	Software and hardware version reading test
Communication function	CANBUS / Rs485 / Rs232 / I2C / SUMBUS etc.

Products Function Test

Finished/semi-finished power battery testing system 3

OCV test

Finished/semi-finished power battery testing system 4

DCIR DCIR test

Finished/semi-finished power battery testing system 5

Charge/discharge over-current protection test

ID resistance test

NTC resistance test

AC impedance test

Over current delay test

Load capacity test

Products Advantages

Soft-start for current output, avoid current shock.

Current source open-circuit and voltage-limiting design, avoid high voltage output.

Each channel is with independent and programmable constant voltage source and constant current source.

Support multi-channel independent testing simultaneously, improving efficiency and production capacity.

Support lithium battery pack solutions for the same port, different port, hardware and software versions.

Support to read, write and comparison of Gas Gauge data in protection board of finished/semi-finished PACK.

Software detects the battery and tests it automatically and record testing result.
