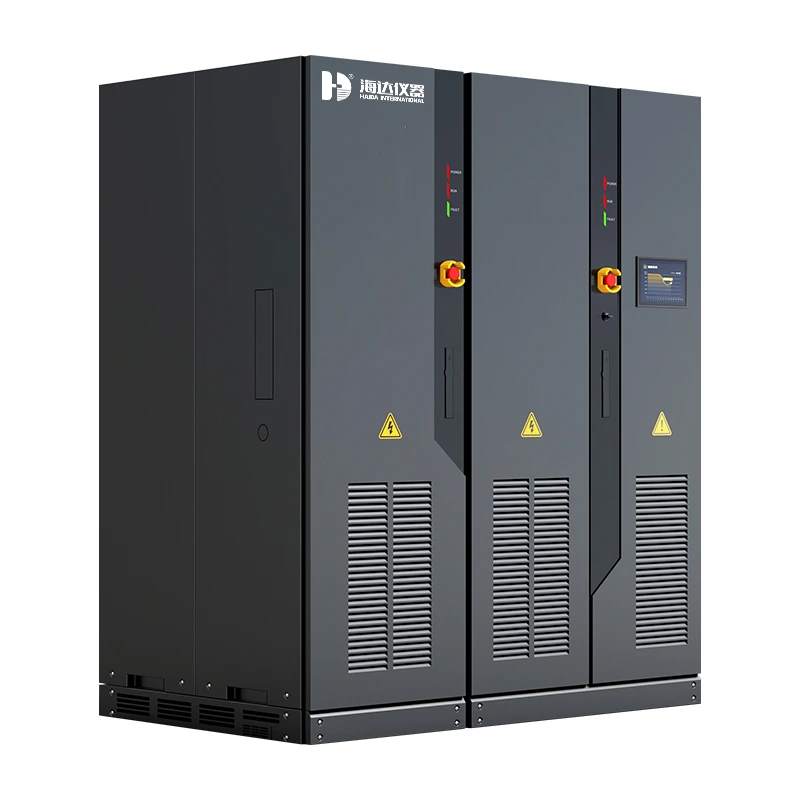

High voltage battery pack testing system 750~1500V/2000V 1

High voltage battery pack testing system 750~1500V/2000V 2

High voltage battery pack testing system 750~1500V/2000V 3

High voltage battery pack testing system 750~1500V/2000V

Applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.

Model:

HD-H214-750~1500/2000V

Inquiry

Write a Review

Product Description

High voltage battery pack testing system 750~1500V/2000V applied in the testing and quality control of lithium battery modules & packs such as new energy vehicles, energy storage base stations, and can realize the integration of charging and discharging data monitoring.

High voltage battery pack testing system 750V2000V (2)

Product Specifications

Models	HD-H214-750~1500/2000V
AC parameters	Wiring method	Three-phase ﬁve-wire system
	Power supply voltage	380±10% VAC
	Power supply frequency	50±5% Hz
	Power factor	> 0.99
	Max. power feedback efficiency	≥ 90%
	THD	＜3%
DC parameters	Output current	200A, 300A, 400A, 500A, 600A, 1000A
	Single channel voltage range	750V~1500V/2000V
	Voltage accuracy	± 0.05% F.S
	Voltage resolution	1mV
	Current accuracy	± 0.05% F.S
	Current resolution	1mA
	Current response time	3ms（10%~90% F.S）
	Current switching time	5ms（-90%~90% F.S）
	Min. Working Condition Simulation Interval	10ms
Upper computer software function	Charging mode	CC, CV, CCCV, CP, Slope etc.
	Discharge mode	CC, CV, CP, CR, Slope etc.
	Other working mode	Still,Working condition test,Pulse test (pulse width 20ms),DCIR etc.
	Test cut-of condition	Battey voltage, current, time, capacity, temperature BMS parameters etc.
	Data export Format	Excel, TXT etc.
	Data recording interval	10ms
	Editable step	Max.10000
	Programmable step	Max.10000
	Nested loop	Max.10 layers
	Software protection	OCP/OVP/UVP/Reverse or wrong connection protection/ Protection for abnormal communication
	Third-party Device Integration	Support linkage of temp. chamber, MTV/MTS, and I/O control box
Other parameters	IP grade	IP20
	Working temperature	0℃~40℃
	Cooling method	Forced Fan-cooled
	Noise	＜75dB
	Cabinet size（WDH mm）	160011002000

Products Function Test

High voltage battery pack testing system 750~1500V/2000V 5

Cycle life test

High voltage battery pack testing system 750~1500V/2000V 6

Charging/discharging test

High voltage battery pack testing system 750~1500V/2000V 7

Battery capacity test

Temperature characteristic test

Charge retention test

High-speed working condition pulse test

Static/dynamic SOC test

DCIR test

Products Advantages

Supports single-cell voltage consistency testing.

Supports multi-channel parallel functionality.

High power factor value, PF value of 0.99.

Equipped with reverse polarity protection and data loss prevention.

High-quality discharge energy feedback to the grid, with a maximum efficiency of ≥96%.

T-type three-level technology, wide voltage range output, and low ripple.

Supports RS485 and CAN communication, with adjustable baud rate.

Supports one-click DBC file import.

Supports custom BMS values as control/protection parameters.

Supports ramp charging and discharging tests.

Supports customizable login management permissions.

Supports national standard charging pile simulation function (optional).
