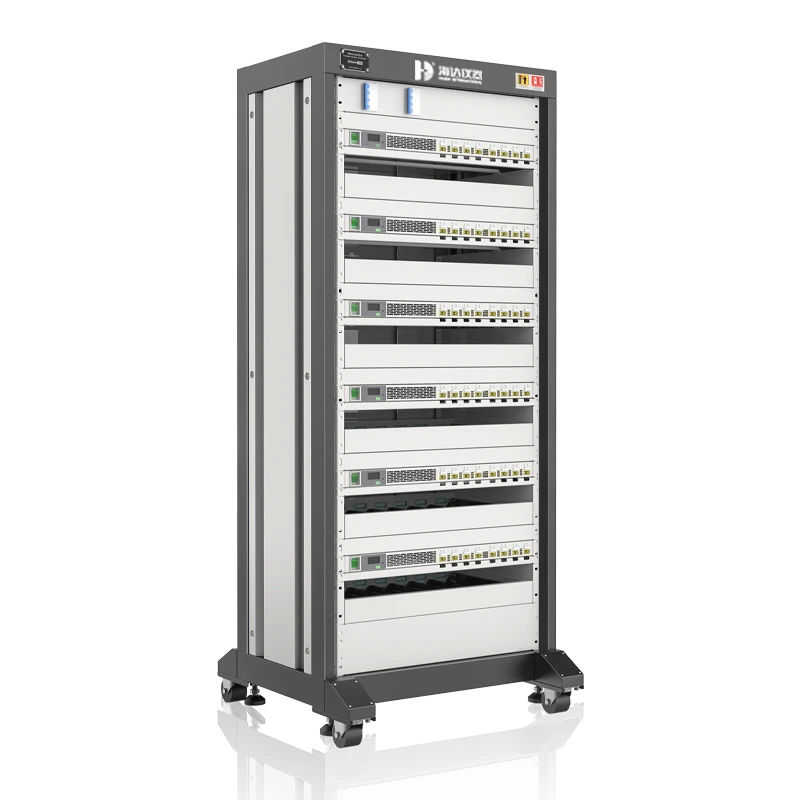

Digital battery testing system 5v~20v

Mainly used for aging, testing, and intelligent data training in the production of notebook batteries, digital camera batteries, smartphone batteries, and other smart 3C batteries.

Model:

HD-H218-5/20V

Inquiry

Write a Review

Product Description

Digital battery testing system 5v~20v Mainly used for aging, testing, and intelligent data training in the production of notebook batteries, digital camera batteries, smartphone batteries, and other smart 3C batteries.

Product Specifications

Models	HD-H218-5V/20V
AC parameters	Wiring method	AC 220V
	Power supply voltage	220±10% VAC
	Power supply frequency	50±5% Hz
	Power factor	＞0.99
	Max. power feedback efficiency	≥ 95%
	THD	＜3%
DC parameters	Total output power	≤ 8000W
	Output current	5/6/10/20/30A
	Single channel voltage range	5V~20V
	Voltage accuracy	± 0.02% F.S
	Voltage resolution	0.1mV
	Current accuracy	± 0.02% F.S
	Current resolution	0.1mA
	Current start response time	10ms (10%~90%F.S)
	Current switching time	20ms (-90%~90%F.S)
Software Function	Charging mode	CC, CV, CP, Pulse, Slope etc.
	Discharge mode	±0.02% F.S
	Other working mode	Still, Working condition test, Pulse test, DCIR etc
	Test cut-off condition	Battey voltage, current, time, capacity, temperature, BMS parameters etc.
	Data export format	Excel, TXT etc.
	Data recording interval	10ms
	Editable step	Max. 10000
	Programmable step	Max. 10000
	Nested loop	Max. 10 layers
	Software protection	OCP/OVP/Reverse or wrong connection protection/ Protection for abnormal communication
Other parameters	IP grade	IP20
	Working temperature	0℃~40℃
	Cooling method	Forced Fan-cooled
	Noise	＜75dB
	Cabinet size（WDH mm）	7707221800

Products Function Test

Cycle Life Test

Voltage Test

Charge Retention Capability

Dynamic and Static SOC Test

Charge and Discharge Test

Temperature Characteristics Test

Overcharge/Overdischarge Test

DC Internal Resistance Test

Products Advantages

Support cell voltage consistency test

Support Comparison of charge-discharge curves of multi-channel

With anti-reverse connection, data loss and other protection functions

Modular design, easy to maintain

Support GGS communication, I2C, Smbus, HDQ and other protocols

Support 100K/400K communication frequency adjustable, communication platform voltage adjustable

Supports multi-chip (multi-address) information reading

One device is able to compatible with multi-type of IC

Able to self-defy and load battery lock and unlock instruction for special battery
