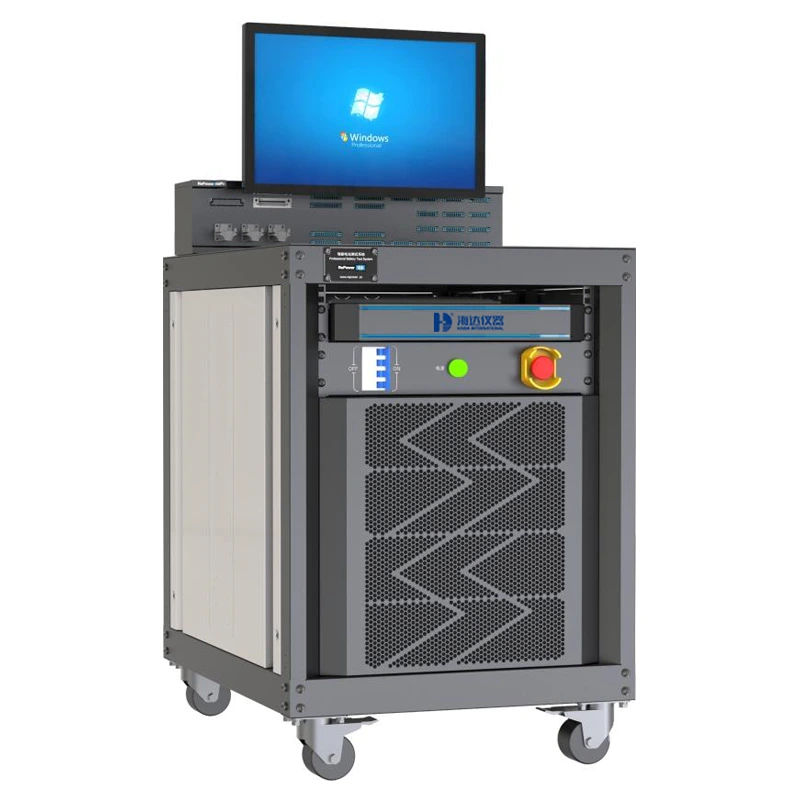

PCB battery protection board testing system

Applied in the testing of power battery pack protection board system, testing of PCB performance and its technical items, and generated a complete testing report.

Model:

HD-H219

Inquiry

Write a Review

Product Description

PCB battery protection board testing system applied in the testing of power battery pack protection board system, testing of PCB performance and its technical items, and generated a complete testing report.

Product Specifications

Models	HD-H219-16~24S 100A/200A/300A
Pack Voltage	Voltage Measurement	5-180V	0.1% F.S	1mV
Simulated battery’s output	Voltage range	100-5000 mV	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery sampling	Voltage range	100-5000 mV	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated batte's ability of absorbs current	Current range	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Temperature simulation	Temperature range	-50℃~300℃	0.1%R.D ± 3% F.S	0.1℃
High precision constant-current source	Voltage range	1-5V	0.1%FS	0.1mV
	Charge current	1-300A	0.05%RD±0.05% FS	0.1uA
	Discharge current	1-300A	0.05%RD±0.05% FS	0.1mA
Recharger	Voltage range	1-120V	0.1% FS	0.1mV
Recharger	Current range	1-500mA	1% FS	0.1mA
Load	Voltage range	1-120V	0.1% FS	0.1mV
Load	Current range	1-500mA	1% FS	0.1mA
Basic function test	OCV test
	Normal power consumption test
	Sleep power test
	Cell over-voltage protection and recoveQ test
	Cell under-voltage protection and recoveQ test
	Total voltage over-voltage protection and recoveQ test
	Total voltage under-pressure protection and recoveQ test
	Balance voltage and current test
	Charge and discharge over-current protection and recoveQ test
	Shok-circuit protection and recoveQ test
	High and low temperature protection and recoveQ test
Signal function test	Voltage sampling test,temperature sampling test,resistance sampling test, IO signal test
Communication function	CANBUS / RS485 / RS232 / I2C / SUMBUS etc.

Products Function Test

PCB battery protection board testing system 3

Balanced current measurement verification

PCB battery protection board testing system 4

Over-charge and over-discharge measurement verification

PCB battery protection board testing system 5

Quiescent current measurement

Protection delay time measurement

Charge and discharge protection

On-resistance test

Current limiting test

Temperature protection test

Products Advantages

Composed by virtual battery, short-circuit free, safety guaranteed.

Pluggable design of virtual battery enables it to be extended, range from 4S to 36S.

Software supports modular setting of testing projects, production validation and research and development, research-oriented testing, and other modes, supporting secondary development;

Support manual start testing and one click start automatic testing, including button start, barcode start, PLC start testing, etc;

Support multi-channel independent testing to improve efficiency and production capacity;
