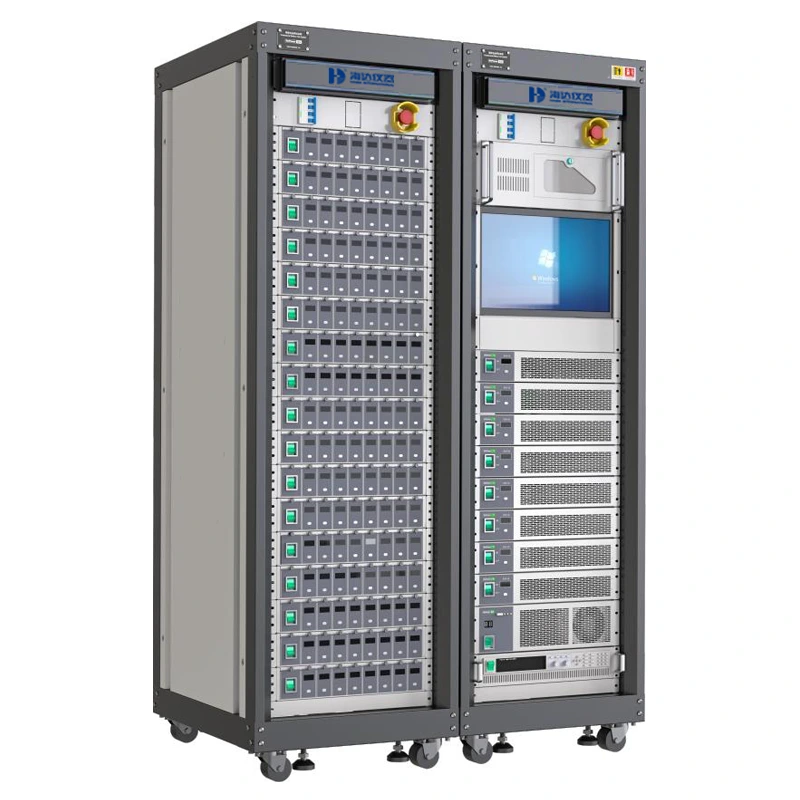

BMS battery management testing system

The power battery BMS testing system is used for parameter calibration, verification, and testing during the development and production of battery management systems (BMS) for electric vehicles and energy storage power stations. It also generates comprehensive test reports.

Model:

HD-H216

Inquiry

Write a Review

Product Description

BMS battery management testing system is used for parameter calibration, verification, and testing during the development and production of battery management systems (BMS) for electric vehicles and energy storage power stations. It also generates comprehensive test reports.

Product Specifications

Models	HD-H216-BMS-5V3A/5A/10A-24S~240S-200A/400A/600A
PACK Voltage	Voltage Measurement	5-1000V	0.1% F.S	0.1V
Simulated battery output	Voltage range	0.1-5V	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery sampling	Voltage range	0.1-5V	0.01%R.D ± 0.02% F.S	0.1mV
	Current range1	1-5000uA	0.01%R.D ± 0.1% F.S	0.1uA
	Current range2	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Simulated battery's ability of absorbs current	Current range	1-3000mA	0.01%R.D ± 0.1% F.S	0.1mA
Temperature simulation	Temperature range	-50℃~300℃	0.1%R.D ± 3% F.S	0.1℃
High precision constant current source	Deliver & absorb current range	0~200A/400A/500A/600A	±0.05% F.S	1mA
DC high-voltage power	Voltage range	0-1000V	0.1%RD±0.1%FS	0.1V
	Current range	0-10A	0.1%RD±0.1%FS	1mA
High Power Resistor	2 sets	5KΩ~10MΩ	0.1%RD±3%FS	5KΩ
DI/DO Module	Configure as required
AI/AO Module	Configure as required
CAN communication unit	4 sets
Basic function test	OCV test
	Power-on power consumption test
	Power loss power consumption test
	Power loss power consumption test
	Cell temperature accuracy test
	Total voltage comparison test
	SOC comparison test
	Insulation resistance accuracy comparison test
	Balancing function test
	Power supply voltage test
Alarm function test	Voltage/current/temperature/SOC alarm functions at all levels
Signal function tes	Voltage sampling test
	IO signal input and output test
Communication function	CANBUS / RS485 / RS232 / I2C / SUMBUS etc.

Products Function Test

Static current consumption test

Current precision verification

Balanced current test

Insulation resistance test and verification

Voltage precision verification

National standard charge signal simulation

Products Advantages

Composed by virtual battery, short-circuit free, safety guaranteed. Flexible and safe Operation. Can be freely replaced and expanded, max. support 400S;

Software supports modular setting of testing projects, production validation and research and development, research-oriented testing, and other modes, supporting secondary development;

Support manual start testing and one click start automatic testing, including button start, barcode start, PLC start testing, etc;

Support multi-channel independent testing to improve efficiency and production capacity;

Support battery pack working process simulation test, milliseconds synchronization;

Support long time aging testing and reliability testing.
