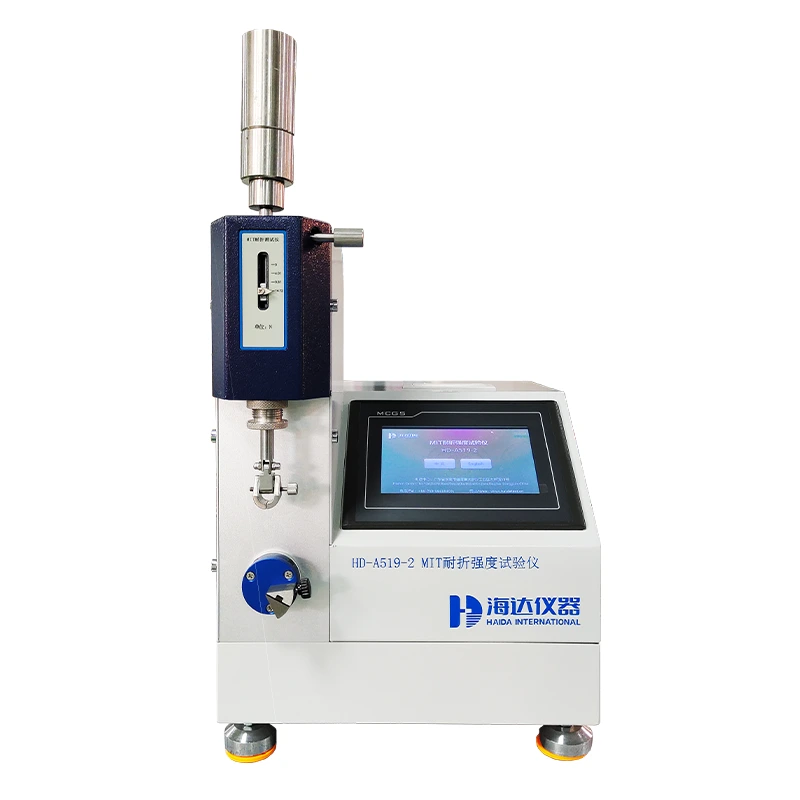

MIT foldingendurancetest machine the longitudinal and transverse directions, tension, and folding times of the sample can be set according to the test requirements. It is mainly used for folding strength testing of paper, fiber fabrics, metal sheets, plastic films, and composite materials.
Test Standard
GB/T 457-2008, GB/T 2679.5-1995, ISO5626, TAPPI-T423PM, ASTM-D2176 JIS-P8115,GB/T2679-5, GB/T450、 GB/T10739...
1.Adopted the Micro-computer controlled technology. Great automation (Reset and stop automatically). Sampling, measurement, control and display can be performed at the same time.
2.Precise positioning; automatic measurement, statistics, and storage of test results; with print & output test data function.
3.Adopted the three-phase motor with frequency converter, to make the test operation more stable and reduce the noise.
4.Equipped the weighing to have a calibration for the spring tension, to ensure the accurate and stability test result.
5.Used the surface of the smooth fixture shaft and the friction resistance of the built-in springis aims to to reduce the test error and the friction resistance.
6.The limit position adopts a photoelectric limit switch to avoid the impact to the limit position caused by the return of the fixture at the end of the test. Can be effectively extend the machineservice's life.
Item | Description |
Sample Size | 15mm×150mm the thickness of the sample is less than 1.25mm |
Load | 4.91N, 9.81N, 14.72N |
Control Method | PLC control with touch screen |
Folding Angle | 135°±2° |
Folding Speed | 175±10 r /min |
Folding Head Width | 19 ± 1mm |
Folding Mouth Radius | 0.38 ± 0.02mm |
Folding Head Nip Distance | 0.25mm/0.5mm/0.75mm/1.0mm (Other clearance chucks can be customized) |
Counter | LCD,0~999,999 |
Outside Dimension | 421x 357 x 526mm (LxWxH) |
Weight | 65 kg |
Power | AC220V,2.6A |
The surface of the fixture shaft is
The voltage loss during the transmission process is small
Touch Screen controlChinese/English Two Language
Accurate positioning, automatic measurement, statistical printing of test results and data storage function
