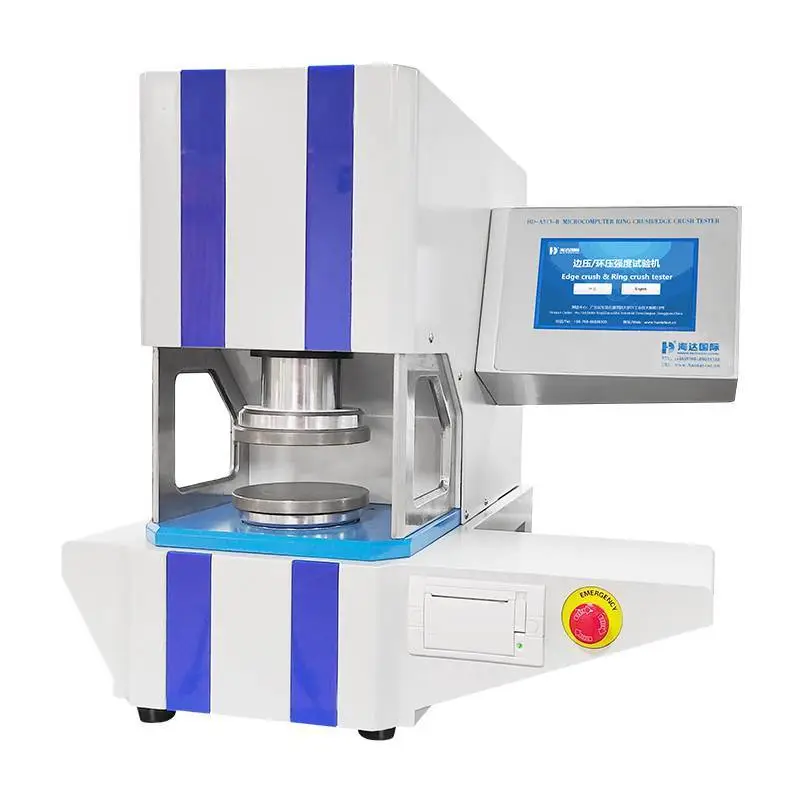

Computer Control Edge Pressure Ring Pressure Strength Tester 1

Computer Control Edge Pressure Ring Pressure Strength Tester 2

Computer Control Edge Pressure Ring Pressure Strength Tester 3

Computer Control Edge Pressure Ring Pressure Strength Tester

Model:

HD-A513-B

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Delivery:

15 days after order

Inquiry

Write a Review

Product Description

The Crush Test is designed as a robust, easy to-use instrument. Exactly what you need when performing crush tests. It is used to conduct Edge Crush test(ECT), Ring Crush Test(RCT), Flat Crush Test(FCT), Pin Adhesive Strength Test(PAT) for paper and paperboard or corrugated board, and flat crush strength (CMT) & CCT (vertical crush strength) of lab corrugating medium. The accuracy is achieved with a precision load cell, which is even accurate at low force values.

Product Specifications

Our specialists can help you find the perfect Computer Control Bursting Strength Tester.

Item	Description
Capacity	500kg high precision load sensor
Sensor	Load cell force sensor
Measuring units	Kgf, Ibf, N
Control mode	Touch screen control can be connected to computer control
Display mode	LCD touch screen display + test curve
Load Resolution	1/250,000
Load accuracy	Within ± 0.5%
Resolution	0.05N
Test speed	(12.5 ± 2.5) mm/min
Platen	φ120mm
Plate Stroke	0.1~80mm
Ring crush sample	152mm×12.7mm
Edge Crush Sample	100*25mm
FCT support block	Thickness 12mm,Ф120 mm
Statistics	Mean value, max. & min values of the series
Power	220V, 60HZ
Dimension of machine	155mm × 566mm × 555mm
Weight	Around 70kg
Options	ECT sample cutter & holder
	RCT sample cutter & holder
	PAT sample cutter & holder
	FCT sample cutter & holder
	Force Calibration indicator

Products Advantages

The crush resistance tester offers precise testing with durable fixtures, ensuring reliable results. It helps customers assess material strength, improve product quality, and meet industry standards efficiently.

Computer Control Edge Pressure Ring Pressure Strength Tester 5

📏Precise Measurement Accuracy

Provides highly accurate crush strength measurements, ensuring precise material evaluation for quality control.

Computer Control Edge Pressure Ring Pressure Strength Tester 6

💪High Load Capacity

Equipped with a robust frame to test materials with varying levels of crush strength, from soft to hard substances.

Computer Control Edge Pressure Ring Pressure Strength Tester 7

🖥️Intuitive User Interface

Features a user-friendly digital interface with clear readings, making operation simple and minimizing user error.

🛠️Durable and Long-Lasting

Constructed with premium materials for durability, ensuring consistent performance and extended machine lifespan.

Main Accessories

It is used to conduct Edge Crush test(ECT), Ring Crush Test(RCT), Flat Crush Test(FCT), Pin Adhesive Strength Test(PAT) for paper and paperboard or corrugated board, and flat crush strength (CMT) & CCT (vertical crush strength) of lab corrugating medium.

Computer Control Edge Pressure Ring Pressure Strength Tester 9

ECT – Edge Crush Test

ECT – Edge Crush Test. A sample of corrugated board is subjected to increasing force, Parallel to the flutes until it breaks. The ECT value is expressed as the breaking force is divided by the sample’s width.

Computer Control Edge Pressure Ring Pressure Strength Tester 10

RCT – Ring Crush Test

RCT –Ring Crush Test. to a certain size in the sample (corrugated paper)within a circular formation, between the upper and lower clamp pressure, can bear the most energetically before the sample is crushing.

PAT – Pin Adhesion Test

PAT – Pin Adhesion Test. Adhesion resistance is the maximum force required to separate the linerboard from the fluting with the help of a special sample holder.

FCT – Flat Crush Test

FCT – Flat Crush Test. A sample of corrugated board is subjected to increasing force, applied perpendicular to the surface of the board, until the fluting breaks. The FCT value is expressed as the force divided by the samples surface area.
