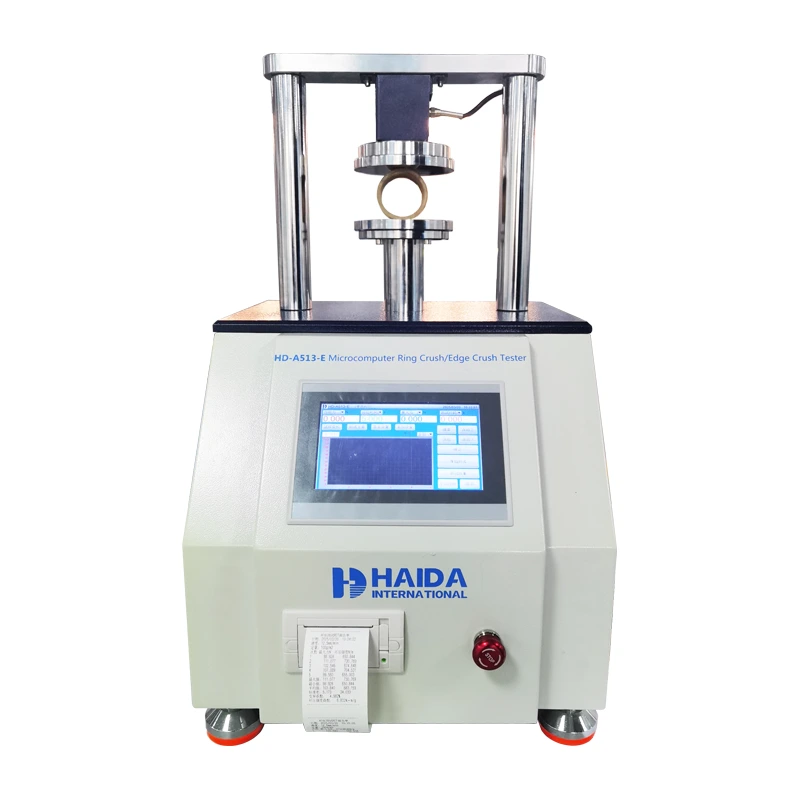

Paper Tube Crush Test Machine

It is used to test tube, paper tins, synthesis of tins, horizontal compressive strength.

Model:

HD-A513-E

Inquiry

Write a Review

Product Description

Paper Tube Crush Test Machine is used to test tube, paper tins, synthesis of tins, horizontal compressive strength. also known as paper tube pressure tester, paper tube compression tester, is the basic instrument for paper tube compression resistance test.

Product Specifications

Our specialists can help you find the perfect Paper Tube Crush Test Machine.

Model	HD-A513-E
Max. Capacity	500kg(5KN)
Control mode	Touch screen
Load Resolution	1/250,000
Unit	Kgf, Ibf, N
Load accuracy	Within± 0.5%
Max.Resolution	0.02N
Result Output	Mini-printer (thermal printer)
Test speed	(12±0.5) mm/min
Plate Stroke	0.1~120mm
Plate diameter	φ120mm
Platen parallelism	≤0.06mm
Statistics	Mean value, max. & min values of the series
Power	220V, 220W,
Dimension&Weight	(LxWxH) 400 × 400 × 650mm, 40kg

Products Advantages

The crush resistance tester offers precise testing with durable fixtures, ensuring reliable results. It helps customers assess material strength, improve product quality, and meet industry standards efficiently.

📊Accurate Measurement

Provides precise compressive strength readings, ensuring reliable data for material quality control and product testing.

🖥️User-Friendly Operation

Designed with an intuitive interface and easy-to-navigate controls, making it accessible to both novice and experienced users.

🎯High Precision & Reliability

Advanced sensors and systems ensure consistently accurate results with minimal deviation, enhancing test reliability.

⏱️Fast and Efficient Testing

Delivers quick test results, optimizing throughput and reducing time spent on each test for increased productivity.

Main Accessories

It is used to conduct Edge Crush test(ECT), Ring Crush Test(RCT), Flat Crush Test(FCT), Pin Adhesive Strength Test(PAT) for paper and paperboard or corrugated board.

ECT – Edge Crush Test

ECT – Edge Crush Test. A sample of corrugated board is subjected to increasing force, Parallel to the flutes until it breaks. The ECT value is expressed as the breaking force is divided by the sample’s width.

RCT – Ring Crush Test

RCT –Ring Crush Test. to a certain size in the sample (corrugated paper)within a circular formation, between the upper and lower clamp pressure, can bear the most energetically before the sample is crushing.

PAT – Pin Adhesion Test

PAT – Pin Adhesion Test. Adhesion resistance is the maximum force required to separate the linerboard from the fluting with the help of a special sample holder.

FCT – Flat Crush Test

FCT – Flat Crush Test. A sample of corrugated board is subjected to increasing force, applied perpendicular to the surface of the board, until the fluting breaks. The FCT value is expressed as the force divided by the samples surface area.
