Automatic Burst Strength Test Machine

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-A504-B

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

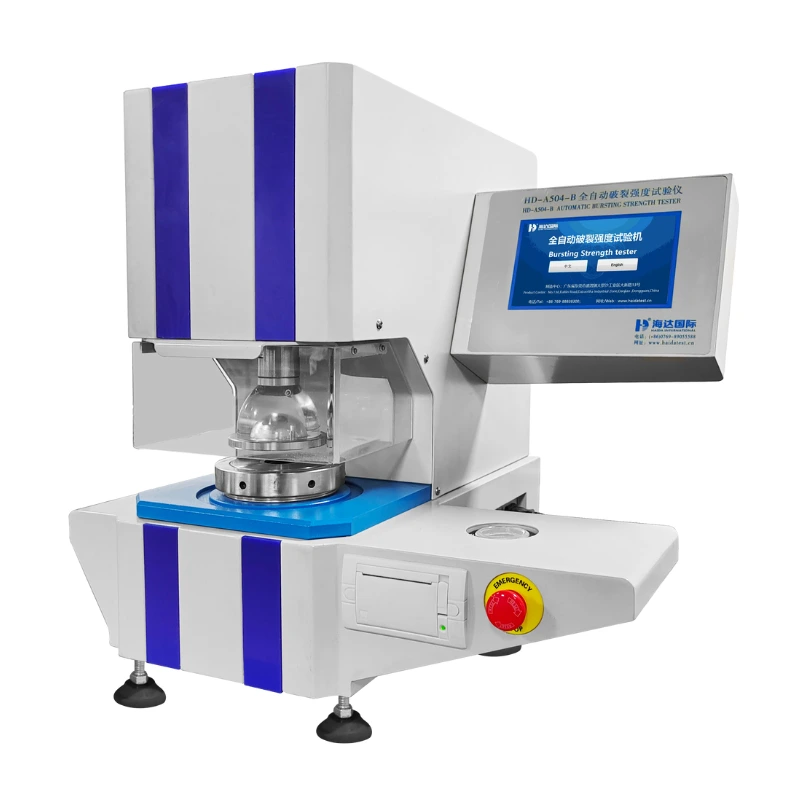

Automatic Burst Strength Test Machine

Applications:

Packaging automatic bursting strength tester is fit for products which are packaged by corrugated paper such as electronic instruments, electric ware, hardwares, bike, valise, food, shoe, furniture etc, to test the bursting-resistance strength of paper box; it can also test cloth and synthetic leather. The bursting strength tester is adapted with signal output of pressure. While specimen is breaking, the max. breaking value will be kept with the alarm buzzer & alert light automatically. Its Accuracy has promoted 20 times more than the traditional gauge.

Silk

Multi-layer Corrugated Cardboard

Cotton Cloth

Design Standard:

ISO 2759 GB/T 1539 ISO 2758 GB/T 454

Feature:

1. EQUIPPED WITH AUTOMATIC CLAMPING AND RELEASING DEVICE

2. Also equipped with automatic oil pressure Automatic return and automatic calculation functions

3. INDEPENDENT RESEARCH AND DEVELOPMENT CONTROL SYSTEM TEST SOFTWARE

4. Setting test parameter, controlling working status Data collection and analysis

6. Comes with micro fast printer

Specifications:

Item	Description
Capacity	0~12kgf/cm^2(0.1kgf/cm^2)
Clamping force	600~1200 KPа
Unit	kPa, Lbs/in², kgf/cm²
Resolution	0.1kPa
Sensing Method	Pressure Transmitter
Operation Method	Touch Screen Control
Ring Material	Stainless Steel SUS304
Inner diameter of clamp ring	upper clamp ring: Φ30.5±0.1mm lower clamp ring: Φ33.1±0.1mm
Maximum Stroke	18mm (without clamp)
Pressurization Speed	90±5ml/min
Dimension (L×W×H)	560mmx500mmx600mm (approx.)
Weight	Appro. 60kg
Power	Single-phase, 220V, 60 Hz
Hydraulic oil	100% silicone oil
Required Air Source	≥0.6Mpa (provide by customer self)
Accessories	one piece lower pressure rubber film, one piece wrench, 10 pieces lower pressure correction sheet, one bottle silicon oil, one piece English user manual

Structure

Control Panel

Display Clear / Accuracy / Easy to Operate

Micro Printer

Fast / High Quality / Accurate Data

Low Pressure Lower Plate

Acrylic Protection Device Bursting is Clearly Visible

Automatic Burst Strength Test Machine 10

Barometer

Durability / Fast Response Stable Performance
