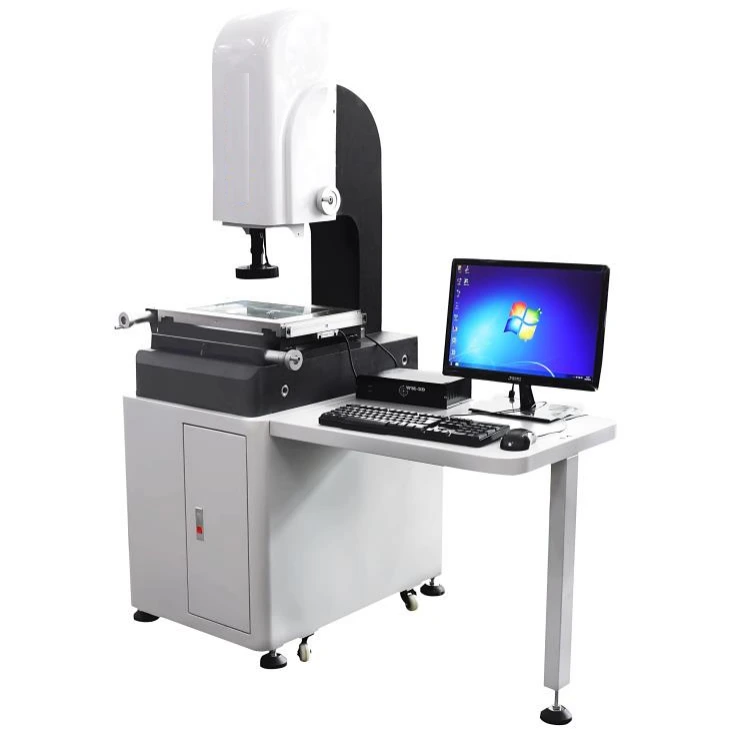

VideoMeasuringMachine HD-U2010
TECHNICAL PARAMETERS
Model | HD-U2010 | |
Working table | X stroke (mm) | 200 |
Y stroke (mm) | 100 | |
Z stroke (mm) | Effective space 245mm focusing stroke 200mm working distance 90mm | |
Glass Table Size (mm) | 230x130 | |
Metal Table Size(mm) | 220x350 | |
Glass bearing (kg) | 30 | |
Digital measurement system | Measurement accuracy | (3+L/200)um |
Grating scale resolution | 0.0005 μm | |
3D probe system (optional) | UK Renishaw probe set, Probe comes with ¢1//¢2 | |
Lighting system | CCD | Camera: Japan Sony color 1/3"CCD 780TVL camera magnification 30-210X |
Lens | 0.7 ~ 4.5x high definition manual card position doubling lens | |
Lighting | Surface light source and transmission light source LED cold light source, long life, adjustable brightness (5 ring 8-zone light source program-controlled light source) | |
Laser positioning | Laser positioning indicator | |
Machine Size (mm) | 500x700x1100 | |
Weight（kg） | 150 | |
Power | 220V（AC）50Hz (Can be adjusted) | |
