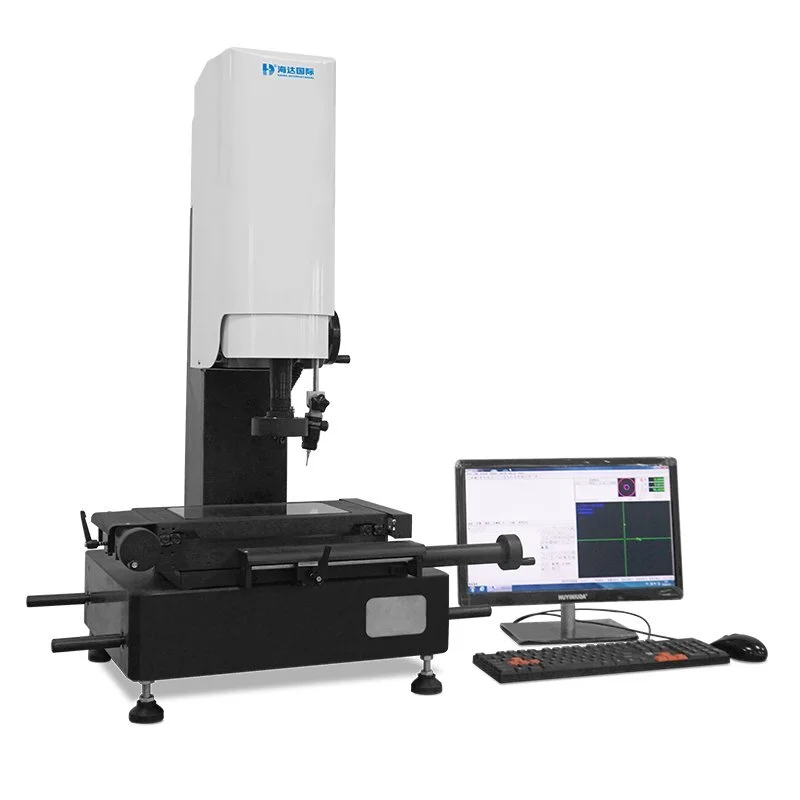

High Precision Image Measuring Instrument

High Precision Image Measuring Instrument designed to measure the two coordinates

in all application areas and is widely used in different kinds of precision finishing industries,

such as: machinery, electronics, ironware, instruments, plastics and so on.

Features

1. High Precision Image Measuring Instrument  uses U.S.TEO 1 / 2 color CCD cameras,

    the cross-line generator is the measuringaiming system.

2. Digital measurement and data processing system are made up by the two coordinate’s studio,

    the optical grating and the SDK -3000 data card.

3. High Precision Image Measuring Instrument has various functions of data processing,

    display, input and output, particularly; the work piece straightening function is very useful.

4. High Precision Image Measuring Instrument has RS-232 interface with a computer

    and specialized measurement software which can also processes and output circular mapping.

5. The marble base and column, high stability.

Function

1. High Precision Image Measuring Instrument can measure point, line, circle,

   arc and oval, rectangular and improve the accuracy with the multi-point positioning function.

2. High Precision Image Measuring Instrument  has many features,

    such as combination of measurements, center structure and the intersection of structure,

    the midpoint of construction, line structure, a round structure and structural point of view.

3. Coordinate translation and coordinates straighten out is to make measurement more

    convenient and efficient and improve measurement efficiency.

4. Macros can measure the same parts faster and more convenient volume and improve

    the measurement efficiency.

5. Measurement data directly input into AutoCAD and become a full work circle;

    the data also can be entered in Excel and Word to conduct statistical analysis.

6. Record user program, editing and execute command.

Metal table size

404 x 228mm

510 x 290mm

Glass table size

260 x 160mm

350 x 280mm

Travel: X,Y

200 x 100mm

300 x 200mm

Net Weight

110kg

200kg

Dimension

700 x 600 x 900

970 x 670 x 940

Z-axis travel:200mm                    Work distance:95mm

Resolution of X,Y,Z scales:0.0005um           X,Y-axis accuracy:(3+L/200)um

Video system

Camera: Color 1/3``CCD camera

Optical Magnification:0.7~4.5X

Digital magnification:30~230X

Object view-field:7~1.1mm

Contour and surface illumination: Ring LED and brightness can be setup

Power: AC180V~260V/50Hz

Software: Quick Measuring 2.0
