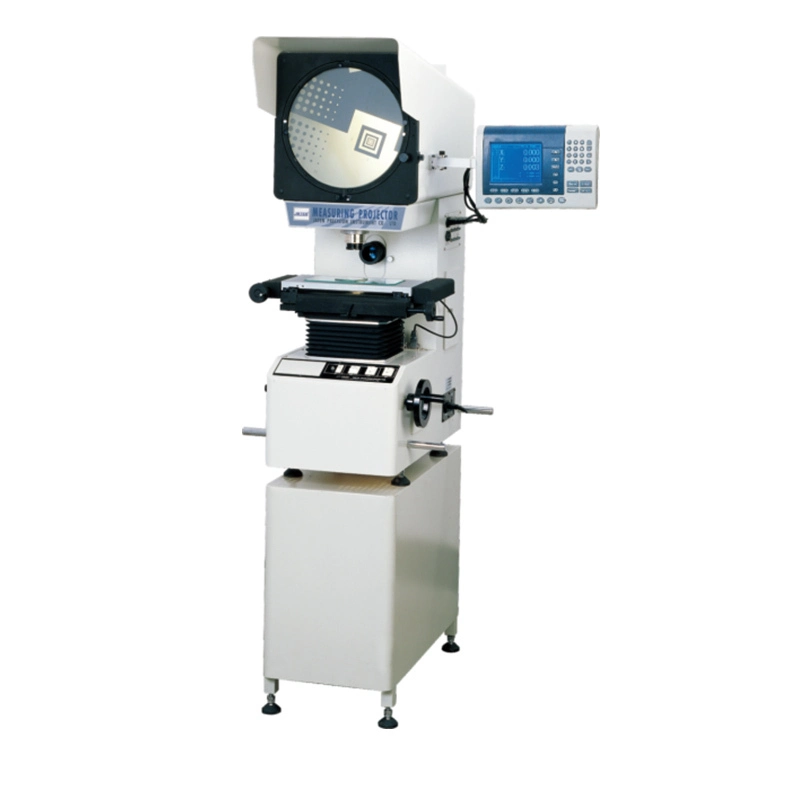

HD-U300-2 Digital Projector Profile

APPLICATIONS& TEST PURPOSE

The quality of the optical system of this product is excellent, the image of the objective lens is clear, and the magnification is accurate. Under transmitted light illumination, the contour measurement error is less than 0.08%; the coordinate measurement indication error can reach (3+L/200) µM; it is equipped with a special micro-printer and foot switch, which is very convenient for data output and sampling. The workpiece image can be a full upright image or an inverted image. The Z-axis lift of this projector adopts a guide rail transmission method, which improves the stability and durability of the fuselage. The projector has clear imaging and accurate magnification.

 ADVANTAGES

Compared with similar products, the measurement projector produced by our company has the following characteristics:

1. This instrument can efficiently detect the contours and surface shapes of various complex workpieces, such as: templates, stamping parts, cams, screw spinning, gears, forming milling cutters and other tools, knives and parts, as well as terminals, clocks, and steel Stone etc.

2. It has a wider range of applications. It is widely used in machinery, molds, meters, electronics, light industry and other industries. It is an indispensable measurement verification equipment for measurement rooms and production workshops.

3. Instrument measurement accuracy: (3+L/200) μm

4. Digital display resolution of X and Y coordinates: 0.0005mm

5. Data processing system: DP100 multifunctional data processing system, full Chinese display can do multi-point sampling, coordinate rotation, point, line, distance, angle detection RS-232 data output, can display measurement graphics.

6. It adopts 45°angle turbine and vortex rod to lift.

TECHNICAL PARAMETERS
