Xenon lamp weathering test chamber
Xenon lamp weathering test chamber
The usage
Xenon lamp weathering test chamber is a comprehensive climate test device, in addition to climate aging test, but also high-light-resistant materials can be tested, that polymer material exposed to simulated sunlight through the artificial spectrum of artificial light down the evaluation Lightfastness of materials
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
Specifications:
Item | Specification |
Internal Dimension (W*D*H) | 800*800*800mm |
External Dimension (W*D*H) | 1450*1500*2000mm |
Inner chamber material | SUS 304 # Stainless Steel, Anti-rust, easy to clean |
Outer chamber material | Stainless steel |
Chamber Temperature | 40±3℃ |
Temperature Uniformity | ≤3℃ |
Blank panel temperature | 65±3℃ |
Humidity Range | 50%-90% |
Irradiated intensity | 0.35±0.02w/m²at 340nm |
Xenon lamp power | 6.5KW water-cooled xenon lamp x 1pc |
Control system | PLC controller, touch screen |
Distance from specimen to arc center | 250~300mm, Effective exposure area 6400cm2 |
Max. Sample dimension | 200*90mm Thickness＜20mm |
Filter | Daylight filter |
Door seal | Silicone rubber seal |
Temperature sensor | PT100 high precision temperature sensor |
Air circulation system | Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity |
Cooling ventilator | Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system |
Cooling ventilator | France Tecumseh compressor |
Power | AC380V, 50Hz, three phase |
Safety Protection | Over heat protection for fan, Over load protection for cooling system, Over pressure protection for cooling system, Over temperature protection, Over heat and over flow protection for water pump, Leakage protection, Water shortage protection, Auto stop after failure warning |

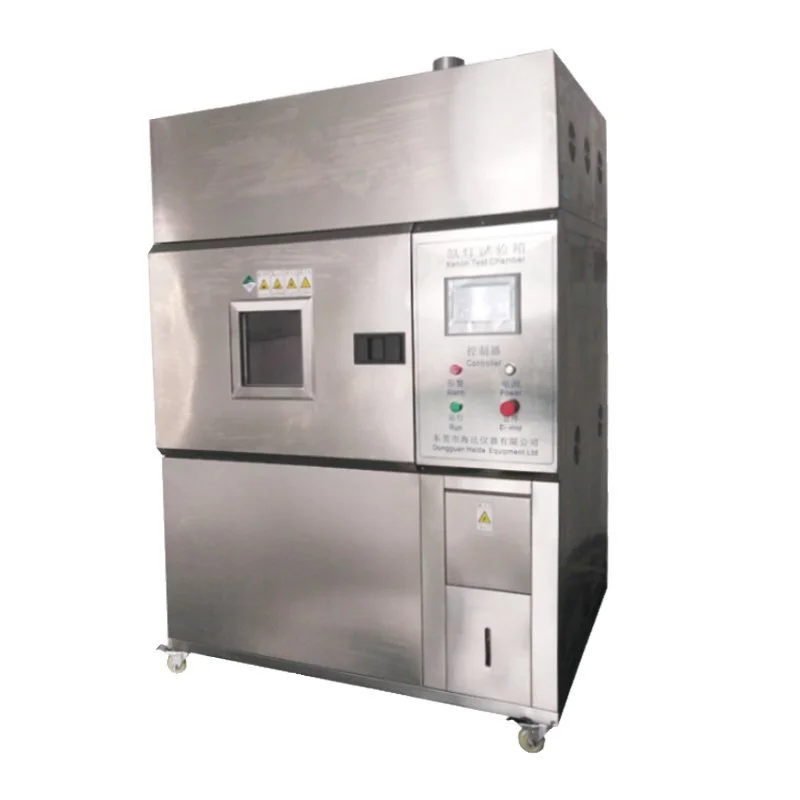

The images of this machine
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
