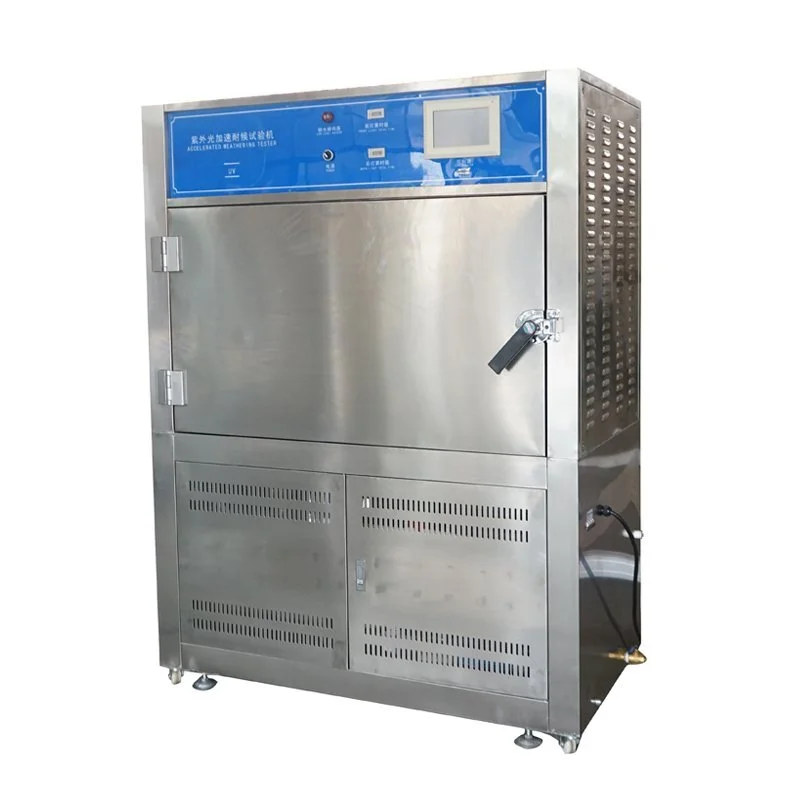

UV light aging tester
UV light aging tester
Product description：
UV light aging tester chamber ,as a kind of environment test chamber, can simulate the sun, rain and dew to damage the material, UV machine using UV lamp simulate the effect of sunlight, cold rain and dew.
Damage types include:
bleaching, discoloration, loss of light, power, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
The main technical parameters：
The surface of the specimen from the lights from the nearest parallel to the surface | about 50mm |
Wavelength range | UVB band wavelength 275 ~ 320nm, medium wave ultraviolet erythema effect |
Within the radiation intensity 1W/m2/340nm |
|
Temperature Resolution | 0.1 ℃ |
Light Temperature range | 50 ℃~ 70 ℃/ temperature tolerance of ± 3 ℃ |
Condensing temperature range | 40 ℃~ 60 ℃/ temperature tolerance of ± 3 ℃ |
Blackboard thermometer measuring range | 30 ~ 80 ℃/ tolerance of ± 1 ℃ |
Temperature control | PID self-tuning temperature control mode |
Humidity range | about 45% ~ 70% R.H |
Sink requirements | water depth less than 50mm, and a water supply automatic controller |
Standard Specimen size | 75 × 150mm 48pcs |
Recommended instrument environment | 5 ~ 35 ℃, 40% ~ 85% R • H, 300mm from the wall |
Voltage | 220V ± 5%, single-phase three-wire, 50Hz, 10A, 15A GFCI requirements |
Function:
Meet Specifications
* Meet customer requirements
* Stay ahead of government regulations
Prevent Field Failures
* Improve quality and durability
* Enhance reputation
* Assure product performance
Gain a Competitive Edge
* Save on material costs
* Expand product lines
* Enter new markets
* Outrun the competition
Chamber Structure
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of SUS 304 steel plate.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Control System:
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiato meter with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.
Test Specimen Mounting:
The standard test specimen holder accommodates 2 panels 75×150mm. The test panels are actual the side wall of the chamber. To properly seal the chamber, it is important to have every panel holder filled with specimens or blank panels and to have panel holders in place.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
