1.Product introduction

Ozone aging test chamber is simulation and strengthen the ozone in the atmosphere conditions, effects of ozone on the law of the rubber, rapid identification and evaluation of rubber anti-aging properties of ozone and antiozonants protective efficacy of the method, and then take effective anti-aging measures to improve the rubber products the life of reference standards: GB / T7762-2003, GB / T2951.21-2008

2.Main function

Ozone Aging Test Chamber Can be used to test rubber products with static tensile deformation, such as vulcanized rubber, thermoplastic rubber, cable insulating bush; expose the test specimens to the sealed air in the test chamber without light and with constant ozone concentration and constant temperature according to predetermined time, and then observe the cracks on test specimens’ surface and the degree of change of other properties to evaluate the rubber’s ozone aging resistance properties.

3.Main feature

Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.

4.Corresponding standard

JIS K 6259 , ASTM1149 , ASTM1171,   ISO1431,  DIN53509 , GB/T13642, GB/T 7762-2003

 GB 2951

5.Applicable industries

It is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.

6.Technical parameter:

Chamber Structure And Features:

1, Internal material is imported high quality mirror stainless steel plate.

2, External material adopts stainless steel with paint spray.

3, Insulation material: high-density glass fiber

3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

5, Chamber bottom has high quality universal wheel and fixed foot cup.

6, Observation window uses multilayer hollow tempered glass.

7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.

Control System:

1, With imported micro-computer LCD controller to control the temperature.

2, PID control

3, With auto calculation function to reduce the setting inconvenience.

4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control

5, Temperature measurement: SUS#304, PT 100

Standard Configuration：

1, Power line x 1pc

2, Sample holder x 1set

3, Fuse x 1set

4, Operation manual x 1set

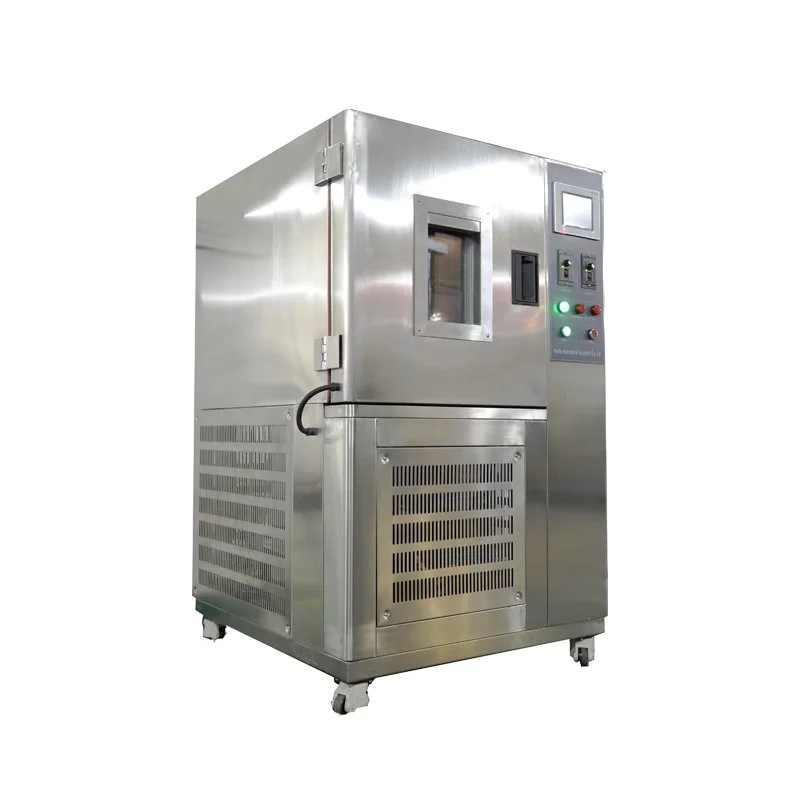

Ozone aging test chamber  view:
