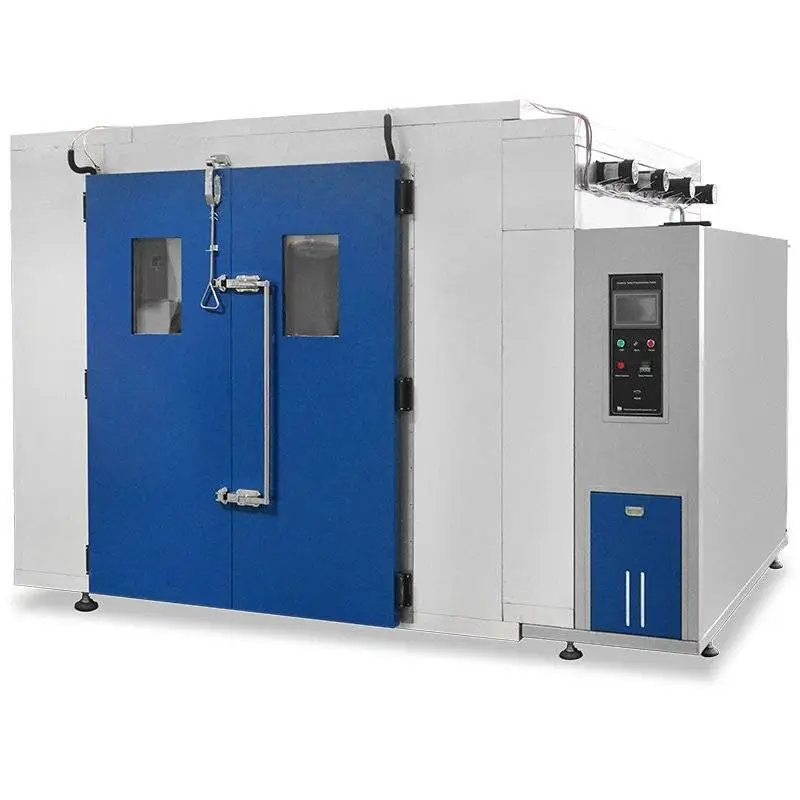

ISTA Walk-In Environmental Chamber
Applications:
Haida’s multipurpose walk-in environmental chamber is the perfect test site for everything from testing against humidity, temperature, and various climate conditions. This walk-in environmental chamber provides supreme temperature testing for large components and equipment.
When your testing requires walk-in rooms, choose Haida. Our walk-in environmental chamber features automated process control, energy efficiency, and a vast range of features and options. The system software is independently developed by us.
Haida walk-in environmental chambers are used worldwide for many testing applications. Almost every tool, product, or component that is used in the home, factory, or field is tested with environmental simulation equipment.
![HD-E705 Walk-in Test Chamber 7]()
![HD-E705 Walk-in Test Chamber 8]()
![HD-E705 Walk-in Test Chamber 9]()
![HD-E705 Walk-in Test Chamber 10]()
1.Temperature humidity test room has a big temperature / humidity range and can meet user's entire requirement. It adapts to unique balance thermoregulation & humidifying way and can get a safety, precise temperature humidity environment. It has stability, balance heating, humidifying function and also can proceed in high precision, high stability temperature humidity control.
2.Temperature humidity test room is equipped with high precision intelligentized thermoregulator, temperature and humidity adapt LCD display control 7551 program instrument ( it also can use OYO-5461 according to user requirement), can choose the temperature humidity recode instrument.
3.Temperature humidity test room can choose computer for remote control according to the function
4.Automatic select the refrigerating circuit, the automatic control instrument can automatic choose operate refrigerating circuit's function according to the temperature set value, and direct-on line starting refrigerating machine in high temperature condition which can cooling directly.
5.The interior door is equipped with big observation window which convenient for viewing the test status of specimen.
Test Conditions: Low temperature and high humidity 5℃ 85%RH & High temperature and low humidity 60℃ 15%RH
![HD-E705 Walk-in Test Chamber 11]()
Specification | HD-E705 |
Temperature Range | -50c To +100c (can be customized) |
Humidity Range | 40% To 98% Rh (can be customized) |
Dimension (Internal) (w x d x h) | 1500 x 1500 x 3000 Mm |
Dimension (External) (w x d x h) | 2850 x 1700 x 3200 Mm |
Ramp | Variable, Temp. 0~5c / Min & Humidity 0~5%/Min In Average, No Load |
Accuracy | Temp. ±1c, Humidity ±2.5%Rh |
Interior Walls | Stainless Steel 304 |
Exterior Walls | Cold Rolled Stell Plate With Baking Finish |
Temperature & Humidity Measurement And Controller | 32 Bit Control And Monitoring System. Interface Facility With Rs232 Programmable Temp. Humid. Controller |
Viewing Window | Multi Pane Glass Window Size |
Port Holes | 50 Mm Diameter For Wire Routing |
Power Supply Requirement | Three Phase, Ac380 v ± 10 %, 50 Hz |
Sound Pressure Level | <72db (a) |
Condenser Cooling | Water Cooled |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
