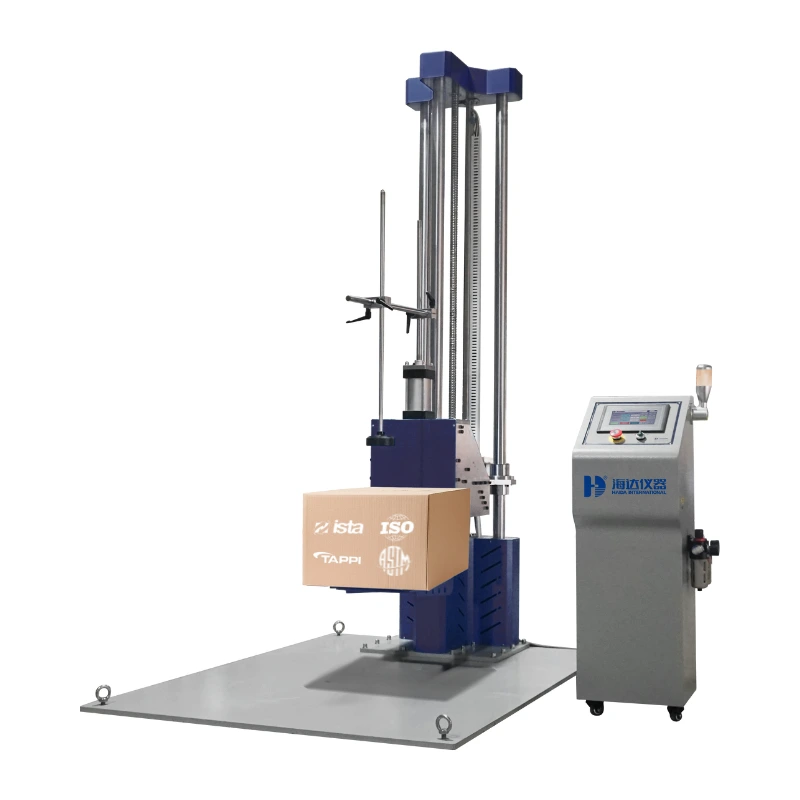

ISTA Pneumatic Single-Wing Drop Tester
Applications:
Pneumatic Single-Wing Drop Tester is suitable for testing the damage of product packaging when it is dropped, and assessing the strength of impact resistance during transportation and handling.
This machine can perform free drop test on the surface, corner and edge of the package. It is equipped with a digital height display and an encoder for height tracking, so as to accurately give the data of the product drop height.
![HD-A520-Q Pneumatic Single-Wing Drop Tester 4]()
Loading
Simulate the degree of drop impact during loading
![HD-A520-Q Pneumatic Single-Wing Drop Tester 5]()
Transport
Simulating the effect of falling impact in the process of automobile transportation
![HD-A520-Q Pneumatic Single-Wing Drop Tester 6]()
Handling
Simulating the impact strength of the package in the process of handling
Design Standatd:
ISO 2248, GB/T 4857.5-1992, JIS Z0202-1994.
1. Adopt single-arm&Three-column structure, with functions of pneumatic reset, pneumatic control drop and electric lifting device;
2. Equipped with a buffer device to reduce damage to other parts of the instrument due to the impact of the sample holder, thereby increasing the life of the instrument.
3.Compared with the traditional chain up and down transmission, this machine adopts screw drive, so that the instrument becomes more stable and the test results are more accurate.
4. Touch screen and PLC control, can set the test height and the number of drops etc.
5. The stroke limit protection and leakage protection design ensure safe operation.
6. Data indicators: drop height 300-1800mm
Item | Description |
Control method | PLC control |
Display method | Touch screen display |
Drop height | 300-1800mm |
Height error | ≤1% |
Max. weight of sample | 0~100kg |
Arm size | 273mm x440mm(L*W) |
Max. size of sample for face | 800×800×700mm (L*W*H) |
Max. size of sample for Edge | 800×800×700mm (L*W*H) |
Max. size of sample for Angle | 550×550×500mm (L*W*H) |
Motor | 200W adjustable-speed motor |
Dimension | 1200×1700×2400mm (L*W*H) |
Weight | Approx 600 kg |
Air source | ≥0.6Mpa |
Power | 1∮ AC220V,250W |
