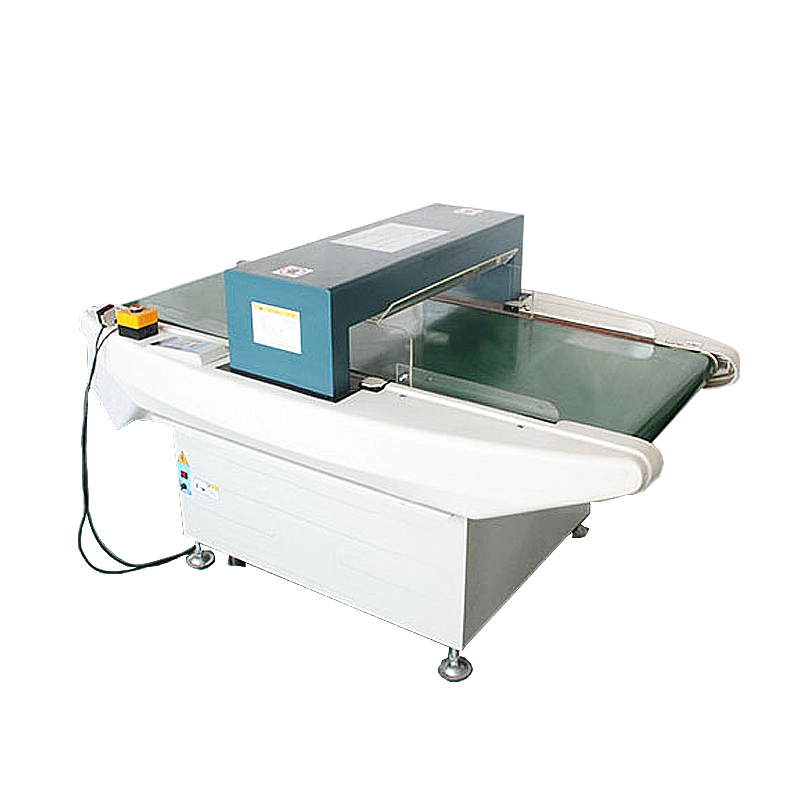

Textile Needle Detector
Textile Needle Detector
Textile Needle Detector Video
Textile Needle Detector PDF
Application
Textile Needle Detector also a kind of textile testing equipment ,is used to detect the broken needles in textile, shoe nail, iron wire and other metal pieces left inside toys, garments, textile ,shoes ,textile testing ,etc.
Spectifications
| Detecting method | Magnetic induction |
| Detecting width | 600mm |
| Detecting height | 100mm-120mm-150mm-200mm |
| Detecting adjustment | Stepless adjustment |
| Detecting ability | 0.8-1.0-1.2-1.5mm iron ball |
| Alarm method | Buzzer |
| Belt speed | appr. 40m/min |
| Power supply | AC110-230V,50-60Hz |
| Rated output | 100W |
| Dimension | 1650×1050×900mm |
| Weight | 175Kg |
Features:
Textile Needle Detector
Japanese technique, anti-disturbance computer chip integrated circuit
High sensitivity, easy to maintain
Specially has the protection circuit, it will auto-stop if no detection goods in 10 minutes
Has the switch function for B/C (supplementary material/product), adapt to detect different products
Can keep a long time to work, the efficiency can reach 100% when properly used
When detect the broken needle, or Fe, it will alarm by sound and light, the engine will stop and return to the start point, and then move automatically again.
To adjust the sensitivity between 0-10 level, operation board is light touching-type, easy to operate
Can calculate the qualified and unqualified amou
