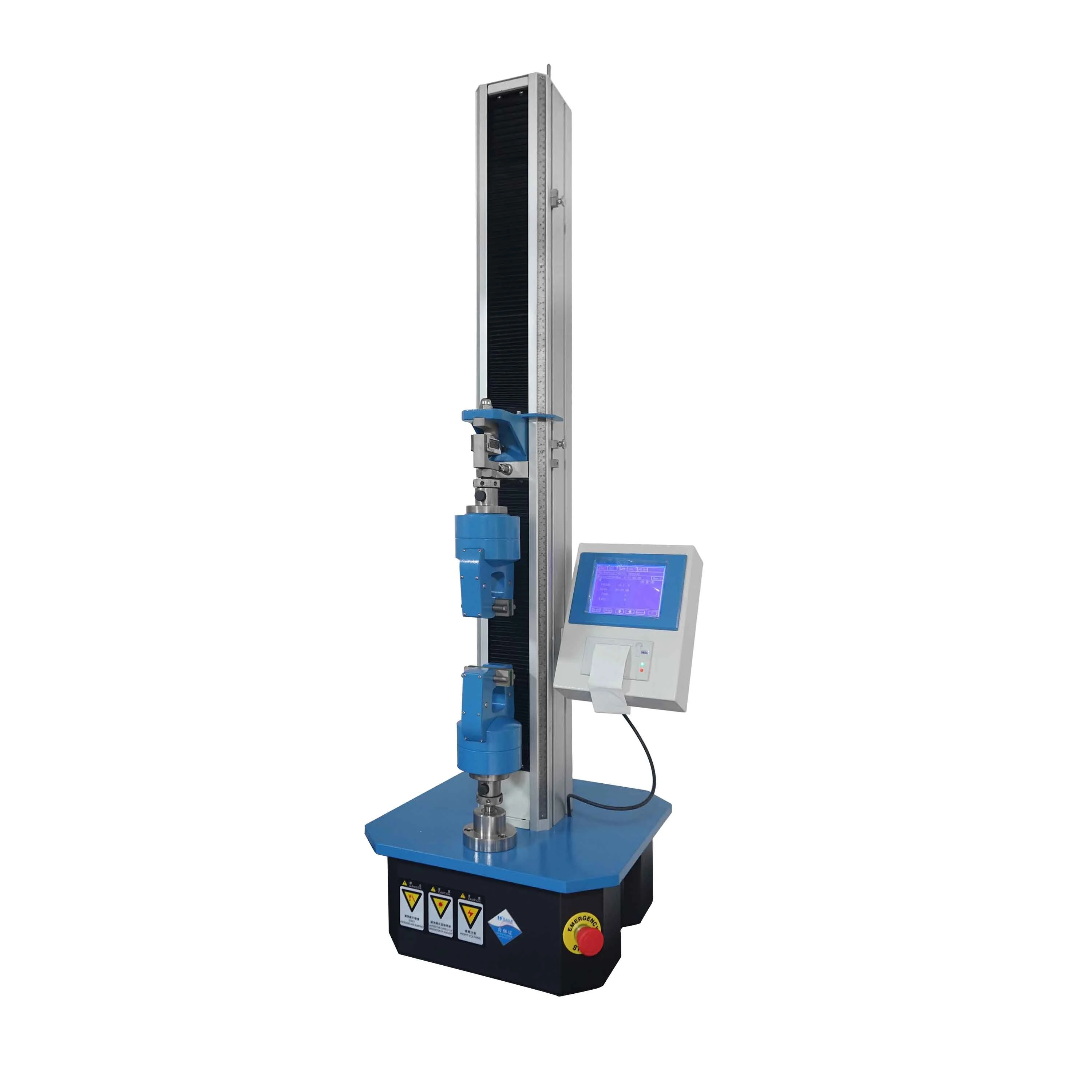

Yarn strength Tester for Cotton yarn
Yarn strength Tester for Cotton yarn
Product description
This Yarn strength Tester is use to determine the breaking force and break elongation test for single yarn made of cotton , wool , jute ,core-spun yarn etc .
Test standard:GB/T 3916,ISO 2062
Technical parameter
Working Mode | CRE |
Control model | LCD display(can be connect computer) |
Load Measure Range | 5000cN |
Load accuracy | ±0.1% |
test times | 300 times |
Speed | 20~1000mm/min( Stepless adjustable) |
Elongation accuracy | ±1% |
gripper | Single gripper |
Clamping distance | 40~1000mm(adjustable) |
Power | AC220V±10% 50HZ 0.1kw |
Elongation test range | 0~250mm(when clamping distance is 500mm) |
Outside dimension | 680X350X960mm |
