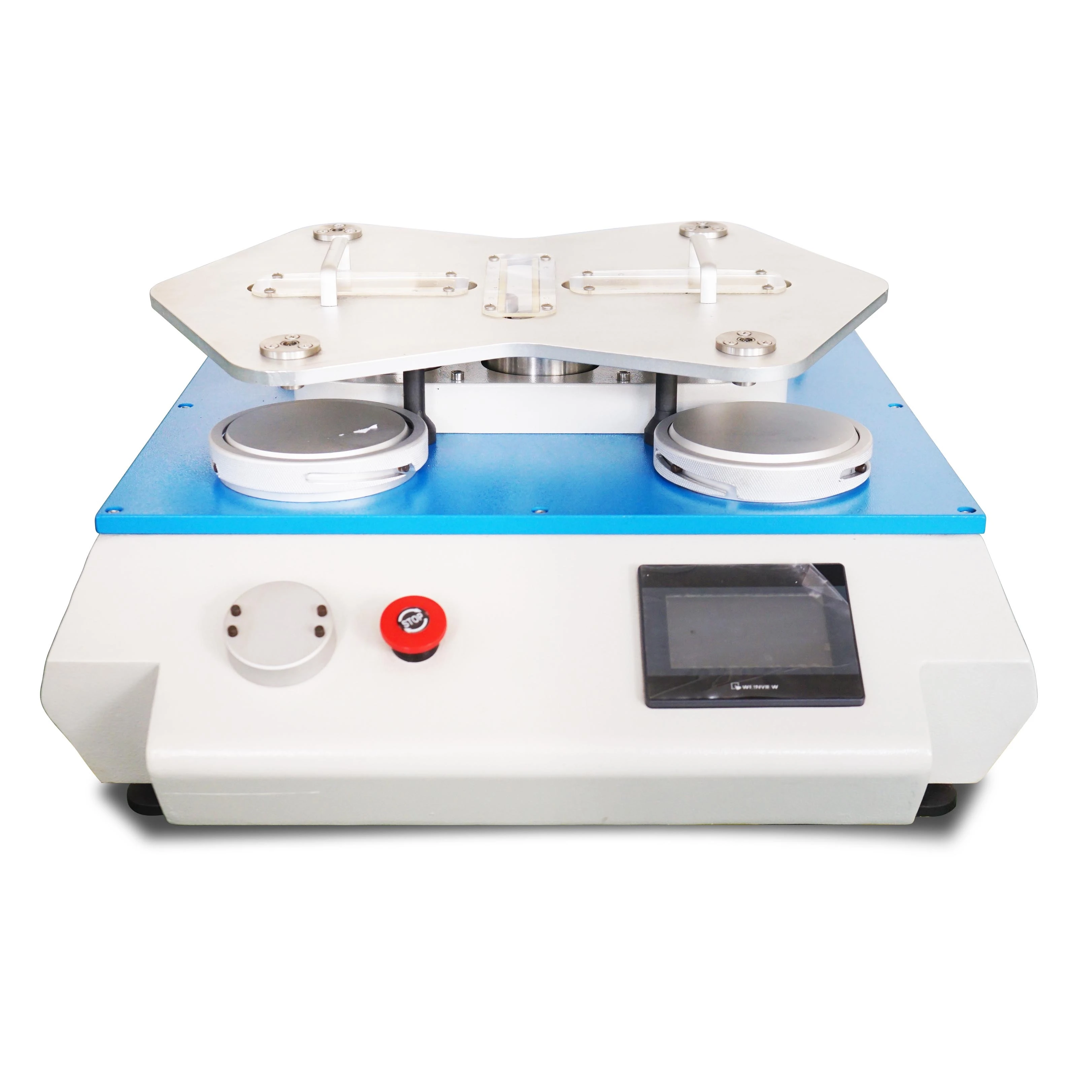

Martindale Abrasion Tester

Feature

Martindale Abrasion Tester is mainly applies to the resistance test of textile and outside layer, lining or under layer of the footwear or the similar fabric. Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.

The parameters

Working stations: 4

Drive system is PLC, programmable control with large touch-screen

Abrasion test

· Max stroke of movement 60.5+/-0.5mm

· Weight of holder and spindle 200+/-1g

Pilling test

· Max stroke of movement 24+/-0.5mm

· Weight of holder and spindle 155+/-1g

Product Features:

1, Adopt with LCD touch screen, clear and easy to operate;

2, With pill and abrasion testing progress, can meet various international standards;

3, Use reduce and increase counting testing method for easy operation;

4, With imported PLC, reliable and suitable for long time test.

Test Standard :

ASTM D4970, ISO12945-2 and other pilling degree test;

ASTM D4966, ISO12947 and other fabric abrasion tests.

Included Accessories (1 for each station)

Abrasion test (To ISO 12947-1)

· Mounting weight (2.5+/-0.5kg, for both abrasion and pilling test)

· Pilling instruments holders (Dia. 38 mm)

· Loading Weights (395+/-7g)

· Loading Weights (595+/-7g)

Pilling Test (To ISO 12945-2)

· Linear adaptor. To convert to straight-line motion.

· Sample Retaining Rings for pilling test

· Pilling test holders (Dia. 90mm)

· Loading Weights (260+/-1g)

1 Auxiliary device for specimen mounting.

1 set of abradant fabric, wool felt, backing foam for each work station.
