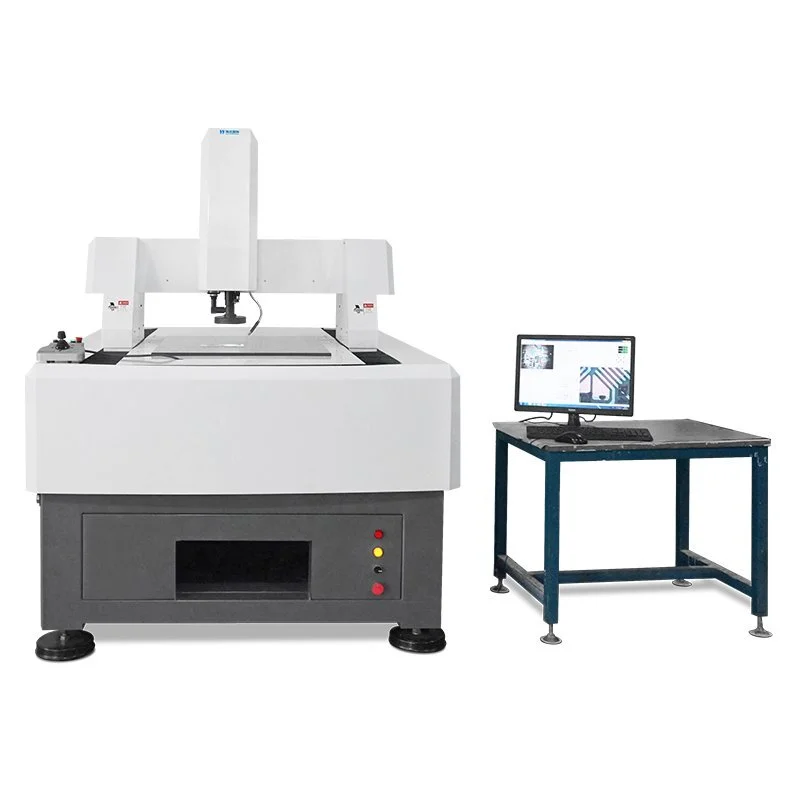

Large Video Optical Measuring Machines 1

Large Video Optical Measuring Machines 2

Large Video Optical Measuring Machines 3

Large Video Optical Measuring Machines

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

VML-6060CNC

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

Large Video Optical Measuring Machines

The Product Description:

Large Video Optical Measuring Machines graph constructive functional key and visual tool functional key is separated by color and grouped tactically, Optical Measuring Machines makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.
● Graph function key is black.
● Graph constructive key is red.
● Visual tool function key is black and green.

VML-CNC Characteristics:

● Modern shape design;
● Fashionable auto-painting-craftwork;
● Steady granite base;
● Stable imported V-shape guide;
● Precise metal and glass worktable;
● High-speed 3-axis CNC driven motor;
● Adjustable USB 4division ring LED illumination;
● Advanced Pomeas 0.7～4.5X Zoom lens;
● Wonderful SONY 1/2`` Color CCD camera;
● Powerful 2.5D measuring software QuickMeasuring 4.1 version.

VML-CNC Specifications:

Mode	VML-6060CNC	VML-1080CNC	VML-1210CNC
Order#	52-661	523-181	523-121
Metal table size	800x800mm	1140x1000mm	1140x1360mm
Glass table size	650x650mm	1050x850mm	1050x1250mm
Travel: X,Y	600x600mm	1000x800mm	1200x1000mm
Z-axis Travel	200mm	200mm	200mm
Resolution	0.0005mm	0.0005mm	0.0005mm
X,Y-axis accuracy	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um
Measuring software	QM4.1	QM4.1	QM4.1

VML-CNC Standard Delivery:

Standard Delivery	Order#	Standard Delivery	Order#	Standard Delivery	Order#
Measuring Software	QM4.1	CCD Camera MC3	484-123	Pomeas detent zoom lens	421-101
Calibration Block	581-801	Capture Card 7130	527-130	LED Lightsource	425-400
Scale Transfer U3	564-301	Power,AV,RS232 Cable		Dell PC host

VML-CNC Optional Accessories:

Optional Accessories	Order#	Optional Accessories	Order#	Optional Accessories	Order#
Pomeas Coaxial zoom lens	421*001	Pomeas motor zoom lens	421-001	Operation Joystick	581-542
Working Cupboard ST03	581-631
