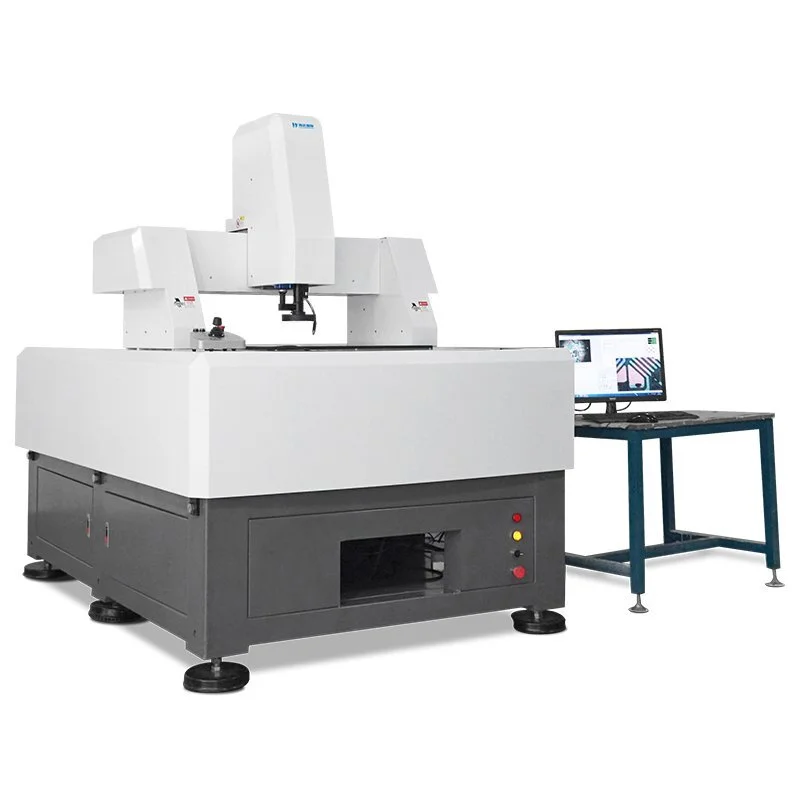

Large Video Measuring Machine

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

The Product Description:

● Graph function key is black.
● Graph constructive key is red.
● Visual tool function key is black and green.

Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.

VML-CNC Specifications:

Mode	VML-6060CNC	VML-1080CNC	VML-1210CNC
Order#	52-661	523-181	523-121
Metal table size	800x800mm	1140x1000mm	1140x1360mm
Glass table size	650x650mm	1050x850mm	1050x1250mm
Travel: X,Y	600x600mm	1000x800mm	1200x1000mm
Z-axis Travel	200mm	200mm	200mm
Resolution	0.0005mm	0.0005mm	0.0005mm
X,Y-axis accuracy	≤(3+L/200)um	≤(3+L/200)um	≤(3+L/200)um
Measuring software	QM4.1	QM4.1	QM4.1

VML-CNC Characteristics:

● Modern shape design;
● Fashionable auto-painting-craftwork;
● Steady granite base;
● Stable imported V-shape guide;
● Precise metal and glass worktable;
● High-speed 3-axis CNC driven motor;
● Adjustable USB 4division ring LED illumination;
● Advanced Pomeas 0.7～4.5X Zoom lens;
● Wonderful SONY 1/2`` Color CCD camera;
● Powerful 2.5D measuring software QuickMeasuring 4.1 version.

VML-CNC Standard Delivery:

Standard Delivery	Order#	Standard Delivery	Order#	Standard Delivery	Order#
Measuring Software	QM4.1	CCD Camera MC3	484-123	Pomeas detent zoom lens	421-101
Calibration Block	581-801	Capture Card 7130	527-130	LED Lightsource	425-400
Scale Transfer U3	564-301	Power,AV,RS232 Cable		Dell PC host

VML-CNC Optional Accessories:

Optional Accessories	Order#	Optional Accessories	Order#	Optional Accessories	Order#
Pomeas Coaxial zoom lens	421*001	Pomeas motor zoom lens	421-001	Operation Joystick	581-542
Working Cupboard ST03	581-631

Large Video Measuring Machine 4

The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
