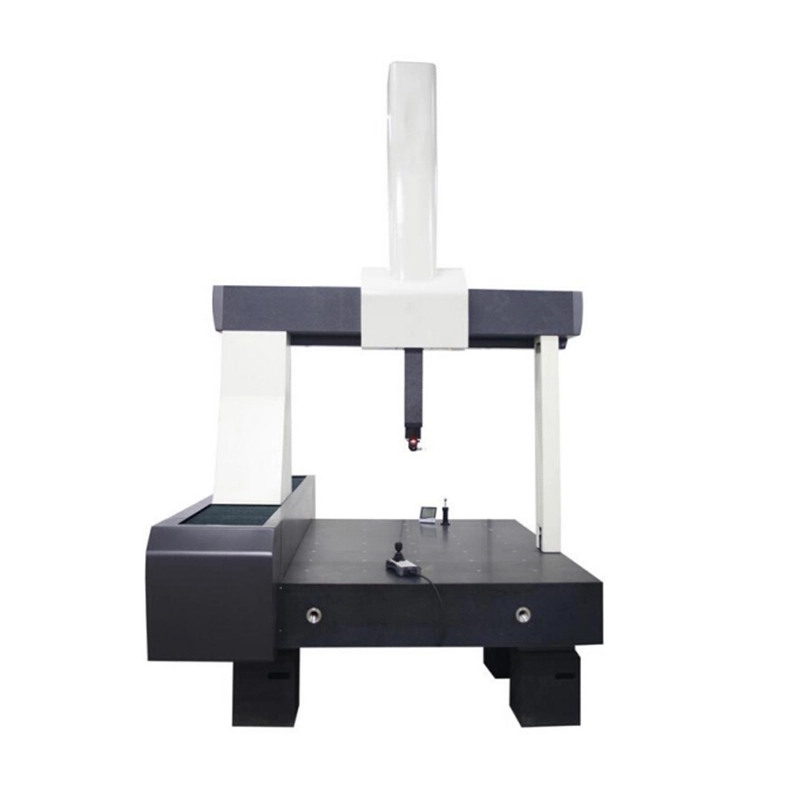

HD- NC12108 3D coordinates measuring machine
GENERL SPECIFICATIONS
Packaging Dimensions: (W*D*H) 2525*1930*2680MM
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed) Gross Weight: 2900kg
HS Code: 130830001
STANDARD FEATURES:
Measuring Range | X:1000 | Y:1200 | Z:800 |
Max. Workpiece Weight | 1500KG | ||
MPEe(µm) | 3.2 + L/250 | ||
MPEp | 3.3 µm | ||
Scale resolution | 0.5µm | ||
Maximum Movement speed (mm/s) | 430 | ||
Net Weight | 2800kg | ||
Dimension(L*W*H) mm | 2495*1902*3093 | ||
LIST OF SPARE PARTS:
Name | Configuration | Specifications and Instructions | Quantity | ||||
Mainframe system | Mainframe | FLY12108 | 1 Set | ||||
Control System |
NOVA Control System | Control Cabinet | 1 Piece | ||||
Operating Handle | 1 Piece | ||||||
Control cabinet measuring software system |
Visual DMIS CNC CAD + Measuring Software | Visual DMIS CNC CAD+ Measuring Software CD(Windows Operation System） |
1 Piece | ||||
Software Lock | Visual DMIS CNC CAD+ measuring software Lock |
1 Piece | |||||
Measuring Software Operation Manual + Visual DMIS CNC CAD | 1 Piece | ||||||
Computer System |
Mainframe | Intel Dicaryon 3.0GHZ,Internal Storage 2 GB， Hard Disk 500 GB，16 DVD-ROM CD-ROM， Display Card 1G,19 widescreen LCD screens（Not under this configuration） |
1 Set | ||||
Operating System | WINDOWS | ||||||
1Set | |||||||
Printer | HP ink-jet printer | 1 Set | |||||
Chair and Table | Special Chair and Table for Computer | 1 Set | |||||
Measuring Head & Measuring Needle System | Measuring head block | MH20i | 1 Piece | ||||
The standard load module | TP20 | 1 Piece | |||||
Measuring Needle group | RENISHAW The 3rd Measuring Needle Component |
1 Set | |||||
Calibration Ball | Ф20 | 1 Piece | |||||
universal ball joint | 1 Piece | ||||||
Probe System
RENISHAW MH20i (Manual double probe) |
| 1 Piece |
Dividing Spindle A：0°～90°Step itch：15° | ||
Dividing Spindle B：±180° Step itch：15° | ||
Spatial Measurement Direction : 168 个 | ||
Positioning Repeatability：1.5μm | ||
RENISHAW The Standard Load Module | 1 Piece | |
RENISHAW The 3rd Measuring Needle Component | ||
Testing Needle -5000-7804 PS27R (φ2.5×20/14) | 4 Piece | |
Testing Needle -5000-3604 PS1R (φ3.0×10/7.5) | 1 Piece | |
Testing Needle -5000-4161 PS17R (φ4.0×20/20) | 1 Piece | |
Testing Needle Extension Rod A-5004-7586（20mm） | 1 Piece | |
Testing Needle Extension Rod -5004-7611（40mm） | 1 Piece | |
Central of Testing Needle A-5000-3627 SC2 | 1 Piece | |
Testing Needle Tools A-5004-7582 | 1 Piece | |
Calibration Ball (Ceramics) φ20mm | 1 Piece | |
Universal Ball Joint | 1 Piece | |
